Connecting External Devices to VME Option Boards
Table 4–7 VSC/3i External Connector Cables
Interface Type Connectors
RS–232–C DB25 to DB25
RS–449 DB25 to DB37
RS–530 DB25 to DB25
V.35 DB25 to V.35
X.21 DB25 to DB15
When you have selected the correct cable, align the connector pins and D-shaped
bevels before gently pushing the cable's DB25 connector onto the synchronous board
connector. Align the two captive connector screws as shown in Figure 4–28, and
then tighten them securely.
Captive screws
Console cable
(side view)

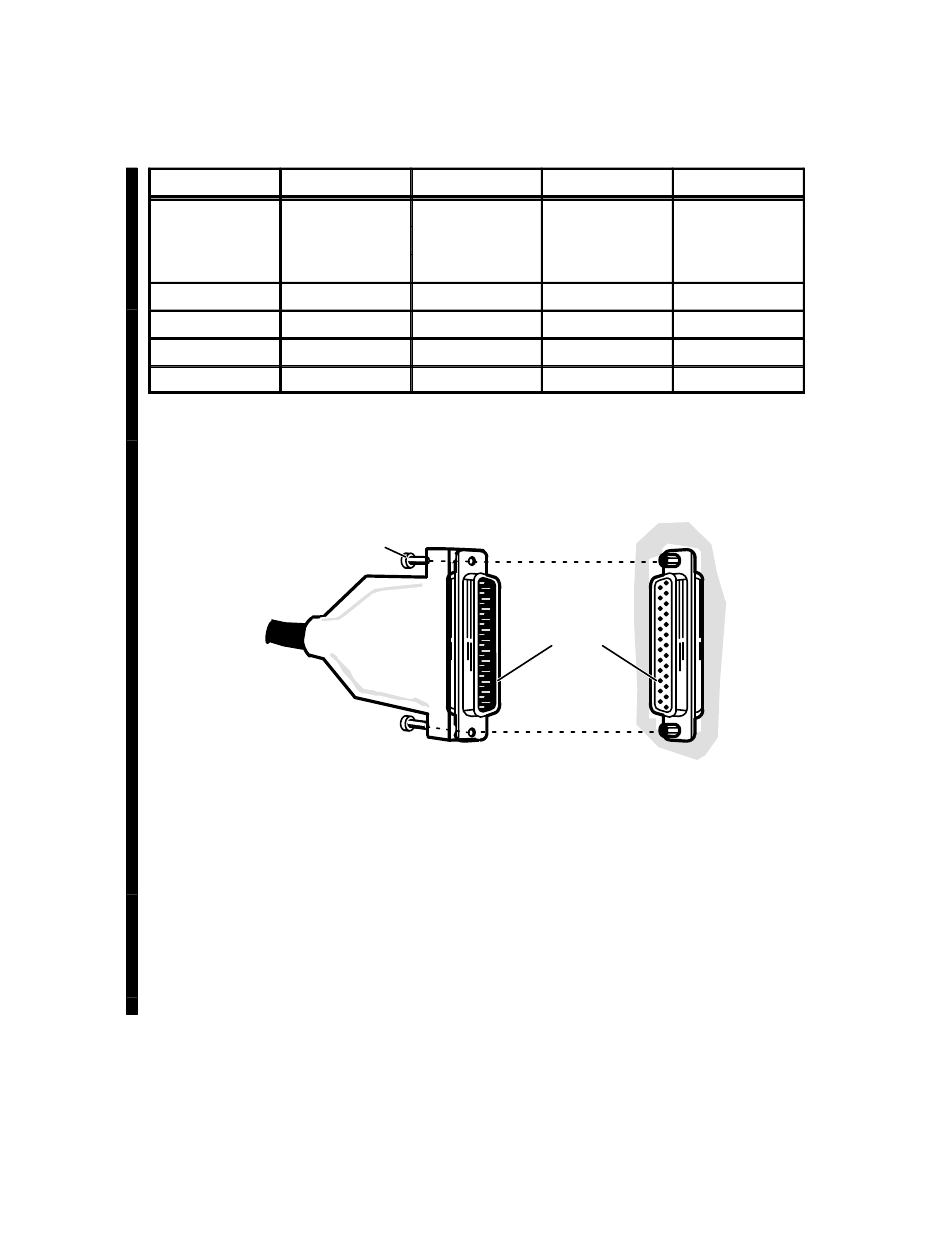

Figure 4–28 Plugging a DB25 Connector Into a VSC/3i Connector
If you haven't already connected the remote end of the cable to your synchronous
device, do so now. Refer to the device-specific documentation for your option, if
necessary. Then continue with the next section that applies to your system.
When you finish connecting all external devices to your VME option board(s), refer
to your starting manual for instructions on powering up your system. You should
then refer to your operating system and communications software documentation for
instructions on what to do after booting or rebooting your system hardware.
4-24
Model Number Part Number
15290E006 005–32917
15290E015 005–32918
15290E025 005–32919
15408E015 005–39805
15409E015 005–39804
15410E015 005–39806
15411E015 005–39800
Connector pins
1–25
Cable connector (male)
Length (m)
1.7 (6 ft)
4.5 (15 ft)
7.6 (25 ft)
4.5 (15 ft)
4.5 (15 ft)
4.5 (15 ft)
4.5 (15 ft)
VSC/3i connector
(female)
