Installing and Removing VME Option Boards
Board
ejectors
8. Pull the board straight out of the card cage, pulling gently by the handles. Do
not pull from side to side or otherwise risk bending or breaking the connector
pins.
9. Lay the removed board on a static-free mat or bag.
10. Install a replacement board as described in the next section, or install a cover
plate over the cage opening by inserting and tightening the securing screws.
Use Figure 3–4 if necessary for reference.
CAUTION: Never run the computer without an air dam or cover plate over every
empty slot.

Installing Boards in the VME Card Cage

To install a VME option board, follow these instructions:
1. Set up an ESD kit.
2. Shut down your operating system; then turn off your computer system power.
Refer to your expanding and/or maintaining manual(s) for instructions, if
necessary.
3. Remove the existing board or cover plate as described in the preceding section.
Make certain that you save the plate and screws; you may need them later.
3-8
Device connectors
Computer chassis — side view

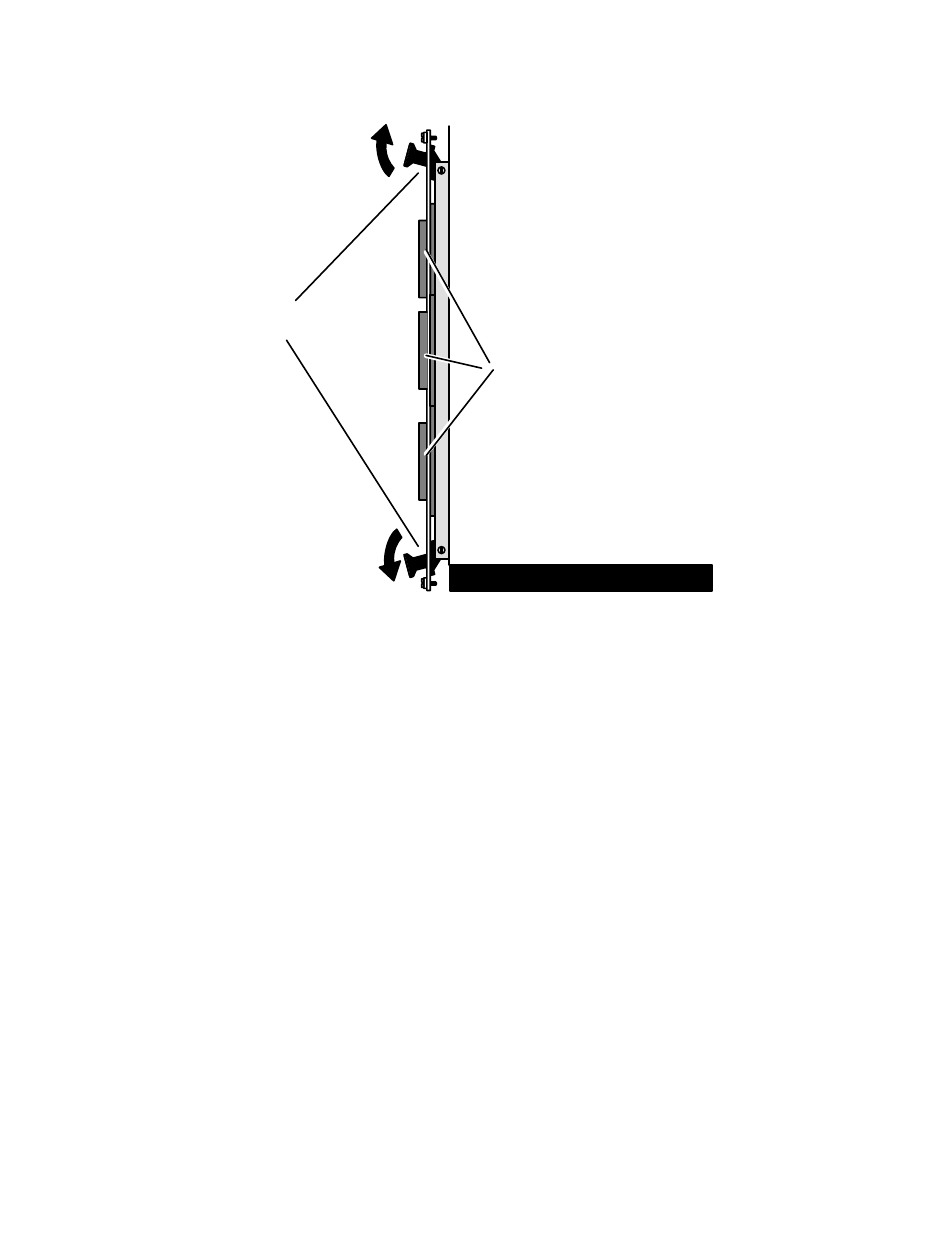

Figure 3–9 Releasing an Option Board
014–001867
