Configuring VME Option Boards
Figure 2–8 shows the location of the jumpers on the VSC/3i board. For further
information on the VSC/3i board, refer to the manual Setting Up and Installing
Model 7428 VME Synchronous Controllers (VSC/3i) in AViiON Systems.
For software requirements and dependencies on either the VSC/3 or VSC/3i board,
refer to the documentation for the synchronous software products you plan to
install. Once you have installed the board jumpers, follow the directions in
Chapter 3 to install the board into the card cage.
VSC/3
The jumper configuration
shown on the right is for board
position 0 and for DG/UX
revision 5.4.2 or later. To
configure for other board
positions or for other revisions
of the operating system, refer
to the tables that follow.

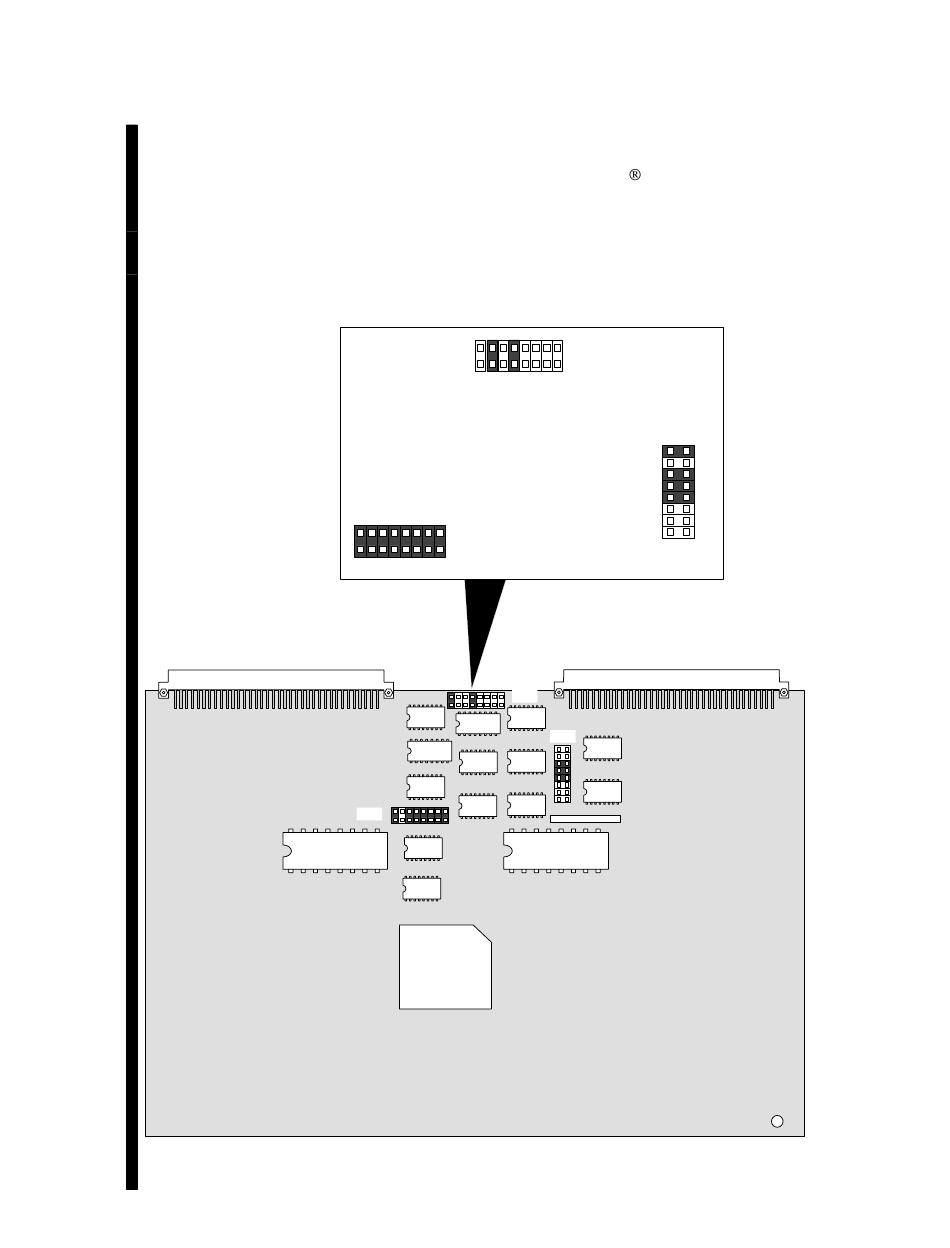

Figure 2–7 VSC/3 Board Jumper Locations
2-22
1
W37
1
W43
W37
W43
W55
1
W55
014–001867
