Configuring VME Option Boards
VDA128
The jumper configuration shown on
the right is for board position 0 and
for DG/UX revision 5.4.2 or later.
To configure for other board posi-
tions or other revisions of the oper-
ating system, refer to the tables
that follow.
E29
E30
E31
E32

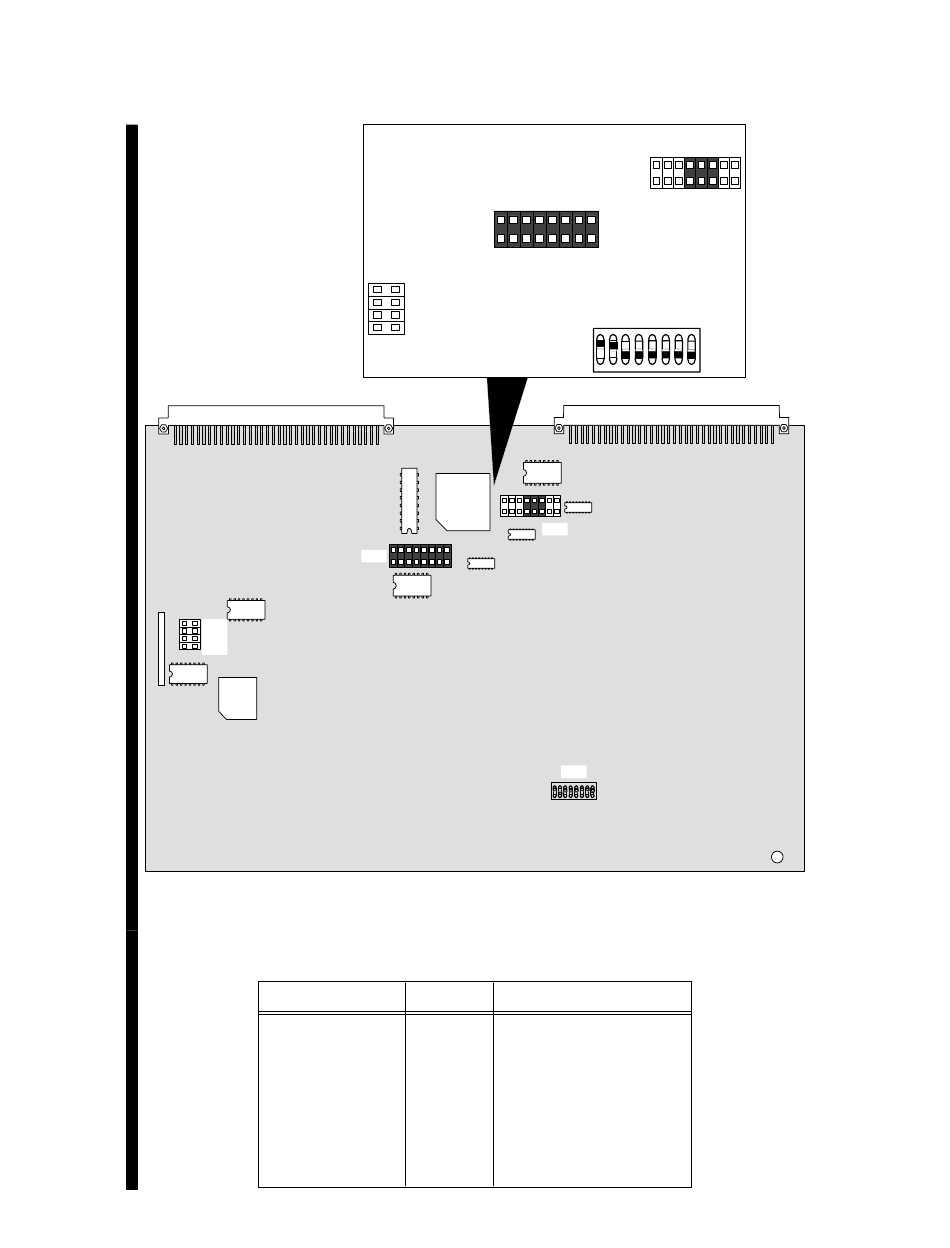

Figure 2–4 VDA/128 Board Jumper and Switch Locations
Table 2–5 SW1 Switch-Pack Settings for VDA/128 Boards (All Board Positions)
Switch
SW1
2-10
1
E29
E30
E31
E32
E15
No. Setting Function
1 On Reserved
2 On Self test
3 Off Self test
4 Off Self test
5 Off Self test
6 Off Reserved
7 Off Long word transfer
8 Off Reserved
E19
E15
1
1 SW1
8
ON
E19
SW1
014–001867
