Installing and Removing VME Option Boards
Air dam with
ejector handles
VME option board
connectors and
air dam
Floor stand
3–Slot VMEbus options
card cage (2 user slots)
Figure 3–2 Rear View of Typical AViiON Computer Systems
A backplane printed circuit board attaches to the rear of the card cage (as viewed
from the rear of the unit) and contains two connectors (J1 and J2) for each board
slot. Figure 3–3 shows a card cage layout with the guide rails and backplane
connectors for two VME option boards. A system supporting more option boards has
a similar layout, but differs in size of cage, backplane, and number of guide rails and
connectors. Appendix A lists the J1 and J2 bus signals.
3-2
Eurocard 6U
board

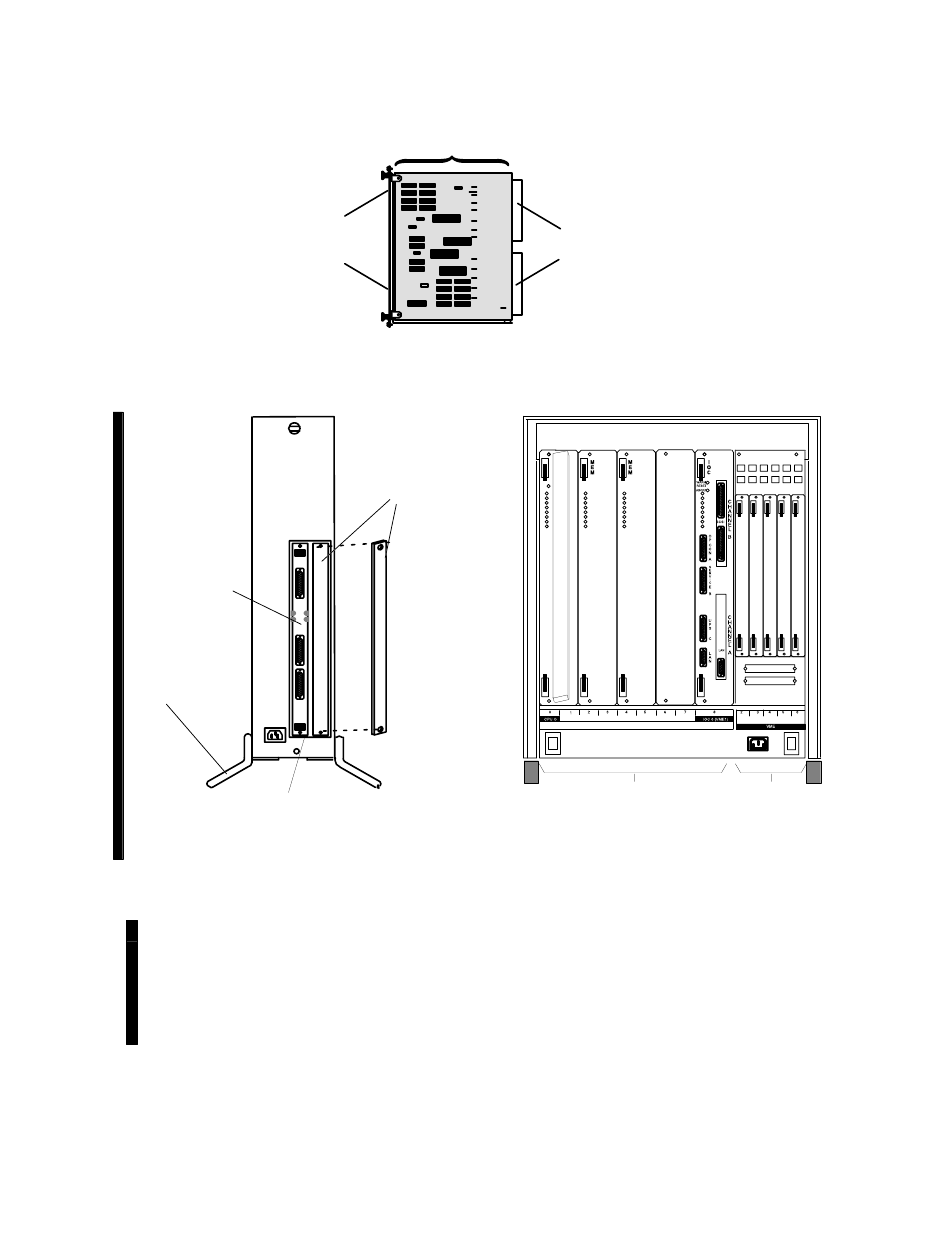

Figure 3–1 Typical VME Board Assembly
Cover plate over
empty slot
J1 and J2 connectors
to VME backplane
Computer 6–Slot VMEbus
logic section options card cage
(5 user slots)
014–001867
