Connecting External Devices to VME Option Boards
5-ft cable
to J-box
Rear of computer

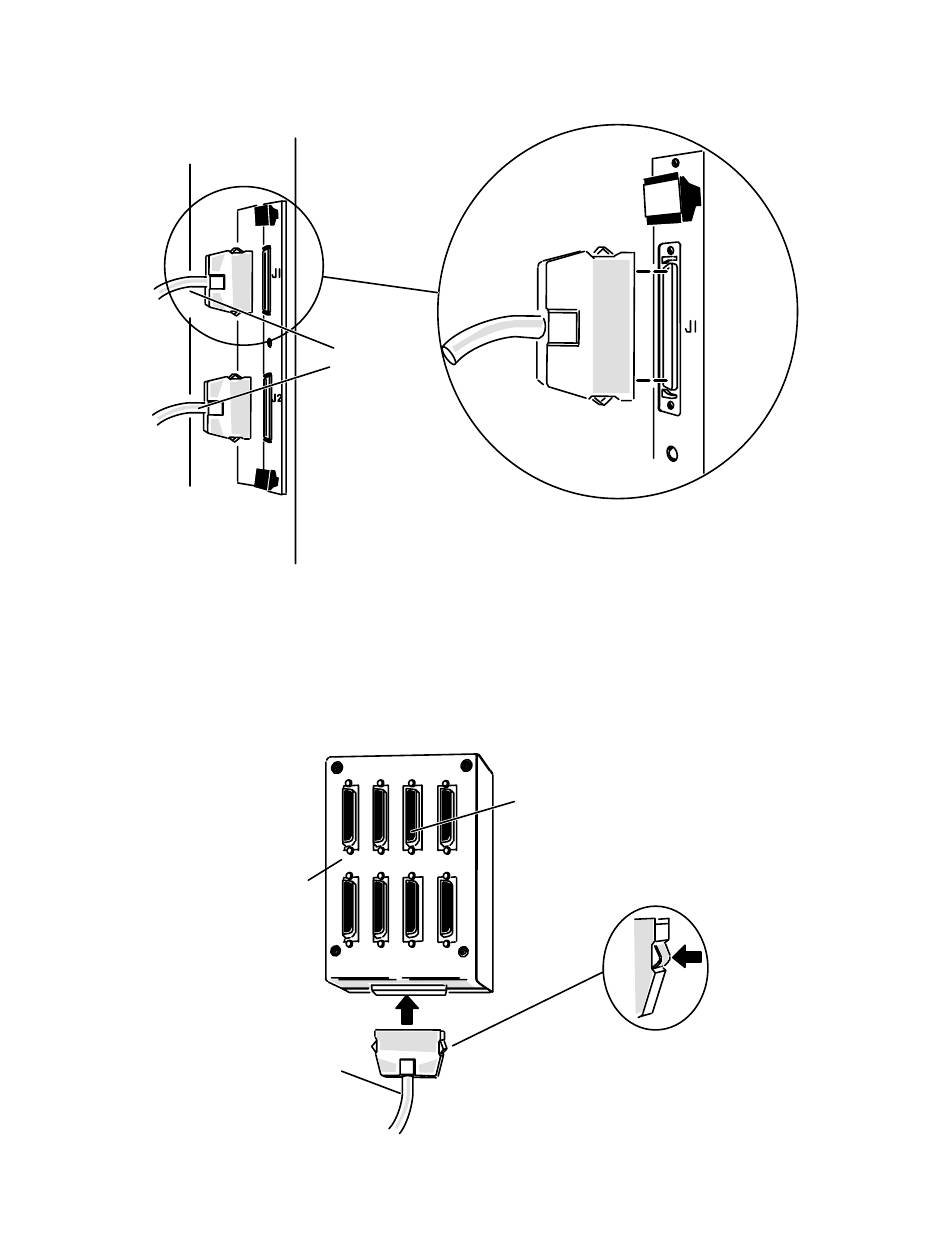

Figure 4–3 Plugging VAC/16 Controller Connectors to J-Box Cables
To remove a VAC/16 assembly cable, release the connection by simply squeezing the
clips at either side of the cable connector, as shown in Figure 4–4. With the
connector released, gently pull the cable straight out.
Asynchronous
device connectors
J-box
Cable connector release clip
5-ft cable
to rear of computer
Figure 4–4 Plugging Together J-Box Connectors
4-5
014–001867
