Special Instructions for Model-Specific VME Hardware
10. Secure the J-box base to the mounting surface by firmly installing all four
mounting screws as shown in Figure D–17.

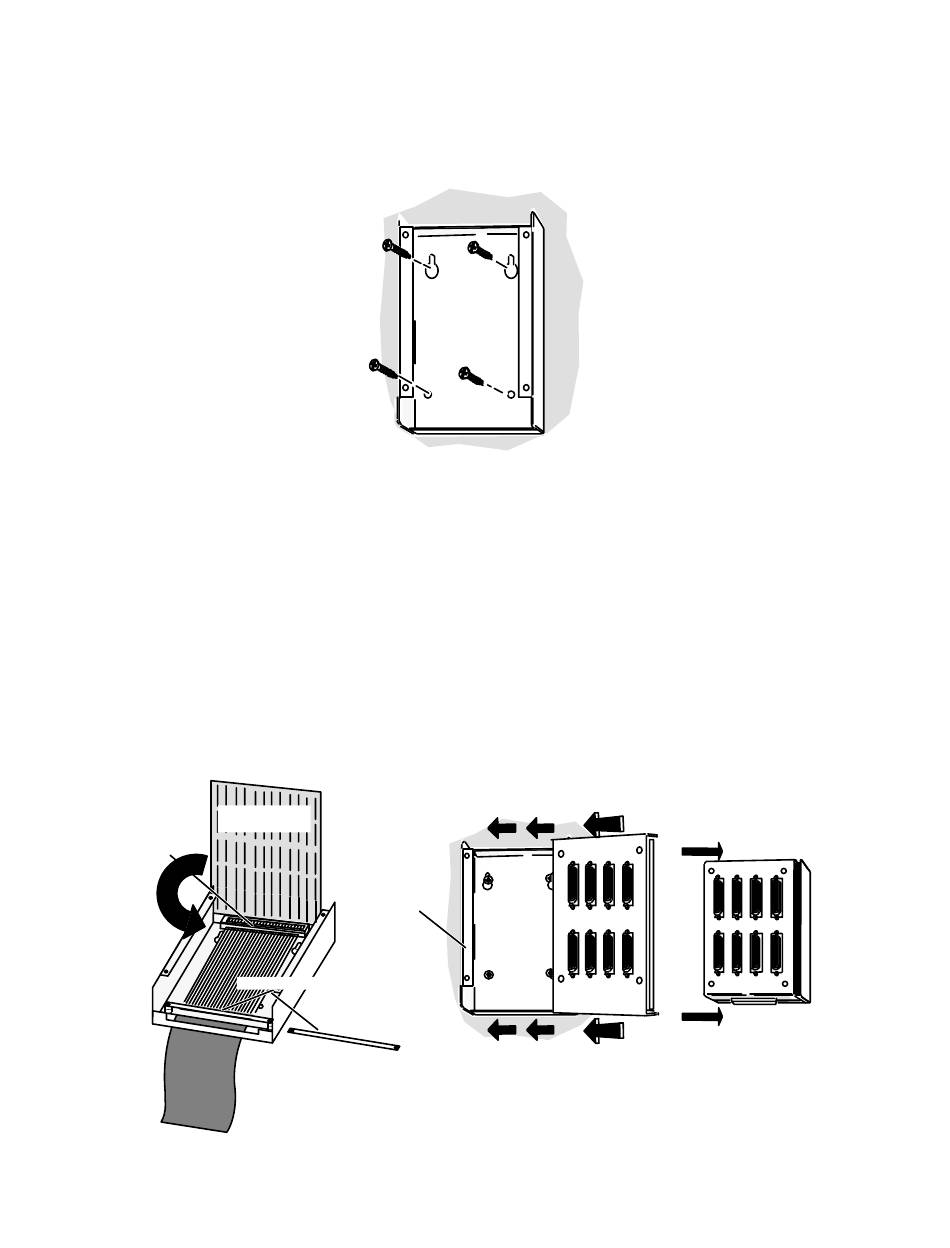

Figure D–17 Securing a VAC/16 Junction Box
11. To reassemble a Model 7411–K J-box, refer to Figure D–18 as you place the
ribbon cable and connector assembly back into the J-box base. Reinstall the
cable tension bar at the point marked by your tape or paper clip, close the J-box,
and secure the four corner screws.
To reassemble a Model 7411–KA J-box, refer to Figure D–18 as you slide the top
(connector) assembly sideways to fit under the flange on one side (A). Pull the
top slightly back until the printed circuit board fits under both side flanges, and
the sheet metal covering is flush on both flanges (B). Secure the four corner
screws.
Printed-circuit
board
Cable
connector
Cable tension bar
Model 7411–K
Junction Box
Figure D–18 Reassembling a VAC/16 Junction Box
D-14
Flange
(A)
(B)
Model 7411–KA
Junction Box
014–001867
