Put the conductor within the jaws on intersection of the indicated marks as much as
possible (see Fig. 2) in order to meet the meter accuracy specifications)

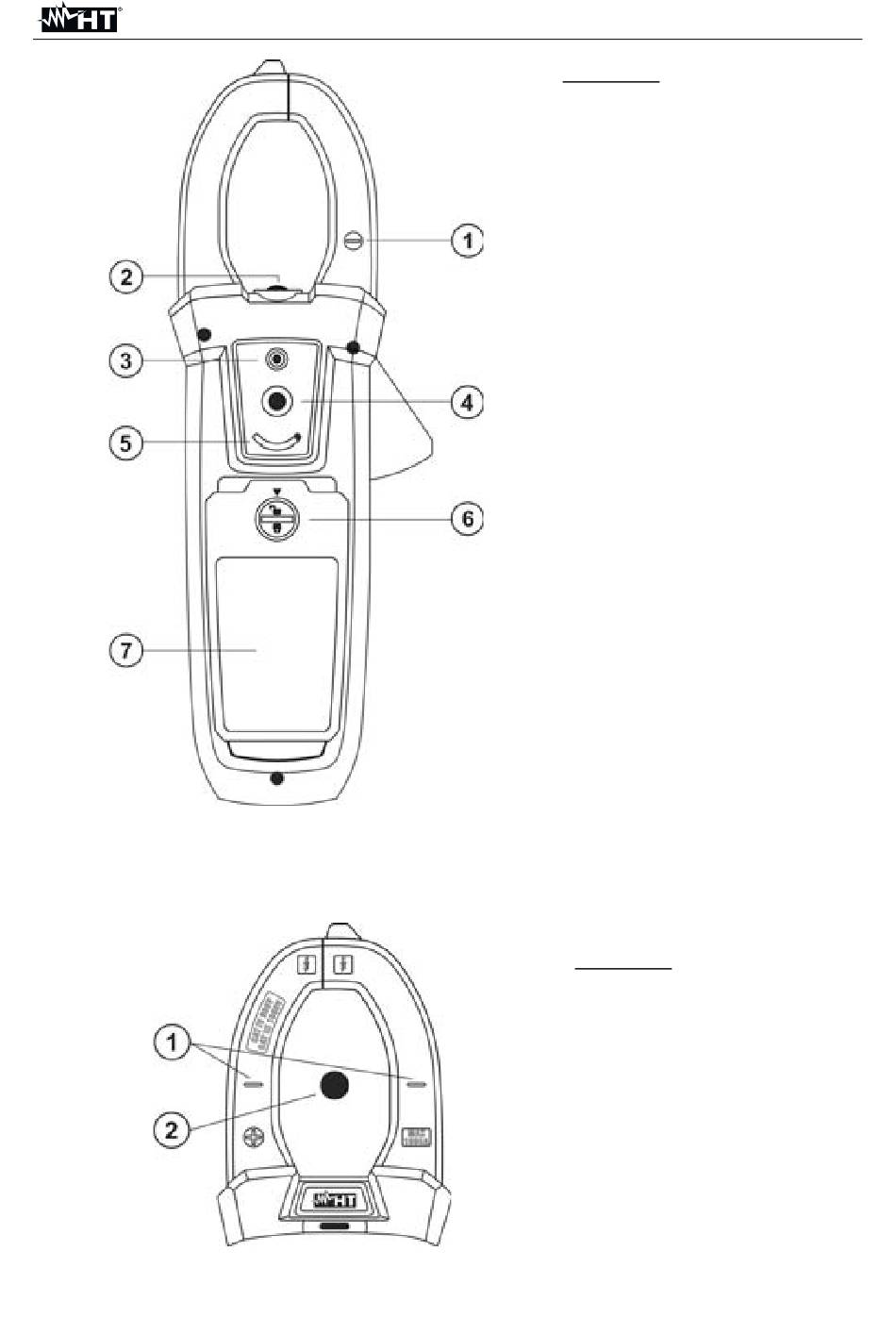

Fig. 2: Description of the instrument
Fig. 3: Alignment marks
EN - 8
ECLIPSE - HT9025
CAPTION:
1. DC Current negative
polarity
2. White LED illuminator
3. Laser pointer (ECLIPSE)
4. Thermal camera
(ECLIPSE)
5. Lens protection selector
(ECLIPSE)
6. Battery cover fastening
screw
7. Battery cover
s back
'
CAPTION:
1. Alignment marks
2. Conductor
lens
