4.3.

DESCRIPTION OF INTERNAL FUNCTIONS

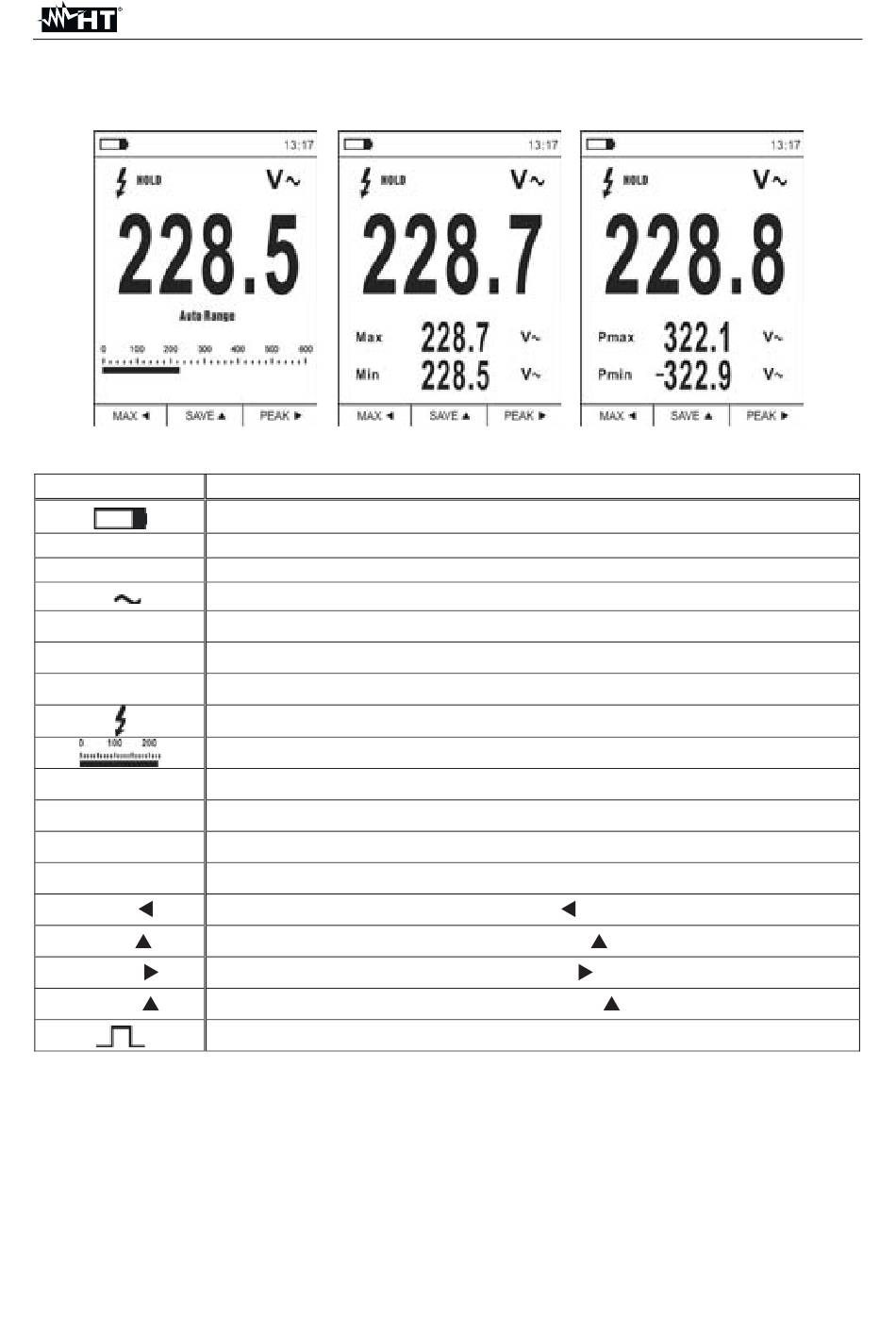

4.3.1. Description of the display, Multimeter section

Fig. 4: Description of the symbols shown on the display
Symbol
13.17
HOLD
V
228.5
Auto Range
Manual Range
Max
Min
Pmax
Pmin
MAX
REL
PEAK
SAVE
Indication of battery charge level
Indication of the system's current time
Indication of active Data HOLD function
Indication of currently selected function
Indication of measured value
Indication of active Autorange function
Indication of active Manual Range function
Indication of presence of high voltage
Indication of analogue bargraph
Indication of maximum value of measured quantity
Indication of minimum value of measured quantity
Indication of maximum peak value of measured quantity
Indication of minimum peak value of measured quantity
Activation of MAX/MIN with arrow key
Activation of REL function with arrow key
Activation of Pmax/Pmin with arrow key
Activation of image storage with arrow key
Activation of duty cycle test
