4.3.2. Description of the display, Thermal camera section (ECLIPSE)

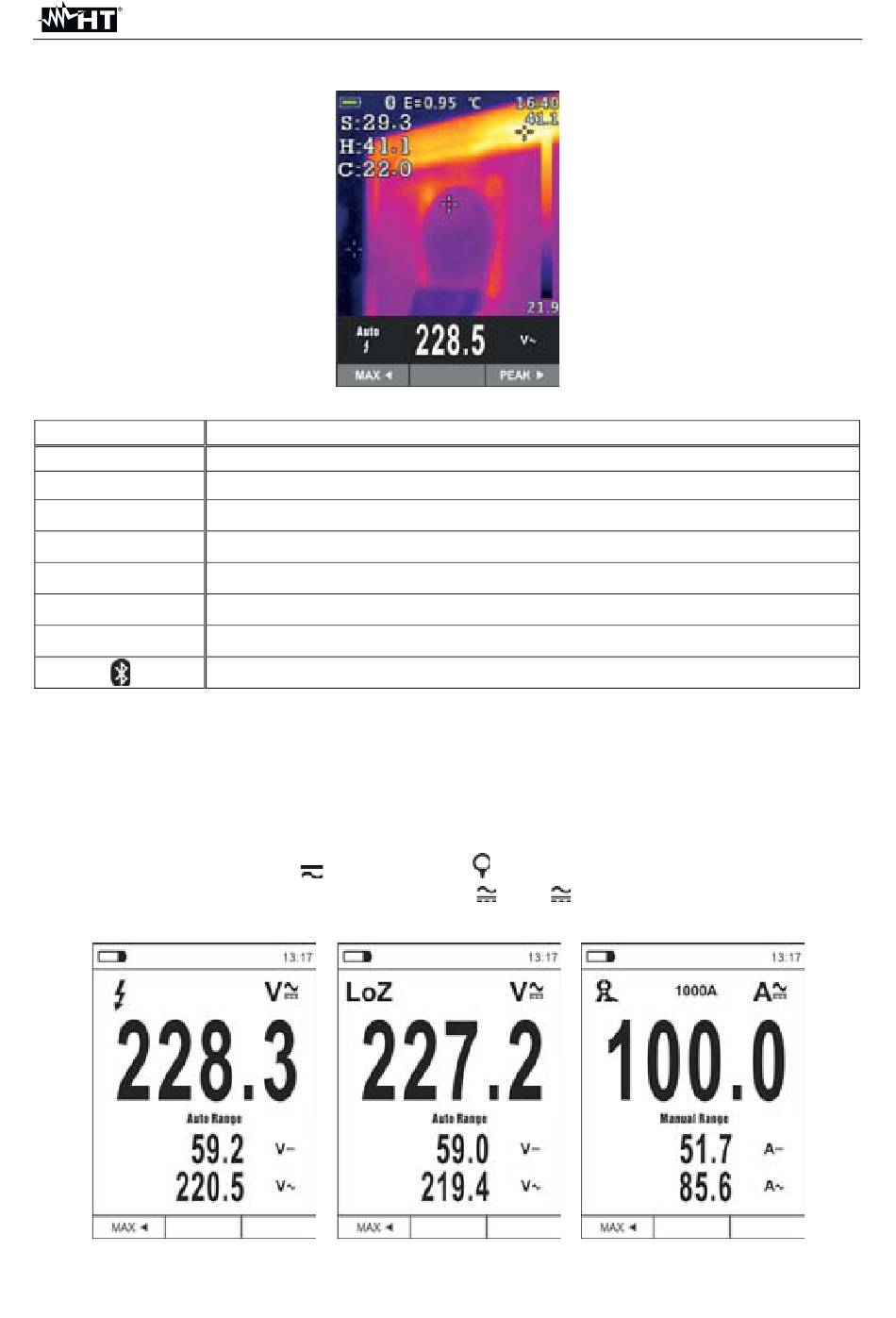

Fig. 5: Description of the symbols shown on the display
Symbol
E=0.95
°C
S
H
C
21.9, 41.1
Palette

4.3.3. AC+DC current and voltage measurement

The instrument is capable of measuring a possible presence of overlapping alternating
components on a generic direct waveform (voltage or current). This can be useful when
measuring typical impulsive signals of non-linear loads (e.g. welding machines, electric
ovens, etc.).
1. Select positions VAC+DC
2. Press key MODE/VFD by selecting modes
3. Follow the operating instructions shown in § 5.1 or § 5.9
Fig. 6: Description of AC+DC Voltage and Current measurement
Set value of object emissivity (see § 4.3.10)
Indication of the temperature measuring unit
Indication of the temperature associated with the central steady cursor
Indication of the temperature of the hottest spot (Hot) of the image
Indication of the temperature of the coldest spot (Cold) of the image
Indication of temperature levels of the IR image
Indication of color palette (see § 4.3.10)
Indication of active Bluetooth connection (see § 5.15)
, LoZAC+DC or
Description
(standard clamp)
V or A (see Fig. 6).
" " " "
