5.10. AC CURRENT MEASUREMENT

Make sure that all the test leads are disconnected from the meter terminals
for current measurement.

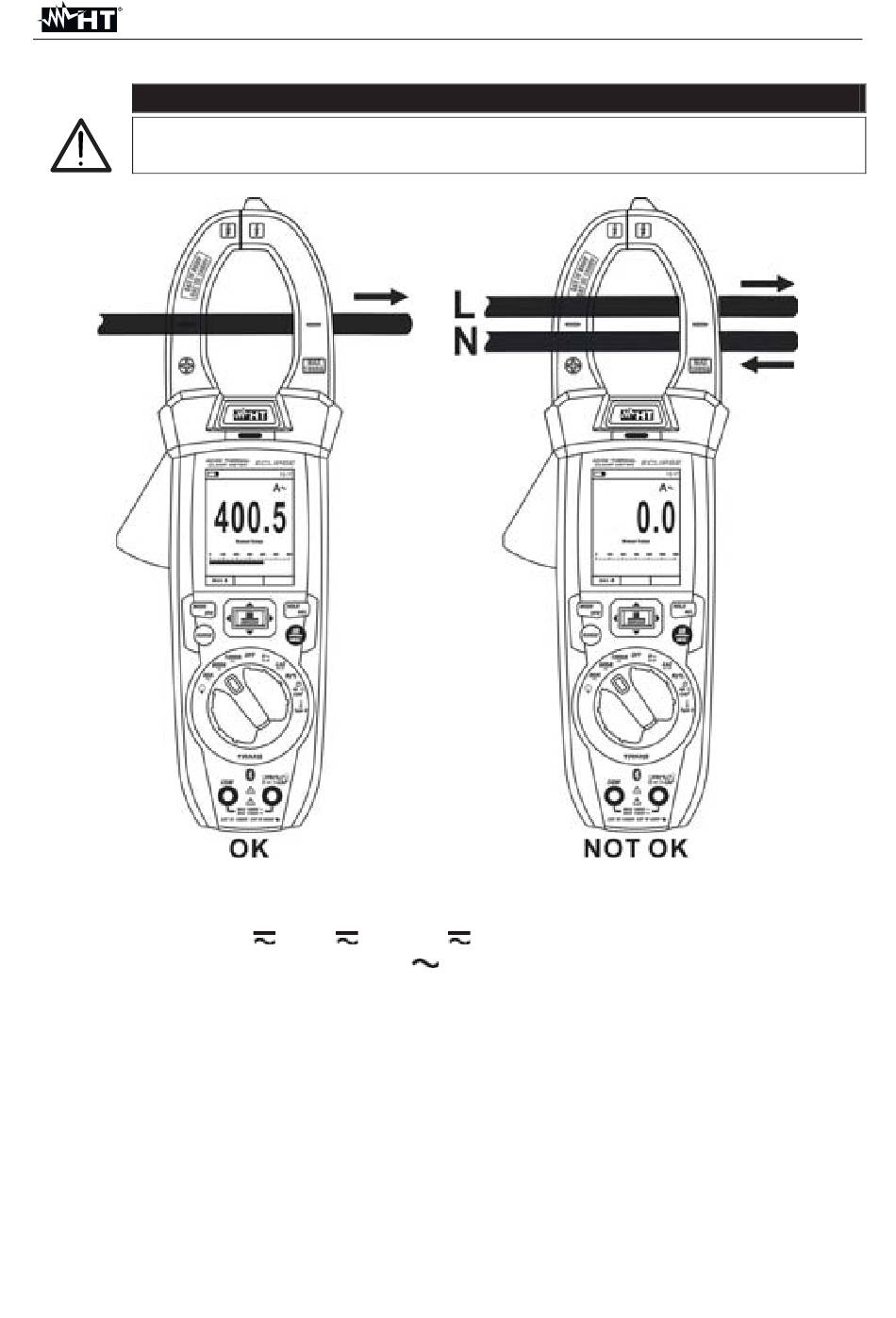

Fig. 32: Use of the instrument for AC current measurement
1. Select positions 60A
2. Press the MODE/VFD key to select
3. Put the conductor to be tested inside to the center of clamp jaw (see Fig. 32) in order to
perform accurated measurements. Consider the notches on jaws as reference (see
Fig. 3)
4. The display shows the value of current.
5. If the display shows the message
reached.
6. To use the HOLD function, see § 4.2
7. To use the internal functions, see § 4.3
8. To save the measured result, see § 4.3.4
CAUTION
, 600A or 1000A
A
" "
OL , the maximum measurable value has been
" "
EN - 30
measurement
ECLIPSE - HT9025
