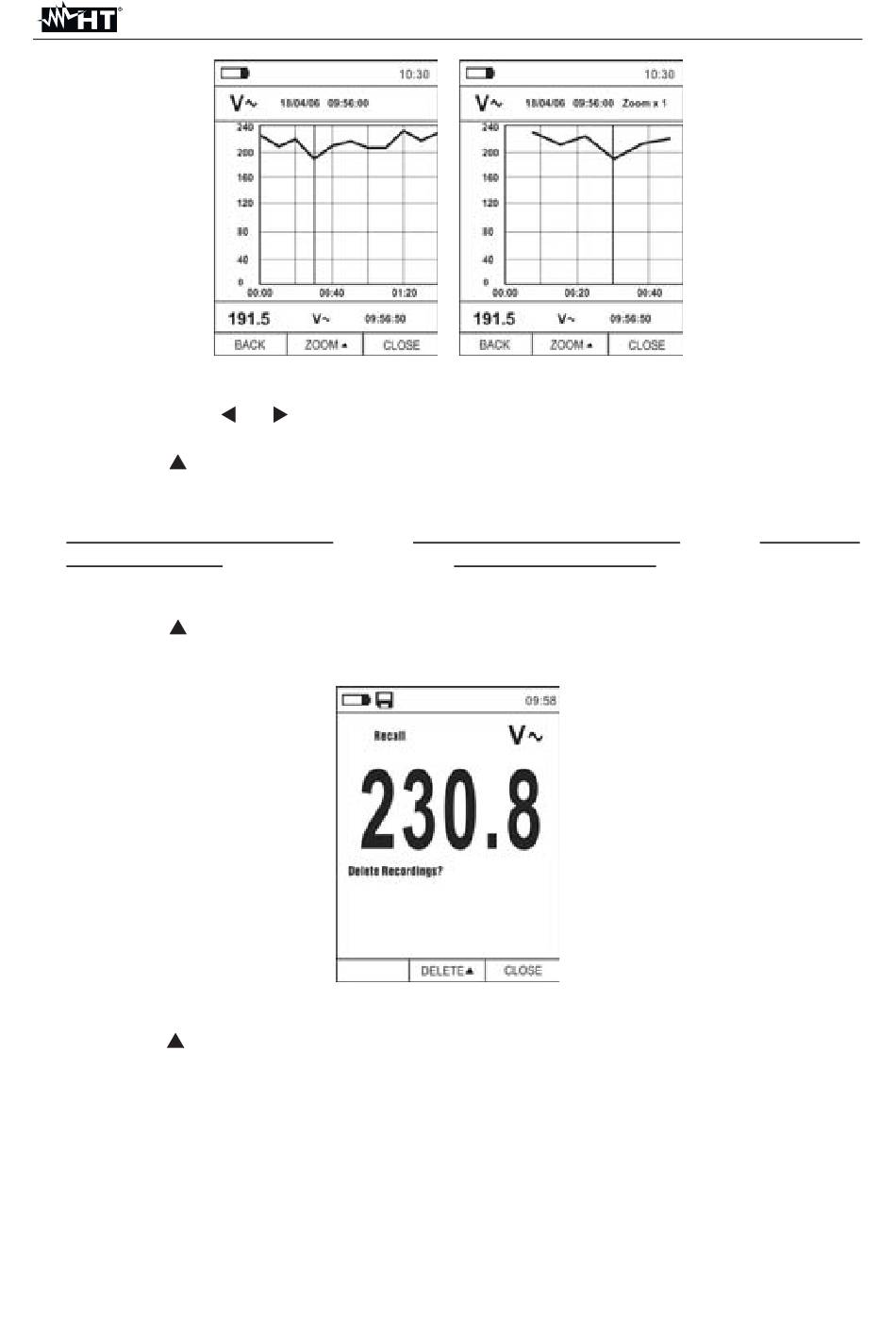

Fig. 39: Data logger function
18. Use arrow keys
sampled data and at the relevant sampling moment at the bottom of the display.
19. Press key (ZOOM) to activate (if available) the Zoom of the values on the graph
(see Fig. 39
–
which Y = max zoom dimension appears at the top of the display. You can zoom X1 for
at least 10 measuring points, X2 for at least 20 measuring points, X3 for at least 40
measuring points and so on, for maximum 6 zooming operations.
20. Press key MODE/VFD (TREND) to go back to the previous screen, or key HOLD/REL
to go back to the normal measuring screen.
21. Press key (CANC.) to delete the recalled recording. The following screen and the
message Delete recording?
"
22. Press key (CANC.) again to confirm operation or key HOLD/REL to go back to the
normal measuring screen.
or to move the cursor on the graph, looking at the value of the
right side) in order to increase resolution. The indication
appears on the display.
"
Fig. 40: Data logger function
Display of recording graph
–
Deleting recorded data
–
