4.7.2 Zone Screen

The webpage's Zone screen (below) displays the eight possible zones simultaneously. If an alarm condition
occurs the user will be able to quickly see in what zone the situation is occurring. Each active zone is
divided into alarm levels which are green until an alarm is present. Inactive zones and alarm levels are
grayed out. If an alarm should occur, the zone name field will flash and the corresponding box in the
assigned zone will turn the color of the alarm that is present or alternate if two different colors are
present. Once the alarm has been acknowledged the name field will stop flashing.
To display all the channels included in any zone, use the mouse to click that zone box. The System screen
will appear with all the channels that are included in the selected zone displayed in color and the channels
that are not in the selected zone dimmed.
The zone screen is updated automatically every 15 seconds.
UM-1097
Revision B

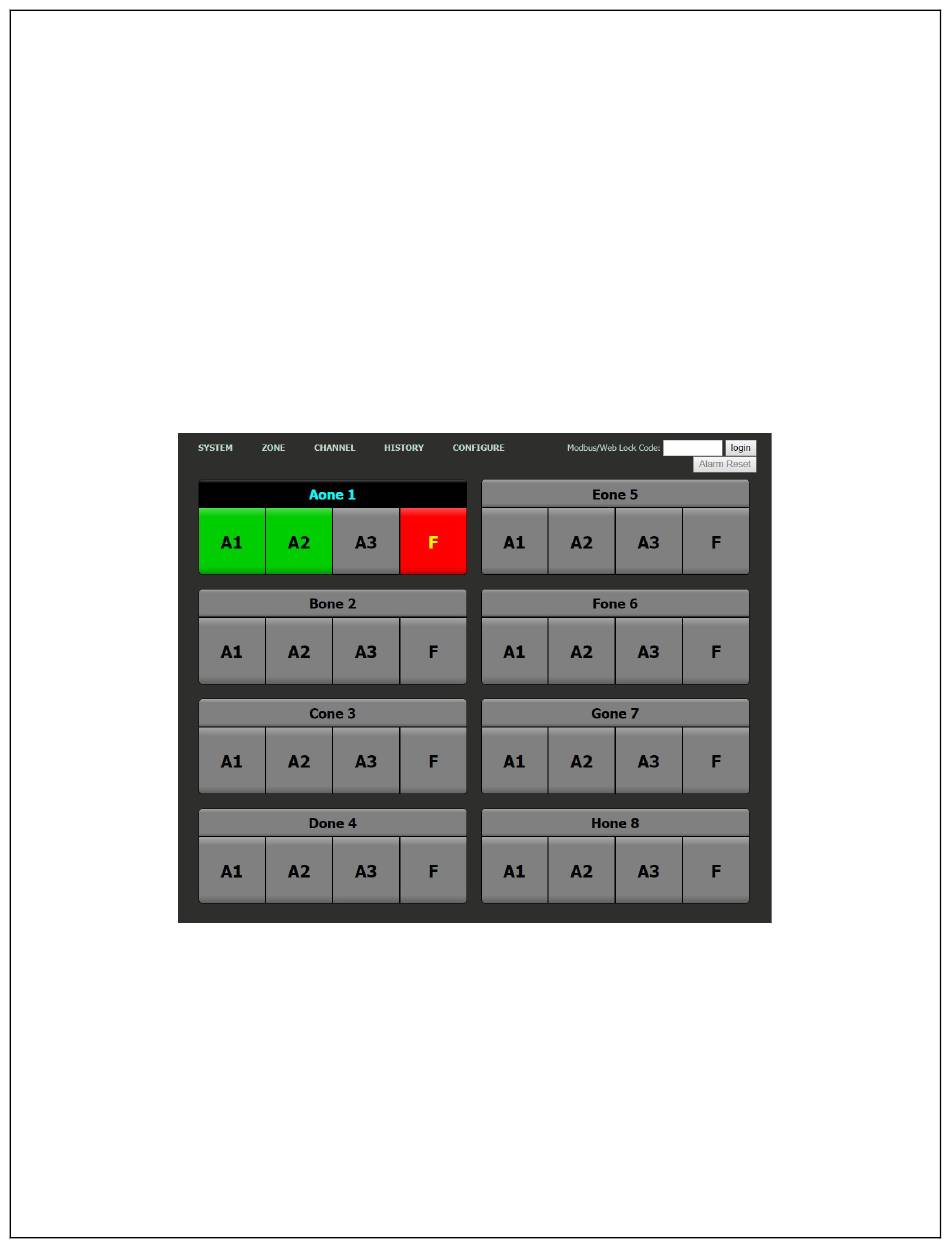

Figure 41 Webpage Zone Screen
