Figure 4 Optional 150W 24Vdc Power Supply Dimensions; Figure 5 Optional 600W 24Vdc Power Supply Dimensions - RC Systems ViewSmart 1600+ Operation Manual

3.2.2.2 Optional 600 Watt 110-240VAC – 24VDC Power Supply
The ViewSmart 1600+ Controller may be powered from 10-30VDC. However, many applications require
24VDC power for the monitors or transmitters providing inputs to the ViewSmart 1600+. A 600 watt AC /
DC power supply may be included for these applications (115VAC or 230VAC). When ordered from the
factory, it is pre-wired to provide 24VDC primary power for the ViewSmart 1600+ controller as well as any
transmitters or monitors that may be connected by the end user.
UM-1097
Revision B

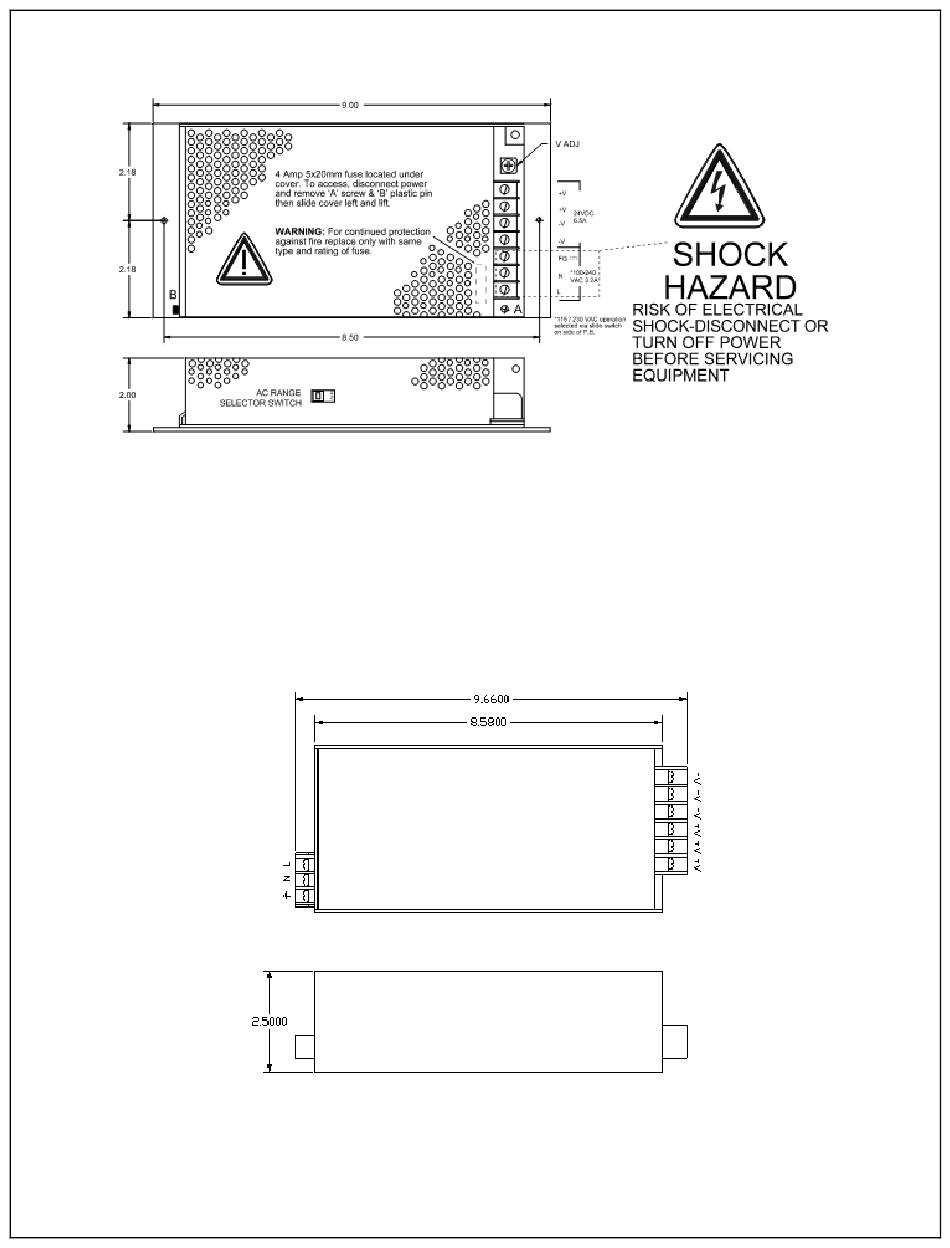

Figure 4 Optional 150W 24VDC Power Supply Dimensions

Figure 5 Optional 600W 24VDC Power Supply Dimensions
