3.1.3 ViewSmart 1600+ Main I/O and Option Board Enclosure Capacities

• 71P-01 Standard NEMA 4X Fiberglass Wall Mount
o 2 Option Boards
o Expansion Plate adds up to 4 Option Boards
•
71P-02 Standard 316 Stainless Steel Wall Mount
o 2 Option Boards
o Expansion Plate adds up to 4 Option Boards
•
71P-03 Cast Aluminum Wall Mount
o 4 Option Boards
o Expansion Plate adds up to 3 Option Boards
•
71P-04 Full 19" Rack Mount (one ViewSmart 1600+)
UM-1097
Revision B

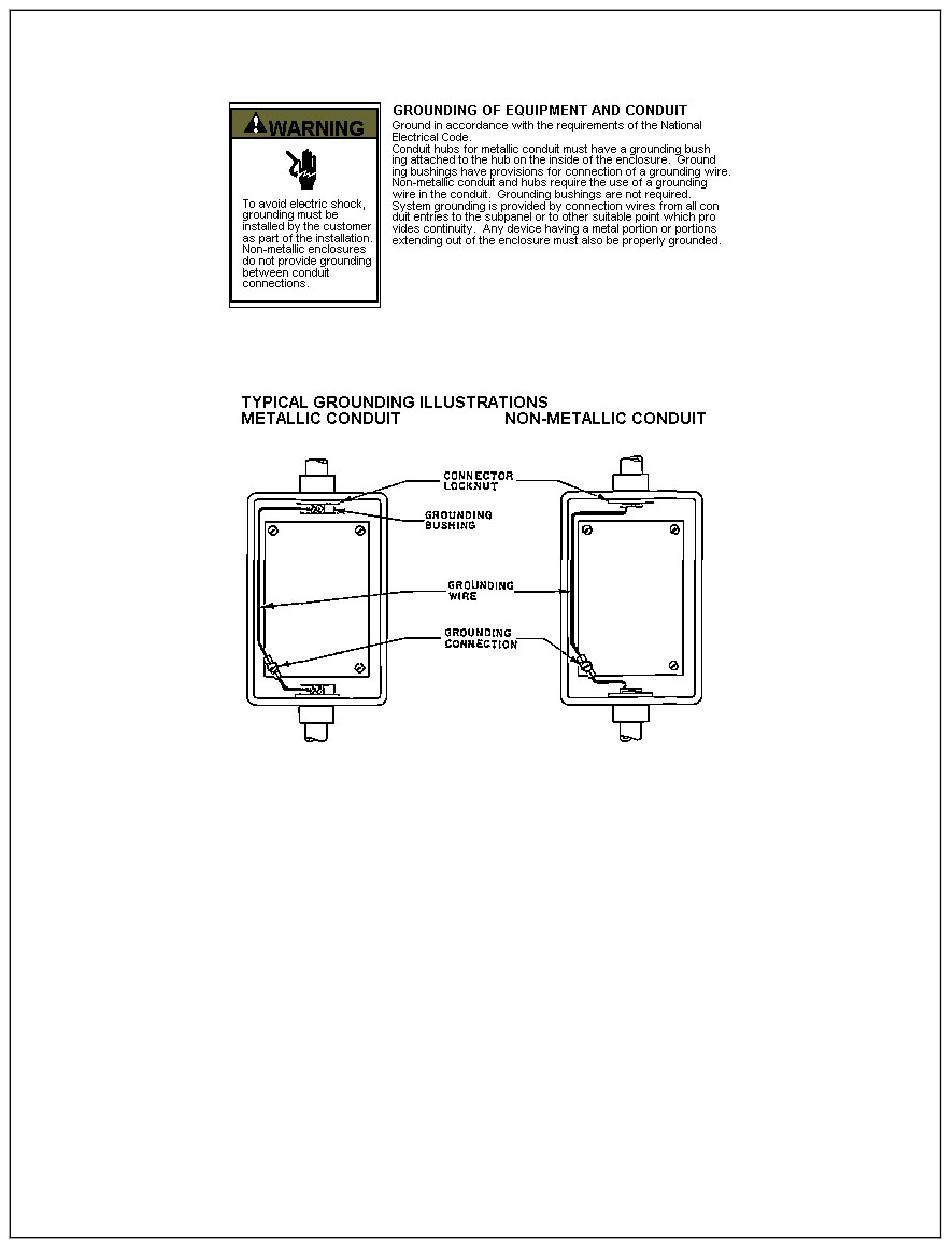

Figure 3 Grounding Instructions for Non-metallic Enclosures
