4.1 Introduction

Swiping a magnetic wand past or pressing the Menu key, from any of the Data Display screens, displays
the Main Menu. In the Main Data Screen Up, Down, Left and Right keys maneuver the selection bar
between the channels and Edit selects the highlighted Channel to enter the Channel Configuration menus.
The Up and Down keys maneuver the selection bar up and down menu items and Edit selects the
highlighted item to enter the sub-menus. All items with a sub-menu are indicated by a right facing arrow
at the end of the line. To edit menu item values, swipe or press the Edit key, and use the Up and Down
keys to edit the value. Once the desired value is entered, swipe the Edit key again to save the value. Swipe
the Next key to reverse out of a sub-menu.
Important: Some values require a Technician Sequence to be entered to change their values. This is to
!
prevent the operator from inadvertently changing the values. When prompted to "Enter technician
sequence:" simply swipe the Up key four times to unlock the value for editing.
All system and channel configuration menu items are also editable from the embedded webpage (Chapter
4.5).

4.2 Security Menu

A password entered in the Security Menu allows locking all menus. Viewing menus is not denied, however,
attempts to edit variables flashes the Locked message on the LCD.
Alarm Outputs
Channel Config
Communication Settings
Security: Unlocked
System
Diagnostics

4.2.1 User Name

Authorized individuals locking the system should first enter a name, phone number, or other contact
information into the 10 digit field so they can be contacted to unlock the unit at a later date.
UM-1097
Revision B
General Operating Instructions
Main Menu
~
~
~
~
~
~

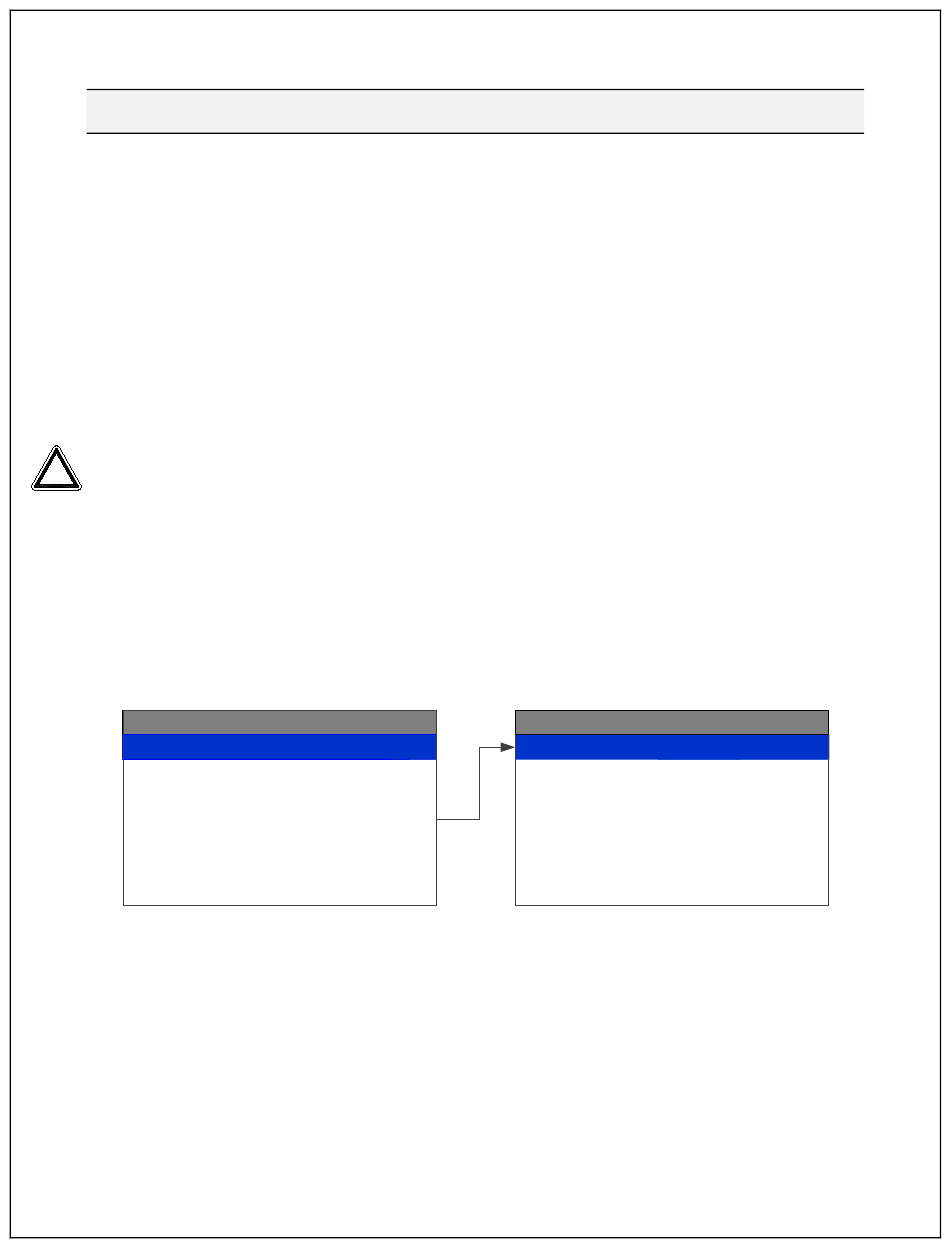

Figure 17 Security Menu
