System Screen; Figure 41 Webpage System Screen - RC Systems ViewSmart 1600+ Operation Manual

4.7.1 System Screen

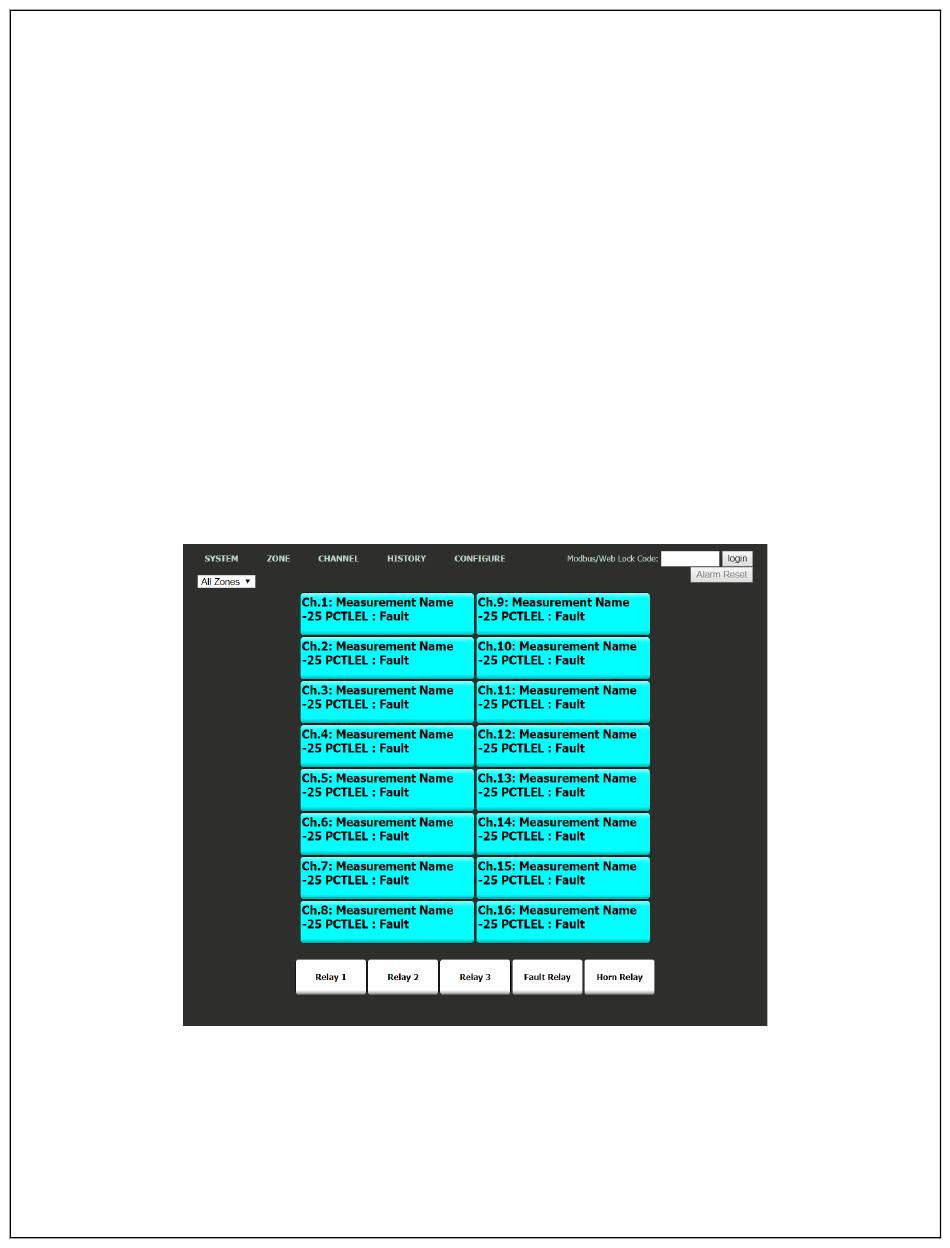

The System screen shown below displays all active channels at once. It is capable of displaying 8 or 16
channels depending on the controller's configuration. This screen, very similar to the Main Data screen,
displays measurement name and uses colored cells that flash with new alarms to indicate alarm
conditions. Once the alarms have been acknowledged by an operator the cell will remain the appropriate
color but will stop flashing, showing the alarm has been acknowledged.
The five standard relays states are shown at the bottom of the screen. The boxes duplicate the LED
behavior as seen when looking at the unit. A flashing box indicates an unacknowledged relay, a red box
indicates an energized (de-energized for failsafe) relay.
While in the System screen, use the mouse to click on any cell to go directly to that channel's individual
data screens. The unused channels are grayed out when turned off.
Viewing only channels belonging to a certain zone can be enabled using the zone drop down box. Selecting
a zone will cause channels belonging to other zones to dim.
The System screen is updated automatically every 15 seconds.
