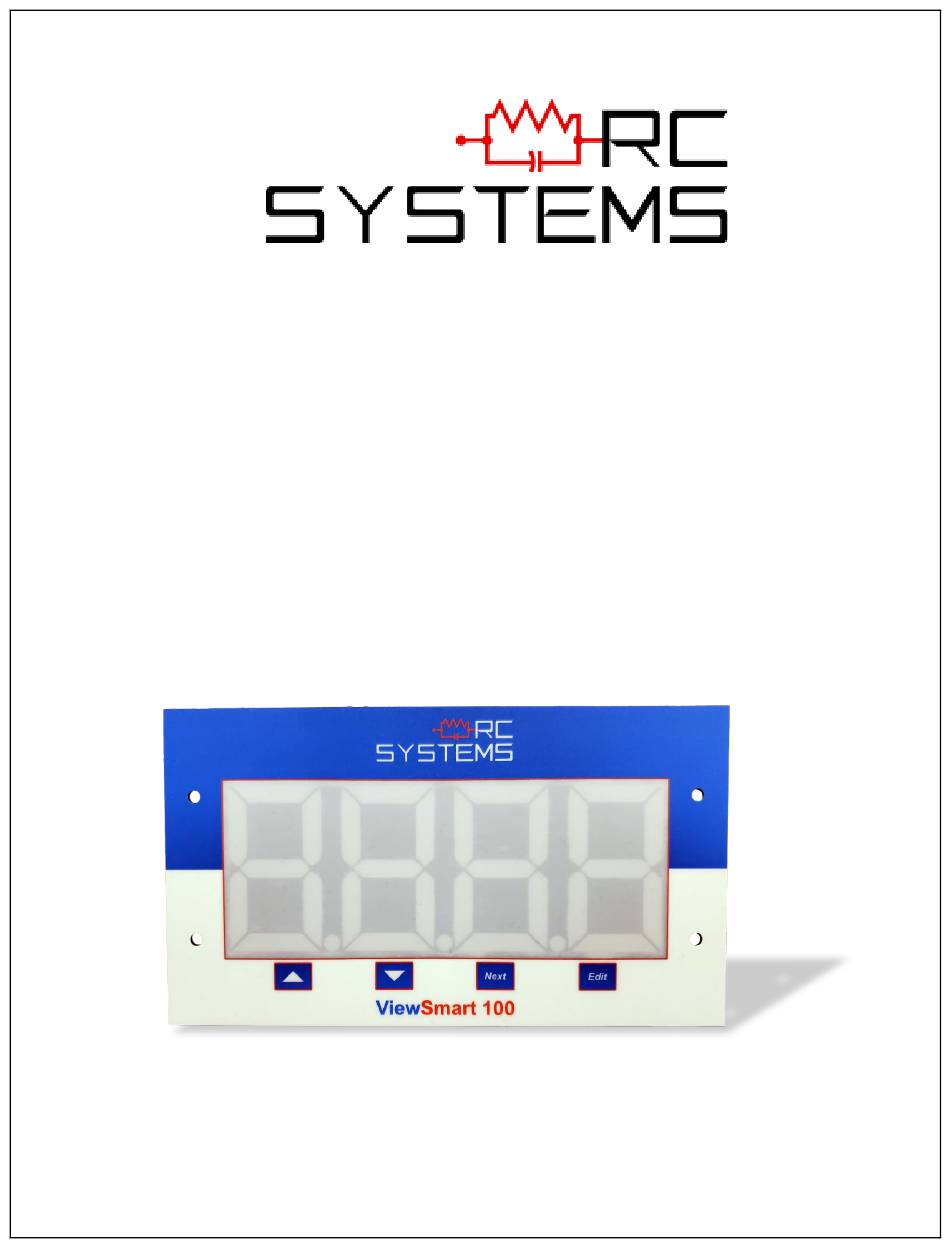

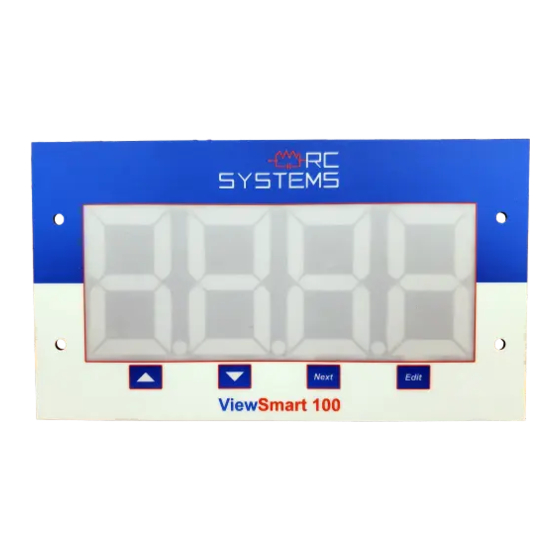

- Page 1 ViewSmart 100 Operation Instruction 8621 Hwy 6 Hitchcock, TX 77563 409-986-9800 UM-1106 www.rcsystemsco.com...
- Page 2 Table of Contents Chapter 1 Safety Information ......................1 Safety Information – Read Before Installation and Applying Power ............1 Contacting RC Systems Inc........................1 Chapter 2 User Operation ........................ 2 Chapter 3 Menu Hierarchy, Option Translation and Operation Information ........3 Chapter 4 Additional Settings......................
- Page 3 • Equipment not used as prescribed within this manual may impair overall safety. 1.2 Contacting RC Systems Inc. To contact RC Systems Inc., call, fax, email or write: 409–986-9800 FAX 409-986-9880 Email: info@rcsystemsco.com 8621 Hwy. 6 Hitchcock, TX 77563 Or visit us on the Web at www.rcsystemsco.com...
- Page 4 Chapter 2 User Operation Menus are entered by pressing the “EDIT” key and exited by pressing the “NEXT” key. Submenus are displayed by pressing the “UP” and “DOWN” keys and selected by pressing the “EDIT” key. (EX. press edit in the main reading display screen to show the main menu [alarm/input/cal/display], use the “UP” and “DOWN”...
- Page 5 Chapter 3 Menu Hierarchy, Option Translation and Operation Information To enter the menus, press the Edit key. Pressing Up/Down will cycle through the menus and options, and the Edit key selects the options for editing or enters the displayed menu. Pressing Next will back out of the current menu and save any updated parameters.
- Page 6 Fault (FLt) - displays fault level. Select to change the fault level. No user changeable trip level or color setting included. Display (diSP) - menu for changing various display options. Version (vEr) - displays the firmware version number. Brightness (brigHtnESS) - select this option to change the brightness level of the display.
- Page 7 Chapter 4 Additional Settings Input (inPt) - area to change miscellaneous settings. Current input settings (4-20) Zero mA input setting (Zero) - used to change the current input required to reach the unit’s zero value. Span mA input setting (SPAn) - used to change the current input required to reach the unit’s span value.
