3.2.3 CPU and Main I/O

Standard ViewSmart 1600+ power requirements are 10-30VDC @ 12 watts applied to terminals 1 & 3(+)
and 5 & 7(-) of TB4 on the standard I/O Board. Recommended cable size is 16AWG.
TB4 terminals 2, 4, 6 & 8 of the standard I/O Board provide a maximum of 500mA fused output power for
powering of auxiliary external devices such as relays, lamps or transmitters. Power consumed from these
terminals should be considered when calculating system power consumption. The CPU board is powered
via a ribbon cable connected to the Main I/O.

3.2.4 Option Board Power

Recommended cabling for 24VDC power supply to all option boards is 16AWG. Power must be supplied
to each option board on TB3 or TB4, and can either be supplied from the DC out terminals on the Main
UM-1097
Revision B
Ribbon Cable to CPU

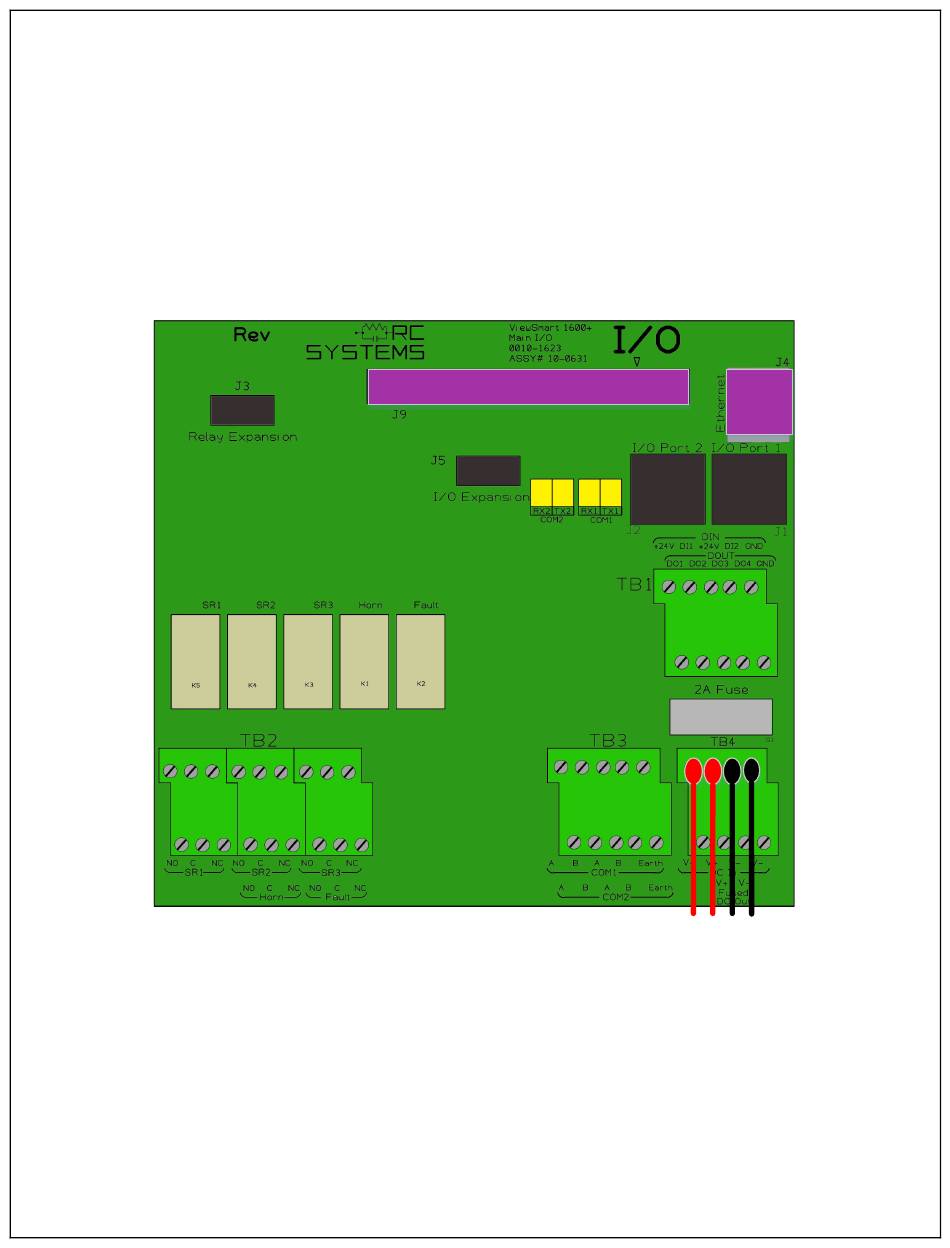

Figure 6 1600+ Main I/O Power Wiring Diagram

Ethernet for
Modbus TCP
1 3 5 7
(+) (-)
10-30VDC
8
