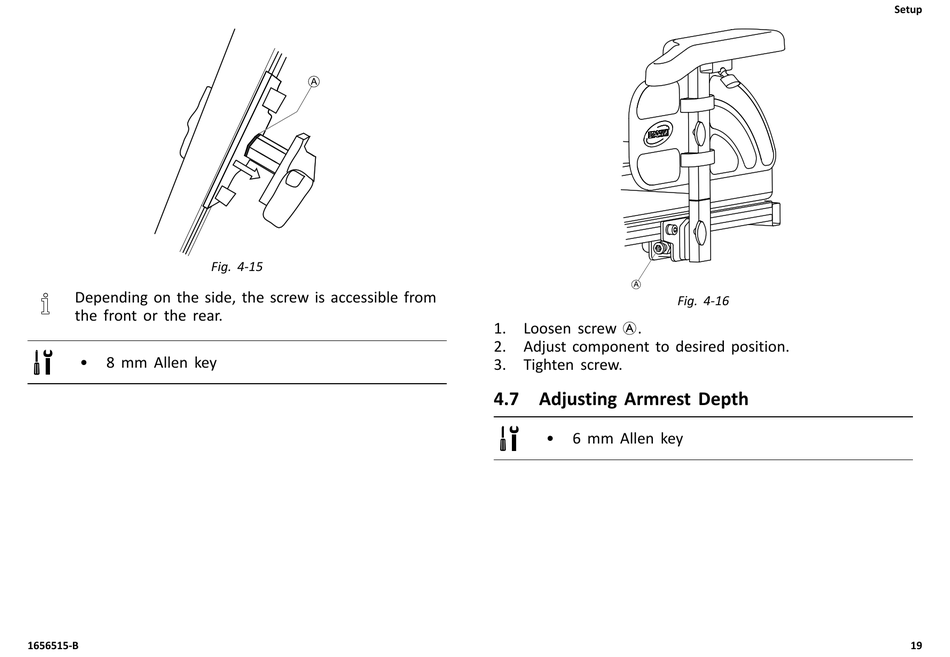

Depending on the side, the screw is accessible from
the front or the rear.
•
8 mm Allen key
1656515-B
Fig. 4-15
1. Loosen screw A.
2. Adjust component to desired position.
3. Tighten screw.
4.7 Adjusting Armrest Depth
•
6 mm Allen key
Fig. 4-16
Setup
19
