3.
Loosen the screw (1) using the Allen key.
4. Set the desired angle.
5. Re-tighten the screw.

4.25.3 Setting the end stop of the footrest

• 6 mm Allen key
• 10 mm wrench
46
1.

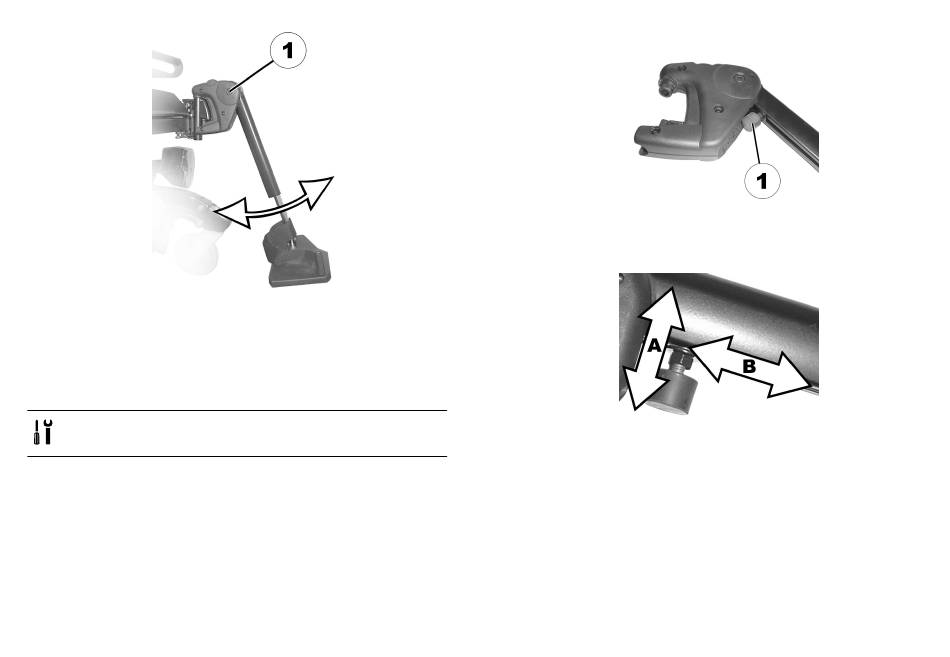

The end position of the footrest is determined by means
of a rubber stop (1).
2.
The rubber stop can be screwed in or out (A) or pushed
up or down (B).
Fig. 4-52
Fig. 4-53
