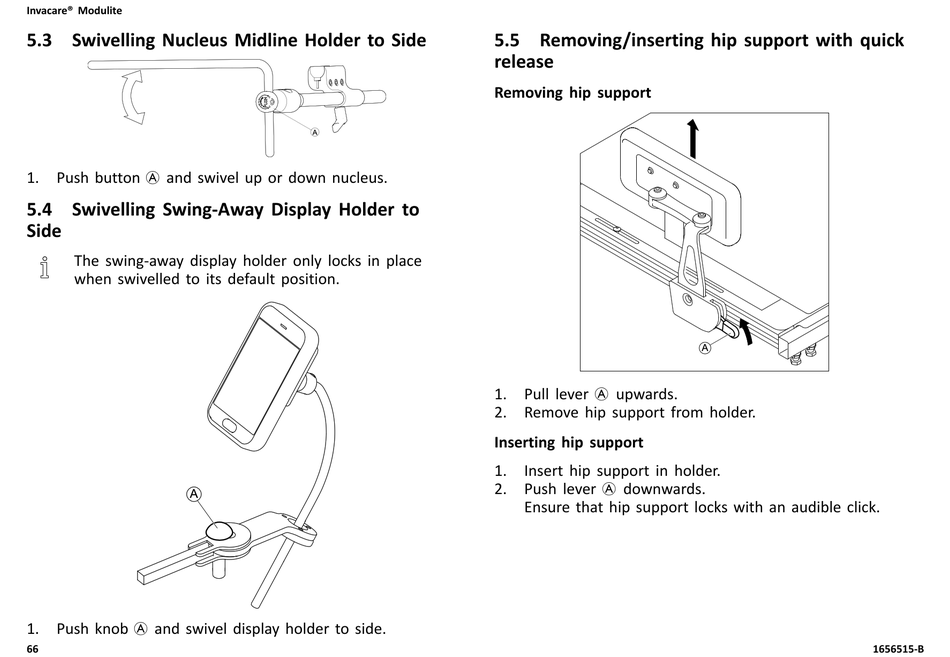

5.3 Swivelling Nucleus Midline Holder to Side

1. Push button A and swivel up or down nucleus.
5.4 Swivelling Swing-Away Display Holder to
Side
The swing-away display holder only locks in place
when swivelled to its default position.
1. Push knob A and swivel display holder to side.
66
5.5 Removing/inserting hip support with quick
release
Removing hip support
1. Pull lever A upwards.
2. Remove hip support from holder.
Inserting hip support
1. Insert hip support in holder.
2. Push lever A downwards.
Ensure that hip support locks with an audible click.
