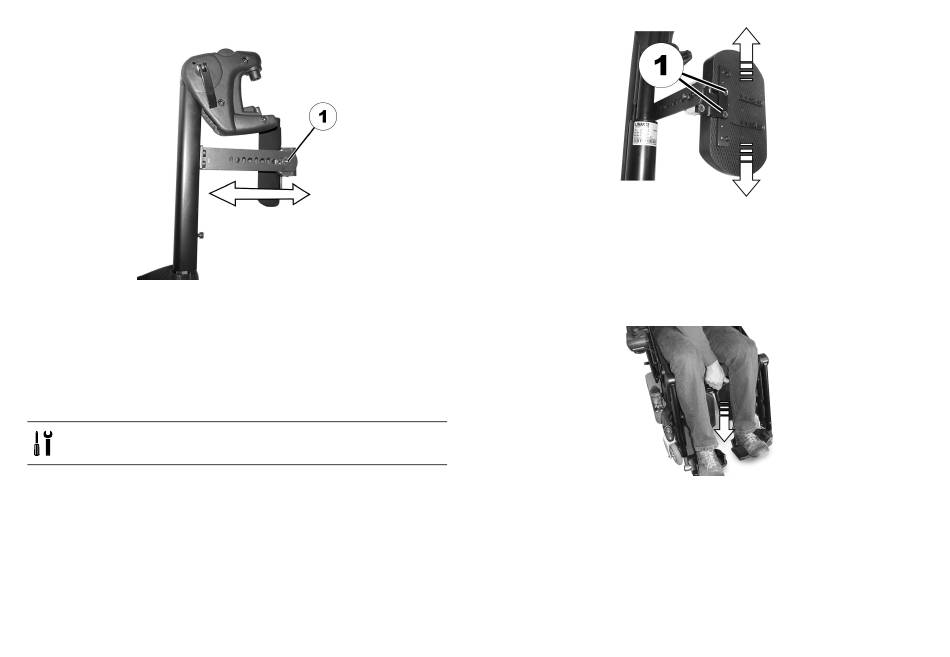

1. Use the wrench to loosen the nut (1) and remove.
2. Adjust to the desired depth. Observe that the round
holes are intended for the calf pad retaining screw and
the oblong holes for the aglet without thread.
3. Screw the nut back on and tighten.

4.27.5 Adjusting the height of the calf pad

• 4 mm Allen key
1656515-B
1. Use the Allen key to loosen the screws (1).
2. Adjust to the desired position.
3. Re-tighten the screws.

4.27.6 Unlocking and swivelling the calf pad backward

when alighting

1.
Press the calf pad straight down.
2.
Setup
57
