Invacare® Modulite
3.
Adjust component to desired position.
4. Tighten screws.
Make sure Nordlock washers used are re-inserted.

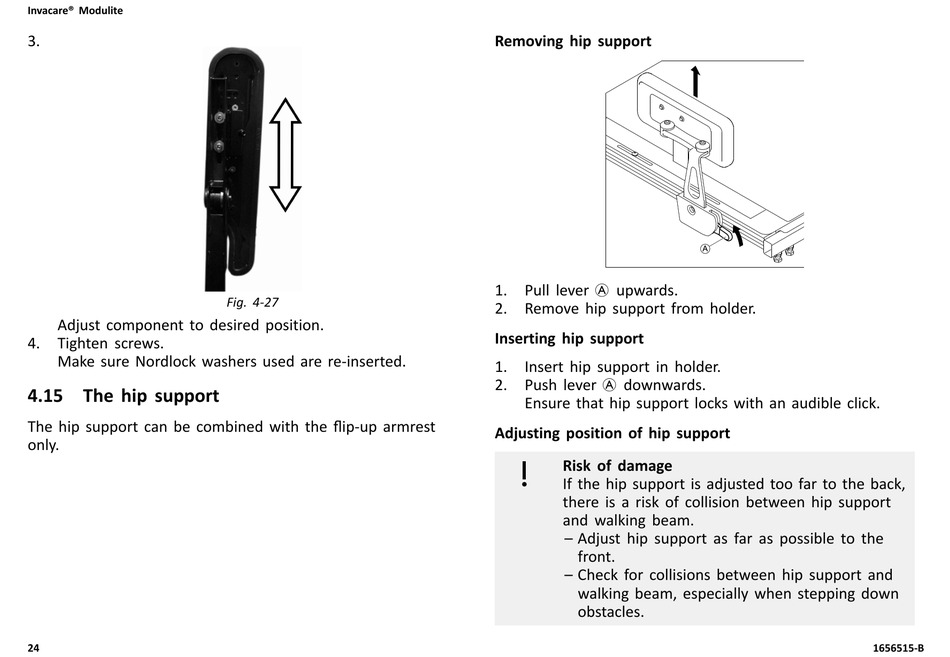

4.15 The hip support

The hip support can be combined with the flip-up armrest
only.
24
Fig. 4-27
Removing hip support
1. Pull lever A upwards.
2. Remove hip support from holder.
Inserting hip support
1. Insert hip support in holder.
2. Push lever A downwards.
Ensure that hip support locks with an audible click.
Adjusting position of hip support
Risk of damage
If the hip support is adjusted too far to the back,
there is a risk of collision between hip support
and walking beam.
– Adjust hip support as far as possible to the
front.
– Check for collisions between hip support and
walking beam, especially when stepping down
obstacles.
1656515-B
