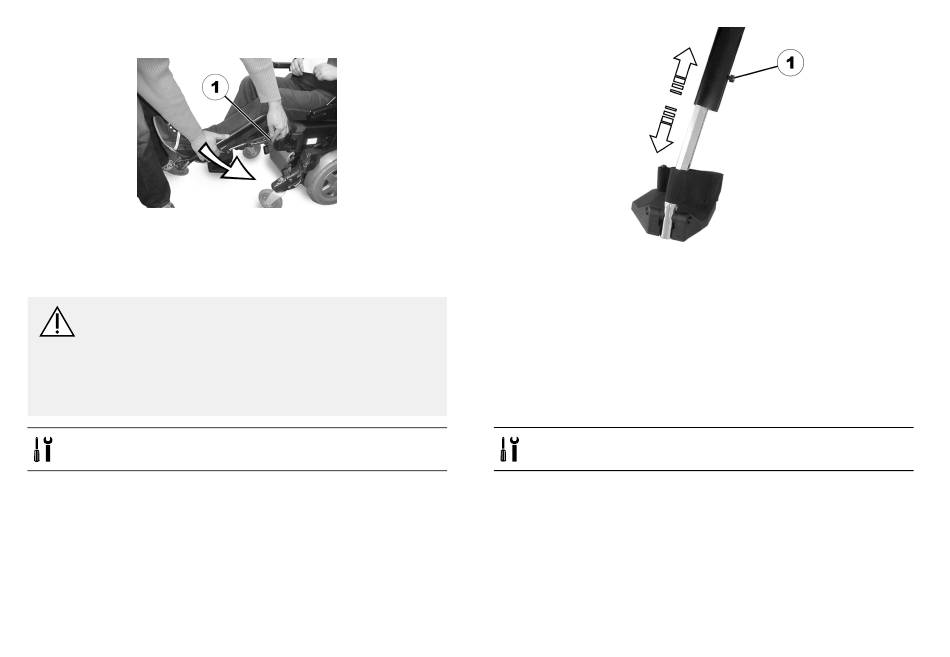

Lowering
1. Keep the legrest in the foot plate area, pull the lateral
adjusting lever (1) and lower the legrest slowly.

4.27.3 Adjusting the length of the legrest

CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
– Before and during every journey it is imperative
to ensure that the legrests contact neither the
castor wheels nor the ground.
• 5 mm Allen key
56
1. Use the spanner to loosen the screw (1).
2. Adjust to the desired length.
3. Re-tighten the screw.

4.27.4 Adjusting the depth of the calf pad

The depth of the calf pad can be adjusted via the holding
plate. The holding plate hole combinations allow 5 different
depth settings.
• 10 mm wrench
