4.23 Center-mounted legrests — manually
adjustable

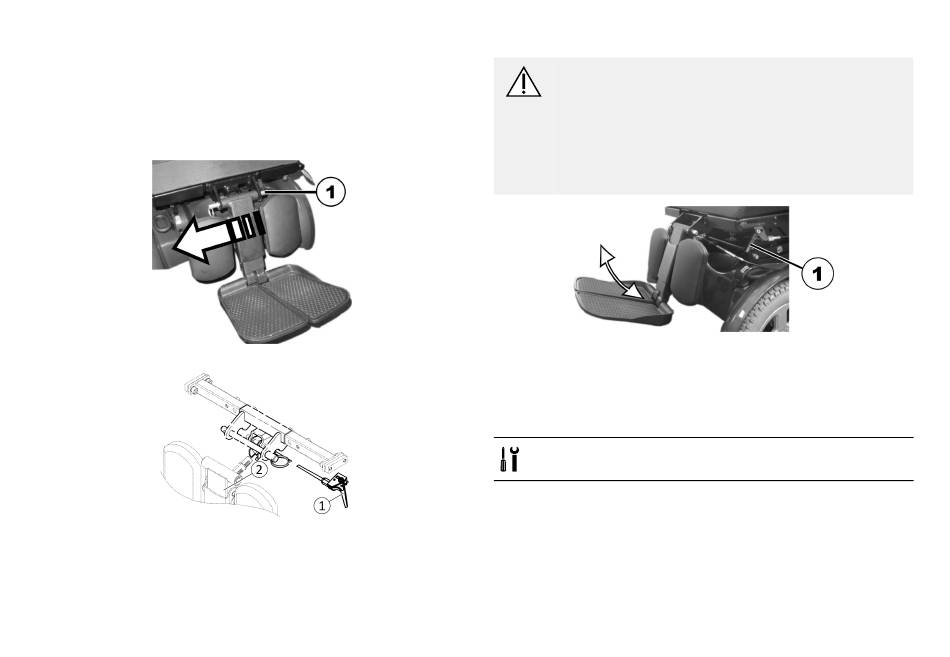

4.23.1 Removing the legrest

You can remove central, manually adjustable legrest
completely.
1.
Remove removable axle (1).
2.
Hold legrest securely and pull lever (1).
3. Remove legrest from holder (2).
1656515-B

4.23.2 Setting the angle of the leg rest

CAUTION!
Risk of injury
If the leg rest is not secured and the lever (1) is
removed, the leg rest will drop suddenly, which
could cause an injury.
– Secure the leg rest before you remove the lever
to adjust the angle of the leg rest.
1. Hold the leg rest securely.
2. Pull the lever (1).
3. Push the leg rest into the required position.

4.23.3 Setting Length of Legrest

• 3/16 inch Allen key
You can adjust the length of the legrests independently of
one another.
Setup
