4.25 Vari-F footrest

4.25.1 Swivelling the footrest/legrest outward and/or

removing

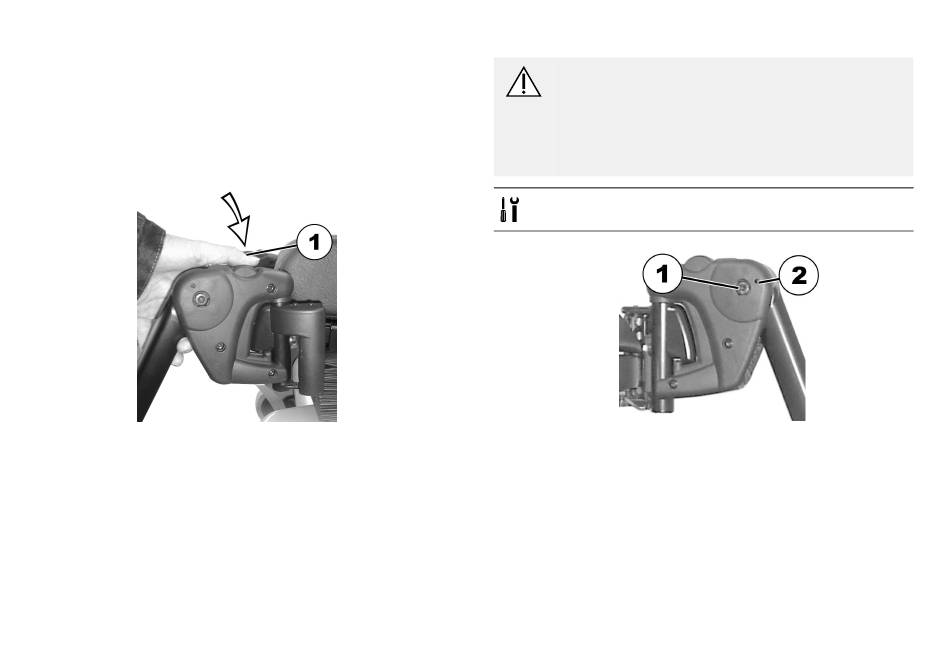

The small unlocking button is located on the upper section of
the footrest/legrest. When the footrest/legrest is unlocked,
it can be swivelled inward or outward when getting into the
wheelchair as well as being removed completely.
1. Press the unlocking button (1) and swivel the
footrest/legrest outward.
2. Remove the footrest/legrest in an upward direction.
1656515-B

4.25.2 Setting the angle

CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
– Before and during every journey it is imperative
to ensure that the legrests contact neither the
castor wheels nor the ground.
• 6 mm Allen key
1.
Loosen the screw (1) using the Allen key.
2. If the footrest cannot be moved after loosening the
screw, position a metal pin in the designated borehole
(2) and use a hammer to knock on this lightly. The
clamping mechanism in the interior of the footrest will
be released by this. Repeat the procedure from the
other side of the footrest if necessary.
Setup
45
