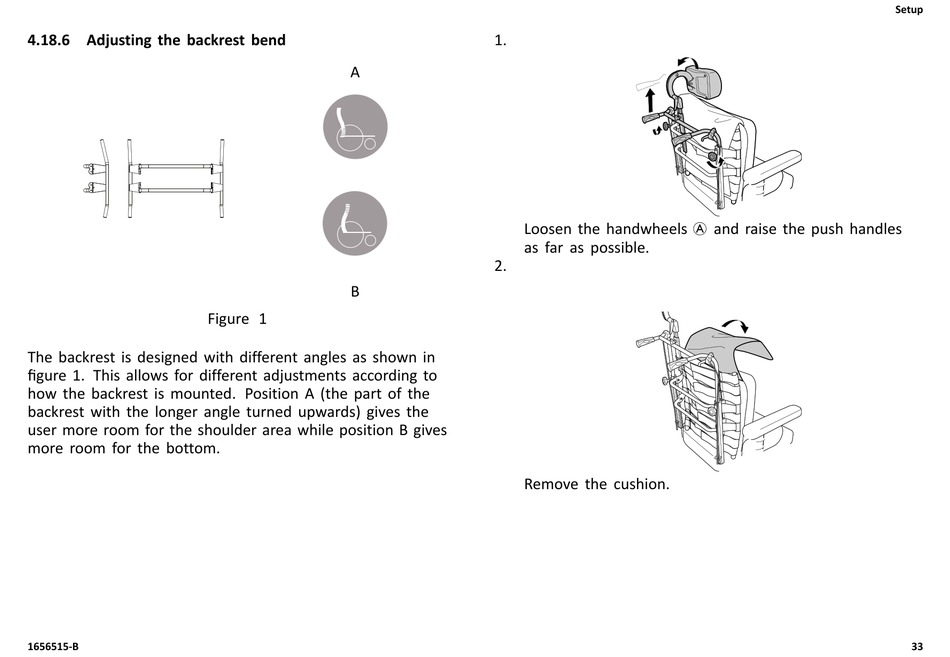

4.18.6 Adjusting the backrest bend

The backrest is designed with different angles as shown in
figure 1. This allows for different adjustments according to
how the backrest is mounted. Position A (the part of the
backrest with the longer angle turned upwards) gives the
user more room for the shoulder area while position B gives
more room for the bottom.
1656515-B
A
B
Figure 1
1.
Loosen the handwheels A and raise the push handles
as far as possible.
2.
Remove the cushion.
Setup
33
