Invacare Modulite User Manual page 17

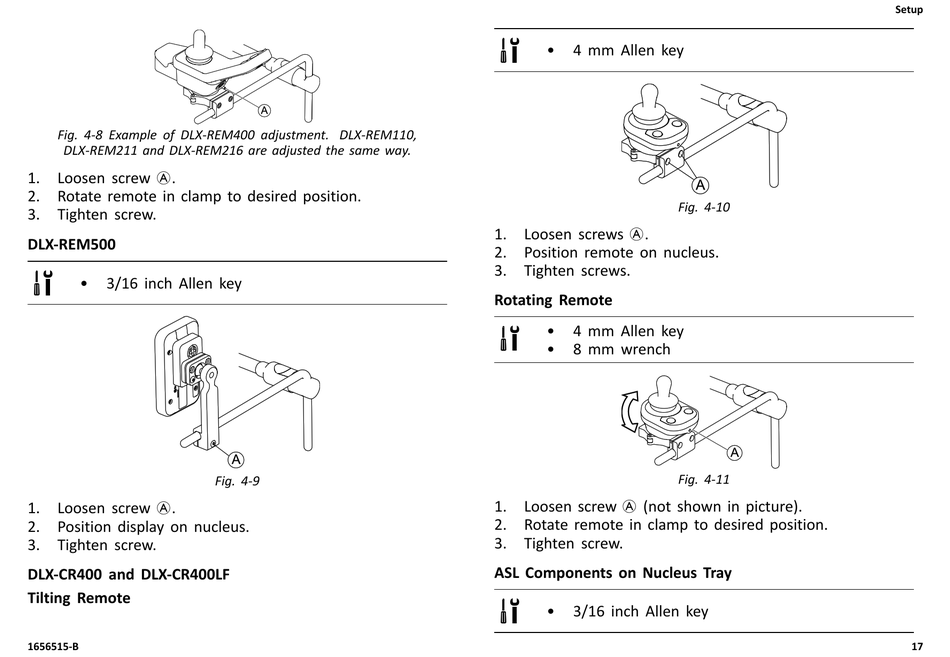

Fig. 4-8 Example of DLX-REM400 adjustment. DLX-REM110,
DLX-REM211 and DLX-REM216 are adjusted the same way.
1. Loosen screw A.
2. Rotate remote in clamp to desired position.
3. Tighten screw.
DLX-REM500
• 3/16 inch Allen key
1. Loosen screw A.
2. Position display on nucleus.
3. Tighten screw.
DLX-CR400 and DLX-CR400LF
Tilting Remote
1656515-B
Fig. 4-9
• 4 mm Allen key
1. Loosen screws A.
2. Position remote on nucleus.
3. Tighten screws.
Rotating Remote
• 4 mm Allen key
• 8 mm wrench
1. Loosen screw A (not shown in picture).
2. Rotate remote in clamp to desired position.
3. Tighten screw.
ASL Components on Nucleus Tray
• 3/16 inch Allen key
Fig. 4-10
Fig. 4-11
Setup
17
