Geeetech Delta Rostock mini G2 pro Building Instruction page 39

Round head screw
with pad
M3 washer
M3 x 8 screw

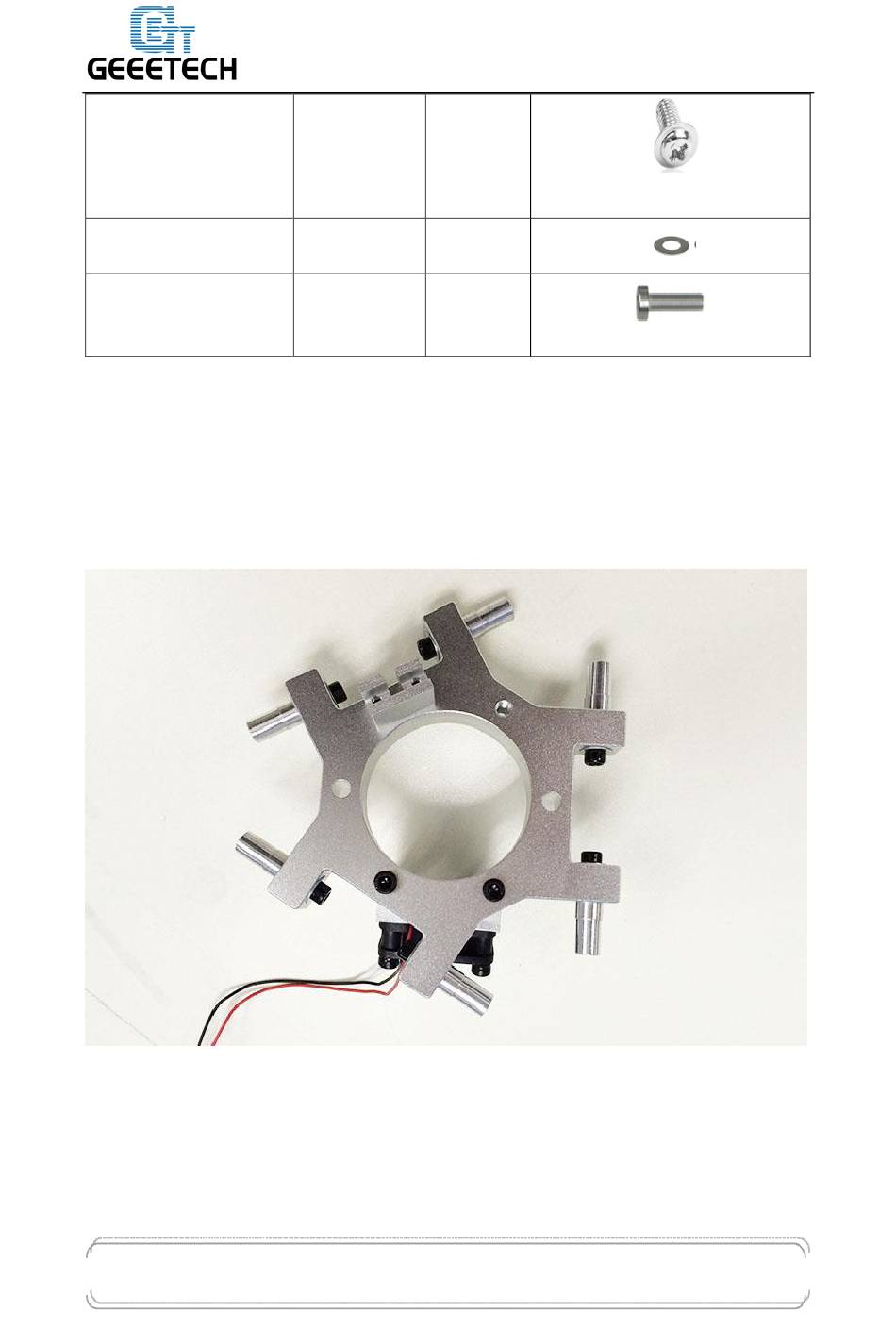

Step 1. Insert the rod-end bearing holder (#3) into the diagonal rod joint location
of the spider (#M1), fix it in place with M3x8mm screw (18) and M3
washer (#5).
