Repeat the steps for the remaining two carriages. When you have completed these

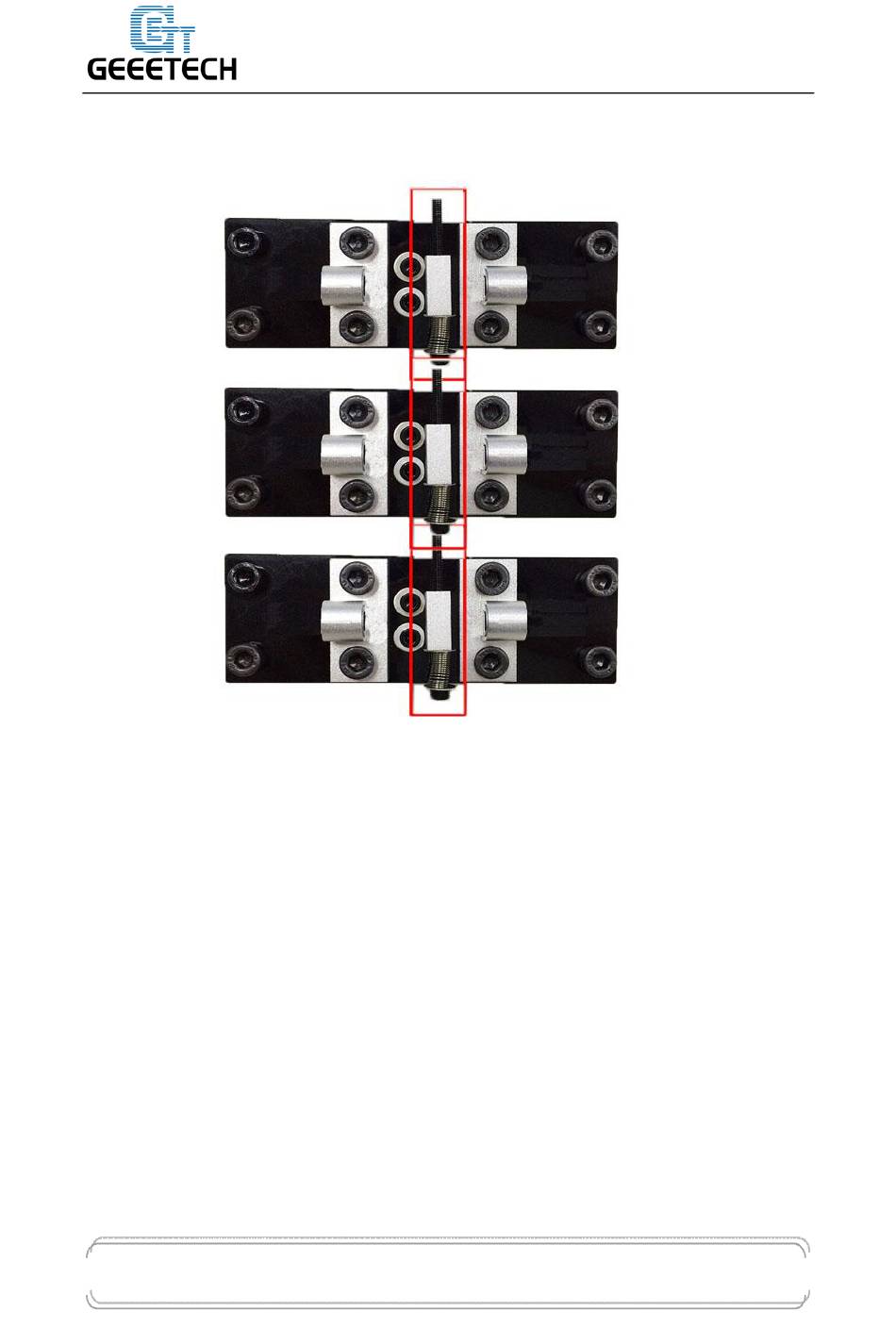

all three carriages should be exactly the same and look as in this picture:
Step 4.
Finally insert the rod-end bearing holder (#3) into the diagonal rod joint
(#M7) fixing it place with a M3x8mm screw (#18) and M3 washer (#5).
Repeat the step for the other 2 carriages.
