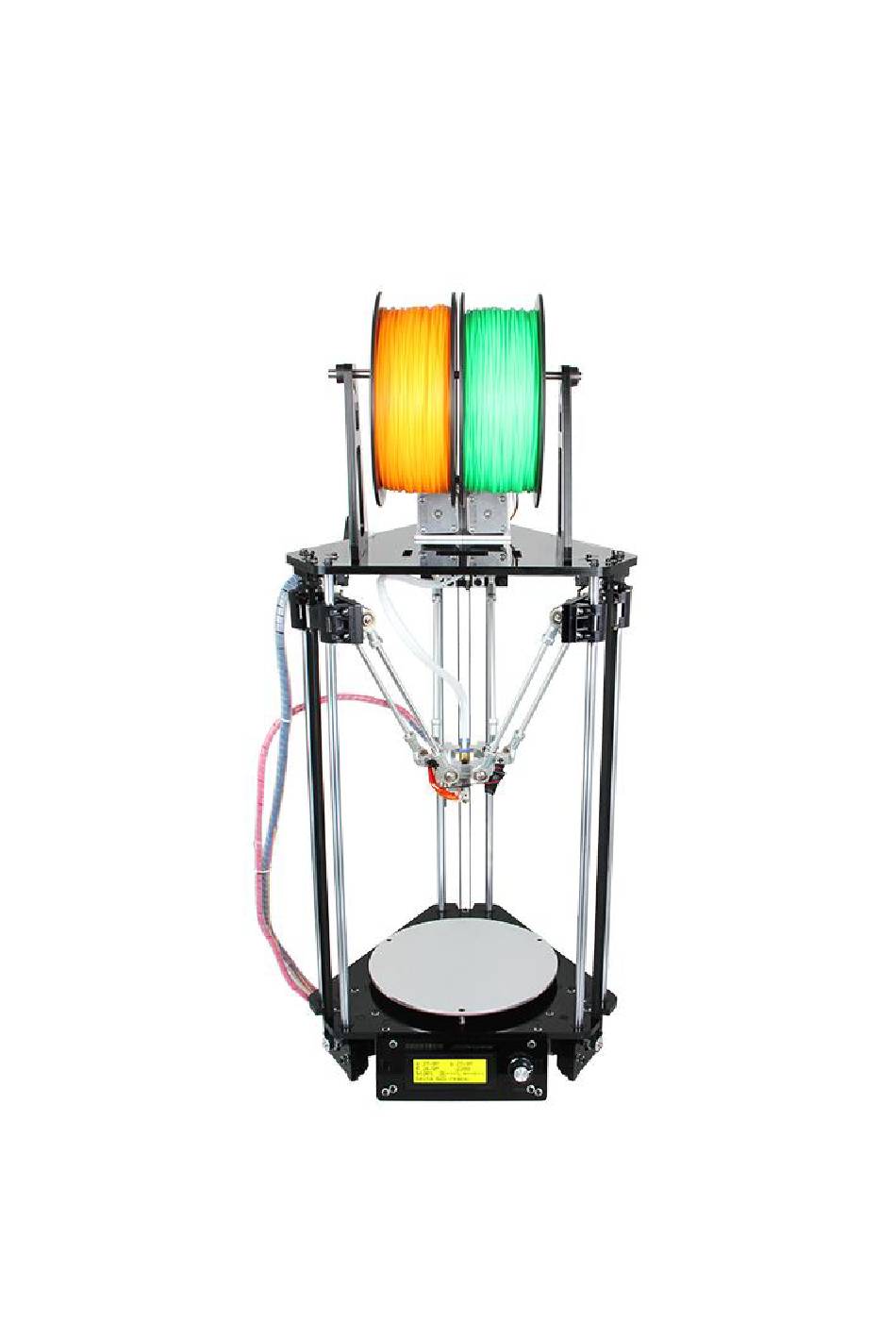

Geeetech Delta Rostock mini
G2 pro / G2s pro
Building Instruction
(Document version: 04-11, 2016)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta Rostock mini G2 pro and is the answer not in the manual?

Questions and answers

Related Manuals for Geeetech Delta Rostock mini G2 pro

Summary of Contents for Geeetech Delta Rostock mini G2 pro

  • Page 1 Geeetech Delta Rostock mini G2 pro / G2s pro Building Instruction (Document version: 04-11, 2016)

  • Page 2: Table Of Contents

    CONTENT Safety Instructions ..........................1 Preparation ............................2 1 Base Assembly ..........................3 1.1 Motor holder assembly ........................ 3 1.2 Connect motor ends to base plate....................5 1.3 Mount the LCD panel ......................... 8 1.4 Mount the fan ..........................13 1.5 Mount the control board.

  • Page 3: Safety Instructions

    ShenZhen GETECH CO.,LTD GEEETECH Safety Instructions Building your printer will require a certain amount of physical dexterity, common sense and a complete understanding of what you are doing. These detailed instructions have been provided to help you easily assemble your 3D printer.

  • Page 4: Preparation

    9. Due to parts upgrade and production batch is different, the pictures on the manual might be a bit different with what you actually received, but the function and installation will not be change. Geeetech reserves the right to explain.

  • Page 5: Base Assembly

    ShenZhen GETECH CO.,LTD GEEETECH 10. Step-by-step videos are available for you to refer to. Please combine this instruction manual with the online videos to help you finish the work. For access to the instruction videos, please subscribe our YouTube Channel.
  • Page 6 ShenZhen GETECH CO.,LTD GEEETECH Take note, when assembled one side of the assembly is longer than the other side. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 7: Connect Motor Ends To Base Plate

    ShenZhen GETECH CO.,LTD GEEETECH Repeat the above steps for the other 2 motor holder assemblies. Videos 1.2 Connect motor ends to base plate Name Part # Qty. Pic. Base plate Square nut M3 x 16 Screw www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 8 ShenZhen GETECH CO.,LTD GEEETECH M3 washer Stepper motor Pulley M3 x 12 Screw Step1: Mount the motor holder assemblies to the 3 tower locations of the base plate (#A2). Fix them with 9 M3 x 16 Screws (#20), Square nuts (#13) and M3 washers (#5).
  • Page 9 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Mount the pulley on to the motor shaft. One of the screws should be screwed on the flat section of the shaft – ensure to screw them tightly, be careful not to damage the screws.

  • Page 10: Mount The Lcd Panel

    ShenZhen GETECH CO.,LTD GEEETECH Videos 1.3 Mount the LCD panel Name Part # Qty. Picture LCD frame LCD support LCD2004 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 11 ShenZhen GETECH CO.,LTD GEEETECH Square nut M3 x 16 Screw M3 x 12 Screw Spacer M3 washer Knob Step 1. Attach the LCD frame (#A8) to the support plate (#A9) with the M3 x 16 Screws (#20) and M3 square nuts (#13).
  • Page 12 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Plug the aircraft-type spacer (#37) in to the 4 screw holes on the LCD2004 (#A8) frame. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 13 ShenZhen GETECH CO.,LTD GEEETECH Step 3. Assemble the LCD frame (#A8) and LCD2004 (#49) with 4 M3 x 12 Screws (#19) and washers (#5). Step 4. Install the the knob over the protruding stalk and screw it in place with the screw located in the hole.
  • Page 14 ShenZhen GETECH CO.,LTD GEEETECH Step 5. Mount the assembled LCD kit onto the base plate. Screw it up with 2 M3 x 16 screws (#20), M3 square nuts (#13) and washers (#5). www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 15: Mount The Fan

    ShenZhen GETECH CO.,LTD GEEETECH Videos 1.4 Mount the fan Name Part # Qty. Picture Fan (40x40x10) M3 x 16 Screw M3 x 25 screw www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 16 ShenZhen GETECH CO.,LTD GEEETECH M3 Square nut M3 nut M3 washer Step 1. Mount the fan to the fan mount, screwing it up with 2 M3 x 25 screws (#22), M3 nuts (#13) and washers (#5). www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 17: Mount The Control Board

    ShenZhen GETECH CO.,LTD GEEETECH Step 2. Mount the assembled fan mount to the base plate (#A2) with a M3 x 16 screw (#20) and M3 square nut (#13) and washer (#5). Videos 1.5 Mount the control board. Name Part # Qty.
  • Page 18 ShenZhen GETECH CO.,LTD GEEETECH M3 x 12 Screw M3 washer Step 1. Plug the aircraft-type spacer (#37) into the 4 screw holes on the underside of the control board (#50). www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 19: Mount The Print Bed

    ShenZhen GETECH CO.,LTD GEEETECH Step 2. Attach the control board (#50) to the base plate (#A2) with 4 M3 x 12 Screws (#19) and m3 washers (#5). Note: It is better to have the fan pointing directly towards the MOSFET located on the control board (as pictured above).
  • Page 20 ShenZhen GETECH CO.,LTD GEEETECH Building platform Heat-bed Counter- sunk-head screw Spring 3.5 x 20mm Wing nut M3 washer * Note: For your convenience the heat-bed has been pre-soldered you can quickly and easily mount them together. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 21 ShenZhen GETECH CO.,LTD GEEETECH Step1. Stack the building platform (#M8) on top of the heat-bed (#54) keeping the holes aligned. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 22 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Thread the M3x30mm Hex Counter-sunk-head screw (#14) through the building platform (M8) and heat-bed (#54), add washers (#5) and spring (#28); the assembly should now like this： www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 23 ShenZhen GETECH CO.,LTD GEEETECH Step 3. Locate the assembly over the holes provided in the base plate (#A2) anf then lock the complete assembly in place with a wing nut (#12). Here is the finished picture. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 24: Top Plate Assembly

    ShenZhen GETECH CO.,LTD GEEETECH Videos 2 Top Plate Assembly 2.1 Drive wheel mount Name Part # Qty. Picture Drive wheel mount M3x25 Screw M3 nut M3 washer www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 25: Endstop Mount

    ShenZhen GETECH CO.,LTD GEEETECH Step 1. Mount the drive wheel mount to the top plate (#A5) on A1; screw them up with M3 x 25 screws (#22) , M3 nut (#10) and washers (#5). Repeat the procedure for the other two drive wheel mounts.
  • Page 26 ShenZhen GETECH CO.,LTD GEEETECH M3 x 16 Screw Square nut M3 washer M2.5 nut Step 1. Mount the three endstops (#44) onto the endstop mounts (#A6) in the same direction. Fix in place with with M2.5 x 16 screws (#17) and M2.5 nut (#9) ensuring that they are tightly fixed.
  • Page 27 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Bend the wire connector a small amount taking care not to break the connector. Note: You should be very gentle and note the direction, or the connector will easily break. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 28 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Mount the assembled parts onto the top plate (#A1). And attach them with the M3 x 16 screws (#20), M3 square nuts (#13) and M3 washers (#5). Again, take note of the endstop mounting direction.

  • Page 29: Assembling The Carriage

    ShenZhen GETECH CO.,LTD GEEETECH Videos 3 Assembling the carriage www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 30 ShenZhen GETECH CO.,LTD GEEETECH Name Part # Qty. Picture Carriage mount #A12 Belt mount Endstop trigger mount Diagonal Rod joint PCS10UU Linear Bearing M3x12mm Screw M5x16mm Screw M5x20mm Screw #27A M3x40mm Screw Spring M3 washer www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 31 ShenZhen GETECH CO.,LTD GEEETECH Rod-end bearing holder M5 nut #10A * PCS8UU linear bearings is a modified version of PCS8UU linear bearings, the block is made of high strength ABS, which is lighter and more flexible. Why we changed the PCS8UU linear bearings into the PCS8UU ?
  • Page 32 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 33 ShenZhen GETECH CO.,LTD GEEETECH Step 3. Now insert the M3x40mm screw (#23) into the endstop trigger mount with a spring (#29) in between. Here you need to use washers (#5) to correctly complete the assembly. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 34 ShenZhen GETECH CO.,LTD GEEETECH Repeat the steps for the remaining two carriages. When you have completed these all three carriages should be exactly the same and look as in this picture: Step 4. Finally insert the rod-end bearing holder (#3) into the diagonal rod joint (#M7) fixing it place with a M3x8mm screw (#18) and M3 washer (#5).

  • Page 35: Assemble The Print Platform

    ShenZhen GETECH CO.,LTD GEEETECH Videos 4 Assemble the print platform 4.1 mount the fan Name Part # Qty. Picture Spider Fan (30x30x10) Fan mount www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 36 ShenZhen GETECH CO.,LTD GEEETECH M3 x 16 screw M3 x20 screw M3 washer Step 1. Mount the fan (#47) on to the angled (slanted) face of the fan mount (M2) with 2 M3x 20 screws (#21) and M3 washers (#5).

  • Page 37: Mount The Probe Mount

    ShenZhen GETECH CO.,LTD GEEETECH Step 2. Mount the assembled fan mount on the spider (#M1) with 2 M3 x16mm screws (#20). 4.2 Mount the Probe mount Name Part # Qty. Picture Probe mount M2.5 x 16 screw www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 38: Mount The Rod-End Bearing Holder And Diagonal Rod

    ShenZhen GETECH CO.,LTD GEEETECH Step 1. Mount the probe mount (#M4) on the spider (#M1) with 2 M2.5 x16mm screws (#17). *Taking note that the screws (#M17) are inserted from the underside of the spider (#M1) fixing the probe mount (#M4) to the top side of the spider (#M1).
  • Page 39 ShenZhen GETECH CO.,LTD GEEETECH Round head screw with pad M3 washer M3 x 8 screw Step 1. Insert the rod-end bearing holder (#3) into the diagonal rod joint location of the spider (#M1), fix it in place with M3x8mm screw (18) and M3 washer (#5).
  • Page 40 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Slide the diagonal rod (#4) on to the rod-end bearing holder (#3) and fix it in place with a round head screw with pad (#15). www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 41: Mount The Endstop And The Probe

    ShenZhen GETECH CO.,LTD GEEETECH 4.4. Mount the endstop and the probe. Name Part # Qty. Picture Endstop Probe Spring(3.5*30) Probe Lock ring M2.5 x 8 screw www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 42 ShenZhen GETECH CO.,LTD GEEETECH Step 1. Mount an endstop (#44) on to the spider (#M1) at the screw hole located adjacent to the probe mount (#M4) with 2 M2.5 x 8 screws (#16). Step 2. Insert the probe (#43) into the probe mount (#M4), slide on the provided spring (#29) and lock it in place with the lock ring (#M3).

  • Page 43: Mount The Hotend

    ShenZhen GETECH CO.,LTD GEEETECH 4.5 Mount the hotend. Name Part # Qty. Picture Hotend M4 x 16 screw www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 44: Mount The Smooth Rods

    ShenZhen GETECH CO.,LTD GEEETECH Step 1. Mount the hotend (#57) on the now assembled spider (#M1) with 2 M4 x 16 screws (#25). *Note: Mounting of the single and double hot-ends are done exactly the same way. Videos 5 Mount the smooth rods...
  • Page 45 ShenZhen GETECH CO.,LTD GEEETECH M4 x 8 Screw M8 Washers M4 washer Step 1. Slide a M8 washer (#8) on to an end of the smooth rod (#1). Insert that end of the rod (#1) into one of the holes located on the tower of base plate (#A1).
  • Page 46 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Repeat this step for the remaining 5 rods (#1). Videos www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 47: Mount The Carriage And The Top Plate

    ShenZhen GETECH CO.,LTD GEEETECH 6 Mount the carriage and the top plate Name Part # Qty. Picture M4 x 8 Screw M8 Washers M4 washer Step 1. Slide the carriages down the smooth rods (#1) pairing one carriage with each set of 2 smooth rods (#1). You should now have the beginnings of three towers (X, Y and Z).
  • Page 48 ShenZhen GETECH CO.,LTD GEEETECH *Note: At this point it may be a good opportunity to check that the carriage endstop screws (#23) actually connect with the endstops (#44). Align the top place (#A1) on to the top of the rods (#1) and check that the endstops are correctly orientated.
  • Page 49 ShenZhen GETECH CO.,LTD GEEETECH *Photos with PCS8UU linear bearings in this instruction is the previous version,here we use PCS8UU instead. Picture is just for reference. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 50 ShenZhen GETECH CO.,LTD GEEETECH Videos www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 51: Mount The Belt

    ShenZhen GETECH CO.,LTD GEEETECH 7 Mount the Belt 7.1 Assemble the drive wheel Part name Part # Qty. Picture Drive wheel holder Drive wheel R84zz Ball Bearing M3 x16mm screw M4 x 25mm screw M4 washer M4 lock nut wing nut www.geeetech.com...
  • Page 52 ShenZhen GETECH CO.,LTD GEEETECH Step 1. Thread the M3 x 16 screw (#20) through the top hole on the drive wheel holder (#33). Step 2. Pick up 2 MR84zz ball bearings (#31). Insert 1 MR84zz ball bearings (#31) into both ends of the drive wheel (#32).
  • Page 53 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 54 ShenZhen GETECH CO.,LTD GEEETECH Step 3. Place the drive wheel (#32) in to the drive wheel holder (#33) and fix it in place with an M4 x25 screw (#26) and M4 washer (#6). Lock the other end with a M4 lock nut (#11). You may need a wrench to tighten M4 locking nut (#11).

  • Page 55: Add The Belt

    ShenZhen GETECH CO.,LTD GEEETECH *Note: Do not screw it too tightly as it may restrict the free movement of the drive wheel. It is important that you leave enough room for the wheel to turn freely. Repeat these steps to assemble the other two drive wheel assemblies.
  • Page 56 ShenZhen GETECH CO.,LTD GEEETECH M3 washer Step 1. Thread the timing belt (#36) through the drive wheel with the pitched side in direct contact with the drive wheel and the smooth side facing out. Step 2. Punch a 2-2.5mm hole in to the timing belt (#36) with a leather hole punch or similar (not supplied).
  • Page 57 ShenZhen GETECH CO.,LTD GEEETECH *Note: Before you cut the belt, be sure that you have the correct length, it should be about 110cm long in total. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 58: Connect The Diagonal Rod To The Carriage

    ShenZhen GETECH CO.,LTD GEEETECH Step 5.Tighten the wing nut (#12) to to reduce the slack in the timing belt (#36). Repeat the above steps for the other 2 timing belts (#36). Videos 8 Connect the Diagonal Rod to the carriage...
  • Page 59 ShenZhen GETECH CO.,LTD GEEETECH Step 1. Place the print head assembly on to the building platform (#M8) aligning it so then the end stop (#44) and probe (#43) are facing the “X” tower. Working with the “X” axis first, slide the diagonal rod (#4) on to the on the Step 2.

  • Page 60: Mount The Extruder

    ShenZhen GETECH CO.,LTD GEEETECH *Note. The auto-leveling device is towards the X tower, as shown in the following picture: Fix the remaining diagonal rods (#4) to the carriages with a round head screw with pad (#15). Videos 9 Mount the extruder We shall be using the dual extruder as the example in this assembly guide as most of the steps are very similar to the single extruder model.
  • Page 61 ShenZhen GETECH CO.,LTD GEEETECH Name Part # Qty. Picture Extruder #56A/B M4 x 12 screw #24A www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 62 ShenZhen GETECH CO.,LTD GEEETECH Note: In the case of the dual extruder model, ensure that the release handles on the extruder (#56A/B) are positioned as per the photo below otherwise they will not align with the screw holes in the top plate (#A1).

  • Page 63: Mount The Filament Holder

    ShenZhen GETECH CO.,LTD GEEETECH Single extruder Videos 10 Mount the filament holder Note: If you prefer, this step can be left for the very end of the assembly and configuration process. Name Part # Qty. Picture www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 64 ShenZhen GETECH CO.,LTD GEEETECH Spool holder #A10 Side panel Spool holder #A11 Side panel M3x16 screw Square nut locking ring Step 1. Fit the spool holder side panel (#A10) in to the locating holes on the top plate (#A1) and fix in place with M3x16 screw (#20), M3 square nut (#13) and washer (#5).
  • Page 65 ShenZhen GETECH CO.,LTD GEEETECH EXAMPLE 2: G2S www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 66: Connect The Feeding Pipe

    ShenZhen GETECH CO.,LTD GEEETECH Note: For this dual filament spool, you need to use the locking ring to lock the spool on both ends. Videos 11 Connect the feeding pipe Name Part # Qty. Picture Feeding pipe www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 67 ShenZhen GETECH CO.,LTD GEEETECH Step 1. Plug one end of the feeding pipe (#1) into the push-fitting located at the top of the hot end (identified by the blue plastic ring) and the other end into that of the extruder (#56A/B).
  • Page 68 ShenZhen GETECH CO.,LTD GEEETECH The hot end at the front (nearest the LCD panel) is “extruder 1” and the Note: one behind it (nearest the “Z” tower) is “extruder 2”. *Note: If you need to pull the tube out, please press the push-in fitting( blue part ) while pulling.

  • Page 69: Wiring

    ShenZhen GETECH CO.,LTD GEEETECH 12 Wiring Before you start wiring, please take a look at the wiring schematics. You can see original picture here. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 70: 1Connect Wires For Motors

    ShenZhen GETECH CO.,LTD GEEETECH 1Connect wires for motors. Step 1. Connect wires for X-axis motor. Step 2. Connect wires for Y-axis motor. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 71: 2Connect Extruder Motor(S)

    ShenZhen GETECH CO.,LTD GEEETECH Step 3. Connect wires for Z-axis motor. 2Connect extruder motor(s) Step 1. Identify which extruder you are connecting; this connector plug is for “extruder 1” (for dual hot end) or just the extruder (single hot end).
  • Page 72 ShenZhen GETECH CO.,LTD GEEETECH Connect “extruder 2” to this connector plug. (FOR G2S PRO) Step 2. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 73: 3Heating Wires

    ShenZhen GETECH CO.,LTD GEEETECH 3Heating wires Note: Heating wires do not have a positive (+) or negative (-) wire, therefore you can safely connect either wire into the connector plug. Step 1. Loosen the screws on the green connector and insert the wires and re- tighten the connector.
  • Page 74 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Connect heat-bed wires. Connect “hot end 1” (nearest LCD panel) heating wire. Step 3. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 75 ShenZhen GETECH CO.,LTD GEEETECH Connect “hot end 2” (nearest “Z” tower) heating wire. Step 4. *Note: Take much care when connecting wires. Do not rush and do not mix up the wires. Take special care not to mix up the wires for heating and the thermistors.

  • Page 76: 4Connect Wires For Thermistor

    ShenZhen GETECH CO.,LTD GEEETECH 4Connect wires for thermistor. Step 1. Connect the thermistor from to the heat-bed to the left connector plug. Connect the thermistor from “hot end 1” to the right connector plug. Step 2. Step 3. Connect the thermistor from “hot end 2” to the middle connector plug.

  • Page 77: Connect Wires For Endstop

    ShenZhen GETECH CO.,LTD GEEETECH 5 Connect wires for endstop. Step 1. Connect the X-axis endstop to the X-max connector plug. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 78 ShenZhen GETECH CO.,LTD GEEETECH Step 2. Connect Y-axis endstop to the Y-max connector plug. Step 3. Connect Z-axis endstop to the Z-max connector plug. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 79 ShenZhen GETECH CO.,LTD GEEETECH Step 4. Connect the auto-leveling probe endstop to the Z-min connector plug. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 80: 6Connect Wires For Fan

    ShenZhen GETECH CO.,LTD GEEETECH 6Connect wires for Fan. Step 1. Connect control board fan to the FAN1 connector plug. Step 2. Connect either extruder fans to FAN2 connector plug and the other extruder fan to FAN3 connector plug. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...

  • Page 81: 7Connect Wires For Lcd Panel

    ShenZhen GETECH CO.,LTD GEEETECH Step 3. Connectthe hot-end fan to the FAN-PWM connector plug. 7Connect wires for LCD panel. Note: The LCD controller comes with connectors and two cables, the are not to be mixed up as this could cause damage to the LCD, SD card reader or controller board, so please take care.
  • Page 82 ShenZhen GETECH CO.,LTD GEEETECH Note: There is a small screw above the SD card reader. If the LCD text display is not very clear, you can make some adjustments with this screw to improve the displayed text. Do not over turn or apply aggressive force as you may damage the potentiometer.

  • Page 83: 8Connect Wires For Power Input

    ShenZhen GETECH CO.,LTD GEEETECH 8Connect wires for power input. 9Connect the power cable to the input connector of PSU Name Part NO. 3D Power cable NO.59 Power Supply NO.58 Unit Power Cable NO.60 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858...
  • Page 84 ShenZhen GETECH CO.,LTD GEEETECH Caution: You must take extreme care at this point. Ensure that you connect the correct wires to the corresponding locations on the power supply. Step 1. Connect the wires as shown below. This wiring is for G2s Pro.
  • Page 85 ShenZhen GETECH CO.,LTD GEEETECH For both power supply units, you should take note of the colors and their corresponding connection as a mistake can cause you harm or damage the printer. If you are unsure of your skills and abilities here, please consult a professional.

  • Page 86: 13Tidy Out The Wires

    ShenZhen GETECH CO.,LTD GEEETECH 13 Tidy out the wires Use the provided spiral coil and zip ties to neatly bundle the those wires together. If you bundle the wires up before wiring the printer, you are advised to mark each wire with its function or location so as not to mix them up.
  • Page 87 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...
  • Page 88 ShenZhen GETECH CO.,LTD GEEETECH The Rostock mini G2 (G2s) has been fully assembled. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858 Page...

  • Page 89: Tips

    ShenZhen GETECH CO.,LTD GEEETECH 14 Tips Before printing your first project, it is critical that you correctly calibrate the printer. Skipping or rushing this step will result in frustration and failed prints later, so it is important to take the time to make sure your printer is correctly set up.
