Base Assembly; Motor Holder Assembly - Geeetech Delta Rostock mini G2 pro Building Instruction

10. Step-by-step videos are available for you to refer to. Please combine this
instruction manual with the online videos to help you finish the work. For
access to the instruction videos, please subscribe our

1 Base Assembly

1.1 Motor holder assembly

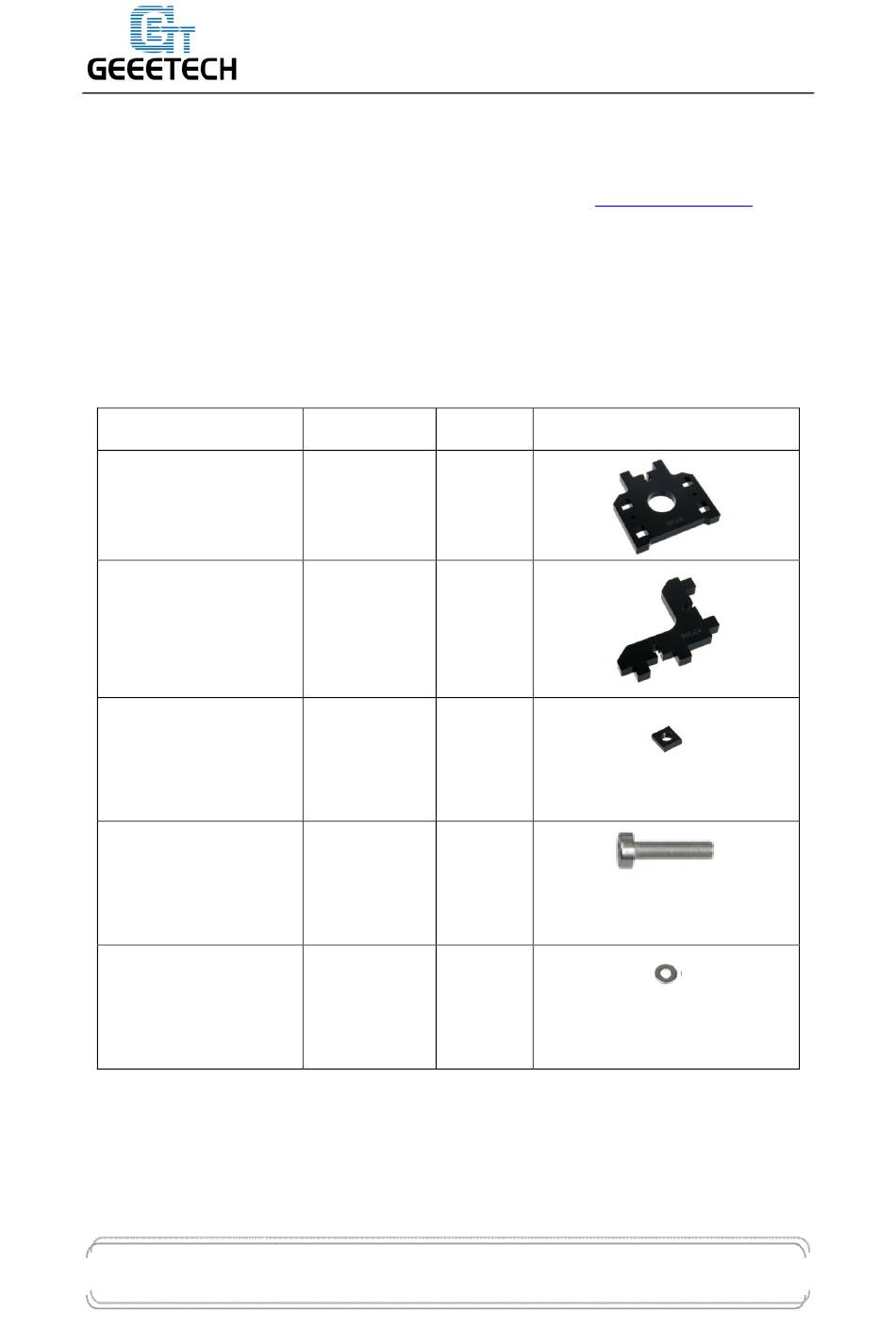

Name
Motor holder
Motor holder support
Square nut
M3 x 16 Screw
M3 washer
Step1: Select 1 A3 and 2 A4 parts and screw them together with the M3 x 16 (#20)
screws, M3 square nut (#13) and M3 washers (#5) provided.
www.geeetech.com
ShenZhen GETECH CO.,LTD
GEEETECH
Part #
#A3
#A4
#13
#20
#5
Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858
YouTube Channel.
Qty.
3
6
6
6
6
Pic
Page 3
