Geeetech Delta Rostock mini G2 pro Building Instructions

Hide thumbs Also See for Delta Rostock mini G2 pro:
Table of Contents

Advertisement

Quick Links

Download this manual

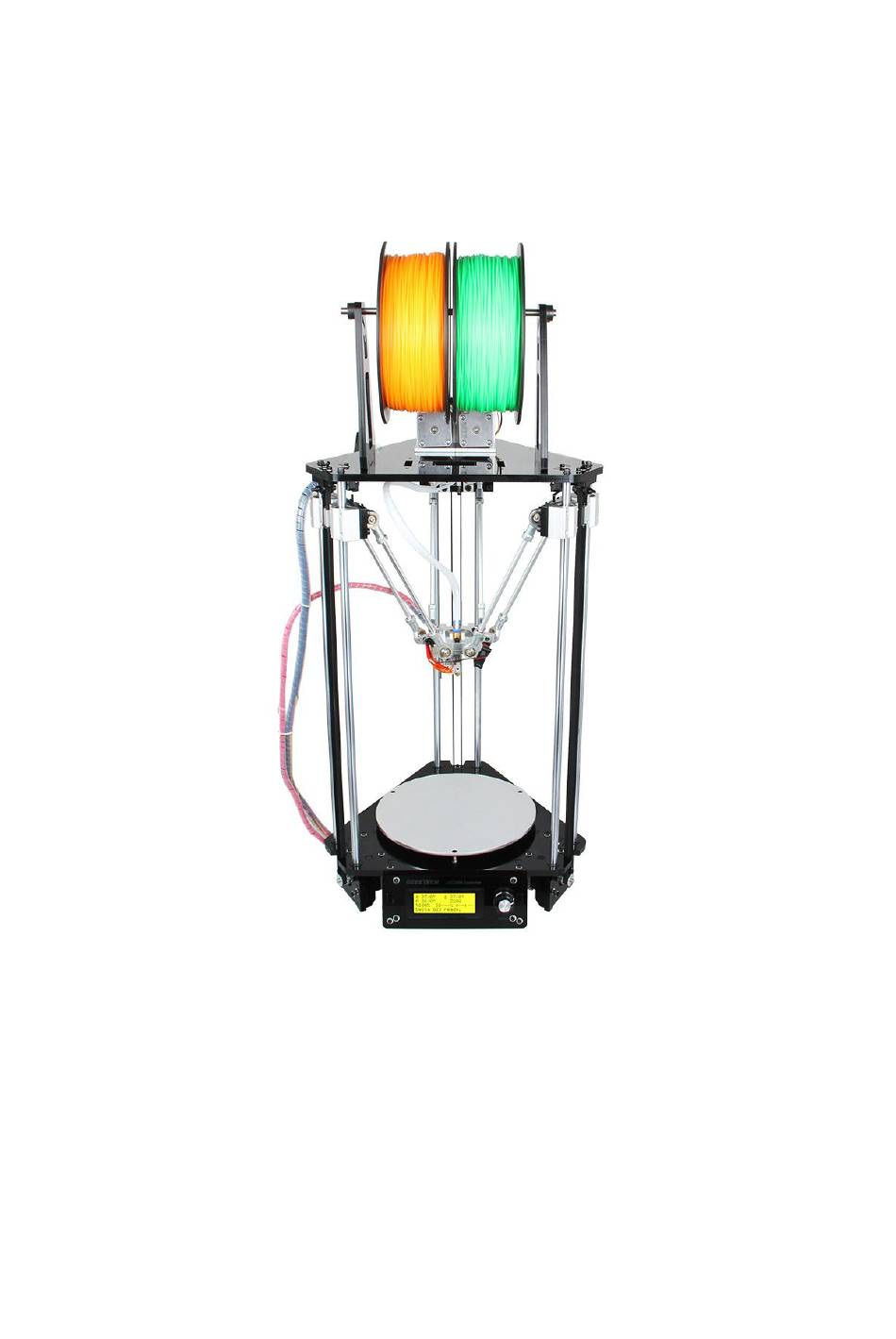

Delta Rostock mini G2 pro / G2s pro
Building Instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta Rostock mini G2 pro and is the answer not in the manual?

Questions and answers

Related Manuals for Geeetech Delta Rostock mini G2 pro

Summary of Contents for Geeetech Delta Rostock mini G2 pro

  • Page 1 Delta Rostock mini G2 pro / G2s pro Building Instruction...

  • Page 2: Table Of Contents

    ShenZhen GETECH CO.,LTD GEEETECH CONTENT Safety Instructions..........................3 Preparation............................4 1 Base Assembly..........................5 1.1 Motor holder assembly......................5 1.2 Connect motor ends to base plate..................7 1.3 Mount the LCD panel......................10 1.4 Mount the fan........................16 1.5 Mount the control board......................18 1.6 Mount the print bed......................20...

  • Page 3: Safety Instructions

    ShenZhen GETECH CO.,LTD GEEETECH Safety Instructions Building the printer will require a certain amount of physical dexterity, common sense and a thorough understanding of what you are doing. We have provided this detailed instruction to help you assemble it easily.

  • Page 4: Preparation

    ShenZhen GETECH CO.,LTD GEEETECH Preparation 1. Unpack the kit and check if all parts are in the box and check the condition of each part, there might be some damage during shipping. To help you with this, there is BOM in the box and each bag was labeled with part number.

  • Page 5: Base Assembly

    ShenZhen GETECH CO.,LTD GEEETECH 1 Base Assembly 1.1 Motor holder assembly Name Part NO. Motor holder NO.A3 Motor holder support NO.A4 Square nut NO.13 M3 x 16 Screw NO.20 M3 washer NO.5 Step1. Assemble A3 and 2 A4 together, and screw up with M3 x 16 screws, M3 square nut and M3 washer.
  • Page 6 ShenZhen GETECH CO.,LTD GEEETECH Note one side is longer and the other is shorter. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 7: Connect Motor Ends To Base Plate

    ShenZhen GETECH CO.,LTD GEEETECH Repeat the steps for the other 2 motor holders. Videos 1.2 Connect motor ends to base plate Name Part NO. Base plate NO.A2 Square nut NO.13 M3 x 16 Screw NO.20 www.geeetech.com Tel: +86 755 2658 4110...
  • Page 8 ShenZhen GETECH CO.,LTD GEEETECH M3 washer NO.5 Stepper motor NO.55 Pulley NO.34 M3 x 12 Screw NO.19 Step1. Mount the motor end to the 3 tower of the base plate (A2 ). Fix them with 9 M3 x 16 Screws, Square nuts and M3 washers.
  • Page 9 ShenZhen GETECH CO.,LTD GEEETECH Step3. Mount the 3 assembled motor to the motor holder; screw it up with M3x12 screws and M3 washers. * Note the direction of the wire connector, it is better to be on the either left or right side.

  • Page 10: Mount The Lcd Panel

    ShenZhen GETECH CO.,LTD GEEETECH Videos 1.3 Mount the LCD panel Name Part NO. LCD frame NO.A8 LCD support NO.A9 LCD2004 NO.49 Square nut NO.13 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 11 ShenZhen GETECH CO.,LTD GEEETECH M3 x 16 Screw NO.20 M3 x 12 Screw NO.19 Spacer NO.37 M3 washer NO.5 Knob NO.48 Step1. Assemble the LCD frame and support plate together, screw up with M3 x 16 Screws and M3 square nuts.
  • Page 12 ShenZhen GETECH CO.,LTD GEEETECH Step2. Plug the aircraft- type spacer into the 4 screw hole on the LCD2004. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 13 ShenZhen GETECH CO.,LTD GEEETECH Step3. Screw up the frame and LCD2004 with 4 M3 x 12 Screws and washers. Step4. Cover the knob and screw it up on the cross section, the screw is in the hole. www.geeetech.com Tel: +86 755 2658 4110...
  • Page 14 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 15 ShenZhen GETECH CO.,LTD GEEETECH Step5. Mount the assembled LCD kit onto the base plate. Screw it up with 2 M3 x 16 screws, M3 square nuts and washers. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 16: Mount The Fan

    ShenZhen GETECH CO.,LTD GEEETECH Videos 1.4 Mount the fan Name Part NO. Fan(40x40x10) NO.45 M3 x 16 Screw NO.20 M3 x 25 screw NO.22 M3 Square nut NO.13 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 17 ShenZhen GETECH CO.,LTD GEEETECH M3 nut NO.10 M3 washer NO.5 Step1. Mount the fan on the fan mount; screw it up with 2 M3 x 25 screw and M3 nut and washer. Step2. Mount the assembled fan mount on A2 with a M3 x 16 screw and M3 square nut and washer.

  • Page 18: Mount The Control Board

    ShenZhen GETECH CO.,LTD GEEETECH Videos 1.5 Mount the control board. Name Part NO. Control board NO.50 GT2560 set Spacer NO.37 M3 x 12 Screw NO.19 NO.5 M3 washer www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 19 ShenZhen GETECH CO.,LTD GEEETECH Step1. Plug the aircraft- type spacer into the 4 screw hole on the control board from back to front. Step2. Screw the control board to the base plate (A2) with 4 M3 x 12 Screws and m3 washer.

  • Page 20: Mount The Print Bed

    ShenZhen GETECH CO.,LTD GEEETECH Note the fan is better to be towards the MOSFET of the board. Videos 1.6 Mount the print bed. Name Part NO. Building platform NO.M8 Heatbed NO.54 Counter- NO.14 sunk-head screw NO.28 Spring 3.5 x 20mm www.geeetech.com...
  • Page 21 ShenZhen GETECH CO.,LTD GEEETECH Wing nut NO.12 M3 washer NO.5 *for your convenience, the heatbed for you is pre-soldered, you can mount them directly. step1. Stack the heatbed and the building platform together. Step2. Thread the M3x30mm Hex Counter-sunk-head screw through the two plates and add washers and spring at this end.
  • Page 22 ShenZhen GETECH CO.,LTD GEEETECH Step3. Lock the other end with a wing nut. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 23 ShenZhen GETECH CO.,LTD GEEETECH Here is the finished picture. Videos www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 24: Top Plate Assembly

    ShenZhen GETECH CO.,LTD GEEETECH 2 Top Plate Assembly 2.1 Drive wheel mount Name Part NO. Drive wheel mount NO.A5 M3x25 Screw NO.22 M3 nut NO.10 M3 washer NO.5 Step1. Mount the Drive wheel mount on A1; screw them up with M3 x 25 screws, M3 nut and washers.

  • Page 25: Endstop Mount

    ShenZhen GETECH CO.,LTD GEEETECH Repeat for the other two. Videos 2.2 Endstop mount Name Part NO. Top plate NO.A1 Endstop mount NO.A6 Endstop NO.44 M2.5 x 16 screw NO.17 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 26 ShenZhen GETECH CO.,LTD GEEETECH M3 x 16 Screw NO.20 Square nut NO.13 M3 washer NO.5 M2.5 nut NO.9 Step1. Mount the three end stops onto the Endstop mount (A6) in the same direction, screw with M2.5 x 16 screws and M2.5 nut tightly.
  • Page 27 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 28 ShenZhen GETECH CO.,LTD GEEETECH Step2. Mount the assembled parts onto the top plate. Screw up with M3 x 16 screws, M3 square nuts and M3 washers. Again,note the directions of the endstop. *The opening of the endstop should be in clockwise direction or anti-clockwise direction.
  • Page 29 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 30: Assemble The Carriage

    ShenZhen GETECH CO.,LTD GEEETECH Videos 3 Assemble the carriage Name Part NO. Carriage mount NO.A12 Belt mount NO.M5 Endstop trigger mount NO.M6 Diagonal Rod joint NO.M7 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 31 ShenZhen GETECH CO.,LTD GEEETECH SCS10UU NO.35 Linear Bearing M3x8mm Screw NO.18 M3x12mm Screw NO.19 M5x16mm Screw NO.27 M3x40mm Screw NO.23 Spring NO.29 M3 washer NO.5 rod-end bearing NO.3 holder Step1. Fix the belt mount on the A12 with 2 M3 x12 screws and washer.
  • Page 32 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 33 ShenZhen GETECH CO.,LTD GEEETECH Step3. Put the M3x40mm screw into the Endstop trigger mount with a spring in between. Here you need to use washers. Repeat the steps for the rest two carriages. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 34 ShenZhen GETECH CO.,LTD GEEETECH The 3 carriages should be exactly the same. Step4. Insert the rod-end bearing holder into the diagonal rod joint, fix it with a M3x8mm screw and M3 washer. Repeat the step for the other 2 carriages.

  • Page 35: Assemble The Print Platform

    ShenZhen GETECH CO.,LTD GEEETECH 4 Assemble the print platform 4.1 mount the fan Name Part NO. Spider NO.M1 NO.47 (30x30x10) Fan mount NO.M2 M3 x 16 screw NO.20 M3 x20 screw NO.21 M3 washer NO.5 Step1. Screw the fan onto the slant side of the fan mount with 2 M3x 20 screws and M3 washers.
  • Page 36 ShenZhen GETECH CO.,LTD GEEETECH Step2. Mount the assembled fan mount on the spider with 2 M3 x16mm screws. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 37: Mount The Probe Mount

    ShenZhen GETECH CO.,LTD GEEETECH 4.2 Mount the Probe mount Name Part NO. Probe mount NO.M4 M2.5 x 16 screw NO.17 Mount the Probe mount on the spider with 2 M2.5 x16mm screws from bottom to up. www.geeetech.com Tel: +86 755 2658 4110...

  • Page 38: Mount The Rod-End Bearing Holder And Diagonal Rod

    ShenZhen GETECH CO.,LTD GEEETECH 4.3 Mount the rod-end bearing holder and diagonal rod Name Part NO. Diagonal Rod NO.4 rod-end bearing NO.3 holder Round head screw NO.15 with pad M3 washer NO.5 M3 x 8 screw NO.18 www.geeetech.com Tel: +86 755 2658 4110...
  • Page 39 ShenZhen GETECH CO.,LTD GEEETECH Step1.Insert the rod-end bearing holder into the diagonal rod joint on the spider, fix it with M3x8mm screw and M3 washer. Step2. Fix the Diagonal Rod on the rod-end bearing holder with Round head screw with pad.
  • Page 40 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 41: Mount The Endstop And The Probe

    ShenZhen GETECH CO.,LTD GEEETECH 4.4. Mount the endstop and the probe. Name Part NO. Endstop NO.44 Probe NO.43 Spring(3.5*30) NO.29 Probe NO.M3 Lock ring M2.5 x 8 screw NO.16 Step1. Mount the endstop on the spider close to the probe mount with 2 M2.5 x 8 screws.
  • Page 42 ShenZhen GETECH CO.,LTD GEEETECH Step2. Put the probe into the probe mount and lock it with a lock ring and spring. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 43: Mount The Hotend

    ShenZhen GETECH CO.,LTD GEEETECH 4.5 Mount the hotend. Name Part NO. Hotend NO.57 M4 x 16 screw NO.25 Mount the hotend on the spider with 2 M4 x 16 screws. For the single hotend, use the same way to mount.

  • Page 44: Mount The Smooth Rods

    ShenZhen GETECH CO.,LTD GEEETECH Videos 5 Mount the smooth rods Name Part NO. Smooth Rod NO.1 M4 x 8 Screw NO.24 M8 Washers NO.8 M4 washer NO.6 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 45 ShenZhen GETECH CO.,LTD GEEETECH Step1. Put a M8 washer on the end of the smooth rod.Insert the rods into the holes on the base plate; Step2. Screw up the rods with M4x8 screws ans M4 washers. www.geeetech.com Tel: +86 755 2658 4110...

  • Page 46: Mount The Carriage And The Top Plate

    ShenZhen GETECH CO.,LTD GEEETECH Repeat the above two steps for other 5 rods. Videos 6 Mount the carriage and the top plate Name Part NO. M4 x 8 Screw NO.24 M8 Washers NO.8 M4 washer NO.6 www.geeetech.com Tel: +86 755 2658 4110...
  • Page 47 ShenZhen GETECH CO.,LTD GEEETECH Step1 Slide carriages into the 6 smooth rods separately. Note: *When you do this, you’d better take the top plate here to check if the long screw on the carriage will hit on the opening of the endstop when the carriages raised up.
  • Page 48 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 49: Mount The Belt

    ShenZhen GETECH CO.,LTD GEEETECH Videos 7 Mount the Belt 7.1 Assemble the driving wheel Part name Part NO. Required number Driven wheel NO..33 holder www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 50 ShenZhen GETECH CO.,LTD GEEETECH Driven wheel NO..32 R84zz Ball NO..31 Bearing M3 x16mm screw NO..20 M4 x 25mm screw NO..26 M4 washer NO..6 M4 lock nut NO..11 wing nut NO..12 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 51 ShenZhen GETECH CO.,LTD GEEETECH Step1. Thread the M3 x 16 screw through the Driven wheel holder. Step2. Insert the two MR84zz ball bearings into both ends of the driven wheel. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 52 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 53 ShenZhen GETECH CO.,LTD GEEETECH Step3.Put the M4 x25 screw and M4 washer through the driving wheel. Lock the other end with a M4 lock nut. You may need a wrench to tighten locking nut. www.geeetech.com Tel: +86 755 2658 4110...
  • Page 54 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 55: Add The Belt

    ShenZhen GETECH CO.,LTD GEEETECH *Do not screw it too tight, you should leave enough room for the wheel to turn freely. Repeat the steps for the other 2 driven wheel. 7.2 Add the belt Name Part NO. NO.36 Timing Belt M3 x8 Screw NO.18...
  • Page 56 ShenZhen GETECH CO.,LTD GEEETECH Step2. Fix one end of the belt on the belt mount with a M3x8mm screw and M3 washer. Step3 Pull down another end of the belt to the pulley. Twist the the belt around the pulley, taut the belt to the other end of the belt mount.
  • Page 57 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 58: Connect The Diagonal Rod To The Carriage

    ShenZhen GETECH CO.,LTD GEEETECH Step4 Tighten the wing nut to taut the belt. Repeat the above steps for the other 2 belts. Videos 8 Connect the Diagonal Rod to the carriage Name Part NO. Round head screw with pad NO.15 Connect the Diagonal Rod on the assembled print platform to the carriage.
  • Page 59 ShenZhen GETECH CO.,LTD GEEETECH *Note. The auto-leveling device is towards the X tower, as shown in the picture. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 60: Mount The Extruder

    ShenZhen GETECH CO.,LTD GEEETECH Videos 9 Mount the extruder Lets take the dual extruder as example. Name Part NO. Extruder NO.56A&B NO.27 M5 x 16 screw Find out the locating holes on the top plate; screw up the extruder with 8 M5 x 16 screws and washers from bottom to up.
  • Page 61 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 62: Mount The Filament Holder

    ShenZhen GETECH CO.,LTD GEEETECH Videos 10 Mount the filament holder This step can also be finished at last if you like. Name Part NO. Spool holder NO.A10 Side panel Spool holder NO.A11 Side panel M3x16 screw NO.20 Square nut NO.13 www.geeetech.com...
  • Page 63 ShenZhen GETECH CO.,LTD GEEETECH locking ring NO.30 Screw up A10 and A11 on the top plate separately with M3x16 screw,M3 square nut and washer. EXAMPLE 1: G2 EXAMPLE 2: G2S www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 64 ShenZhen GETECH CO.,LTD GEEETECH For this dual filament spool, you need to use the locking ring to lock the spool on both end. Videos www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 65: Connect The Feeding Pipe

    ShenZhen GETECH CO.,LTD GEEETECH 11 Connect the feeding pipe Name Part NO. Feeding pipe Step1. Plug one end of the tube into the push-fitting on the hotend and the other end into that of the extruder. Before connecting the pipe, you need to match the extruder and the hotend: The positive extruder is refered to as no.1, and the reversed extruder is no.2,...
  • Page 66 ShenZhen GETECH CO.,LTD GEEETECH The hotend in front (near the LCD panel ) is for extrider1 and the one at behind is for extruder 2. * If you need to pull the tube out, please press the blue part while pulling.

  • Page 67: Wiring

    ShenZhen GETECH CO.,LTD GEEETECH 12 Wiring Before you start wiring, please take a look at the wiring schematics. You can see original picture here. Step1. Connect wires for motors. 1) Connect wires for X-axis motor. www.geeetech.com Tel: +86 755 2658 4110...
  • Page 68 ShenZhen GETECH CO.,LTD GEEETECH 2) Connect wires for Y-axis motor. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 69 ShenZhen GETECH CO.,LTD GEEETECH 3) Connect wires for Z-axis motor. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 70 ShenZhen GETECH CO.,LTD GEEETECH 4) Connect extruder motor on either Extruder 1 or 2 for G2; connect on both for G2s. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 71 ShenZhen GETECH CO.,LTD GEEETECH Step4. Connect heating wires. Loosed the screws in the green terminal and put the red wires into the slot and screw it up. * There is no “+” and “-“for heating wires www.geeetech.com Tel: +86 755 2658 4110...
  • Page 72 ShenZhen GETECH CO.,LTD GEEETECH 1） Connect heating wires for heatbed. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 73 ShenZhen GETECH CO.,LTD GEEETECH 2） Connect heating wires for extruder 1. The wires are on hotend 1. 3） Connect heating wires for extruder 2.The wires are on hotend 2. when connecting the wires, you need to pay attention to the correspondence of the wires.
  • Page 74 ShenZhen GETECH CO.,LTD GEEETECH Step4. Connect wires for thermistor. 1) Connect wires for thermistor of heatbed. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 75 ShenZhen GETECH CO.,LTD GEEETECH 2) Connect wires for thermistor of extruder 1.The wires are on hotend 1. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 76 ShenZhen GETECH CO.,LTD GEEETECH 3) Connect wires for thermistor of extruder 2. The wires are on hotend 2. Step5. Connect wires for endstop. 1) Connect wires for endstop of X-axis at X-max. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 77 ShenZhen GETECH CO.,LTD GEEETECH 2) Connect wires for endstop of Y-axis at Y-max. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 78 ShenZhen GETECH CO.,LTD GEEETECH 3) Connect wires for endstop of Z-axis at Z-max. 3) Connect wires for endstop of auto-leveling probe at Z-min. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 79 ShenZhen GETECH CO.,LTD GEEETECH Step6. Connect wires for Fan. 1) Connect fan for control board at FAN1. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 80 ShenZhen GETECH CO.,LTD GEEETECH 2) Connect fan for extruder at FAN2 and/or FAN3. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 81 ShenZhen GETECH CO.,LTD GEEETECH 2) Connect fan for hotend at FAN-PWM. Step7. Connect wires for LCD panel. There are two cables, one is for LCD encoder, the other is for SD card, do not connect them reversed. EXP1 to LCD...
  • Page 82 ShenZhen GETECH CO.,LTD GEEETECH Step8. Connect wires for power input. www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 83 ShenZhen GETECH CO.,LTD GEEETECH Step9.Connect the power cable to the input connector of PSU Name Part NO. NO.59 3D Power cable Power Supply NO.58 Unit Power Cable NO.60 www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...
  • Page 84 ShenZhen GETECH CO.,LTD GEEETECH Connect the wires as shown below: Note the correspondence between the color of wires and the connector. Brown------L Blue ------N Yellow ------GND ------ --+ V Black------COM That is all for the wiring of GT2560. As the PSU is not mounted on the printer, it is kept beside the printer, you should take good care of it;...

  • Page 85: Tidy Out The Wires

    ShenZhen GETECH CO.,LTD GEEETECH 13 Tidy out the wires Use the spiral coil and zip ties to put those wires together. If you tidy up the wires first before wiring,you are advised to mark each wires or connectors in case you mix them up.
  • Page 86 ShenZhen GETECH CO.,LTD GEEETECH www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 - 858...

  • Page 87: Tips

    ShenZhen GETECH CO.,LTD GEEETECH So far, the Rostock mini G2( G2s) has been fully assembled. 14 Tips Before even attempting the first print it is vital that the printer is correctly calibrated. Skipping or rushing this step will result in frustration and failed prints later, so it is important to take the time to make sure the machine is correctly set up.
  • Page 88 ShenZhen GETECH CO.,LTD GEEETECH addressed.  Frame is stable and correctly aligned.  Rods are correctly aligned  Belts are taut.  Driving wheel turns smoothly  Bed is level in relation to the path of the extruder.  Filament rolls freely from the spool, without causing too much tension on the extruder.
