Step 3.

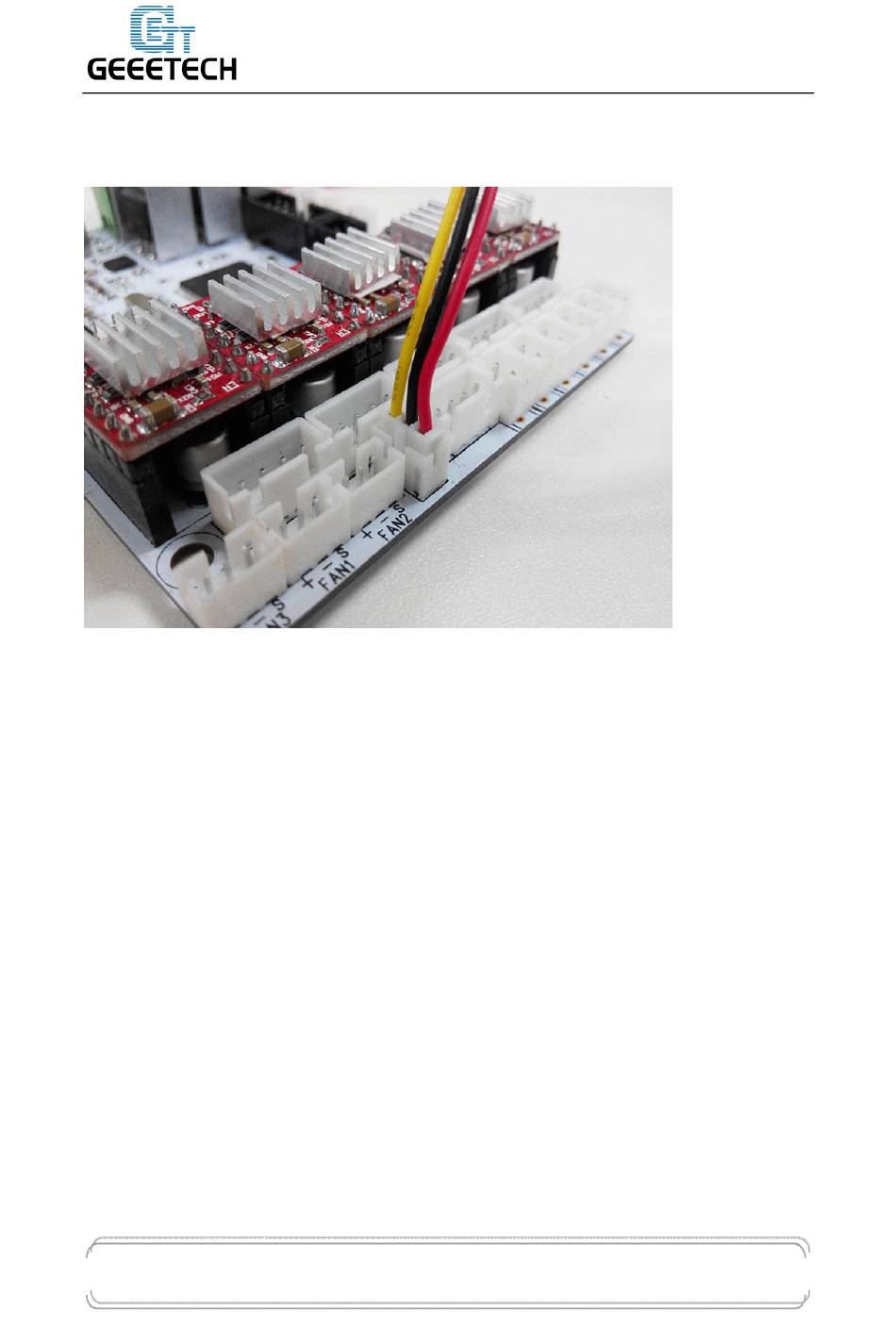

Connectthe hot-end fan to the FAN-PWM connector plug.
7Connect wires for LCD panel.
Note:
The LCD controller comes with connectors and two cables, the are not to
be mixed up as this could cause damage to the LCD, SD card reader or
controller board, so please take care.
Step 1.
Connect the first cable from EXP1 to LCD, then connect the second cable
from EXP2 to SD card.
EXP1 to LCD
EXP2 to SD card
