*Note:

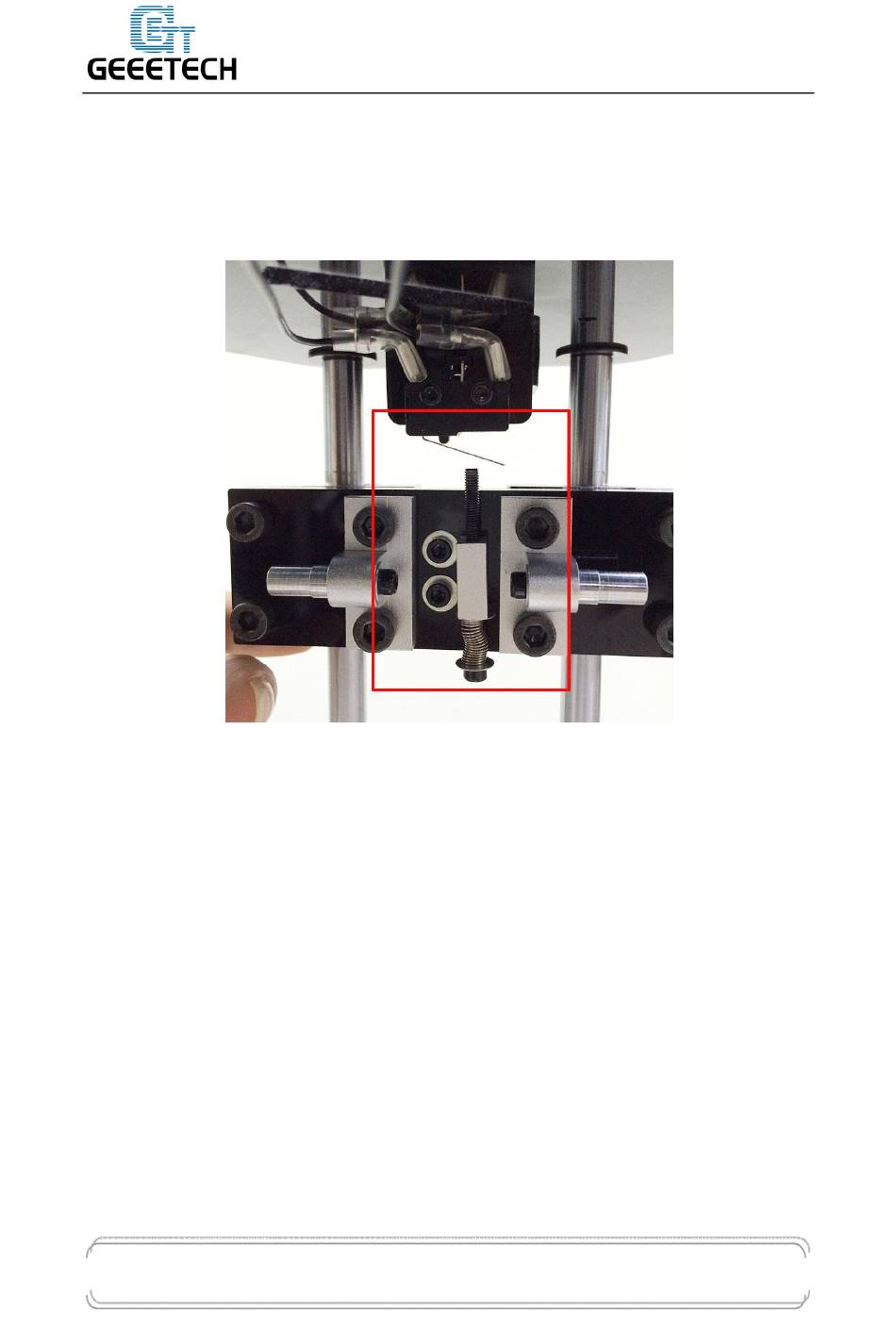

At this point it may be a good opportunity to check that the carriage
endstop screws (#23) actually connect with the endstops (#44). Align the
top place (#A1) on to the top of the rods (#1) and check that the endstops
are correctly orientated.
*Note:
If you find it difficult to slide the carriage along the rod, or the carriage
does not slide smoothly, you can slightly loosen the screws on the difficult
linear bearing (#35) to release some alignment pressure with the smooth
rod (#1).
Step 2.
Slide a M8 washer (#8) on each top of each smooth rod (#1) and then align
the top plate (#A1) and smooth rods (#1) until with some pressure the top
place (A1) slides on to the three towers. Fix the top place (A1) in place
with the M4x 8 screws (#24) and M4 washers (#6).
www.geeetech.com
ShenZhen GETECH CO.,LTD
GEEETECH
Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858
Page
46
