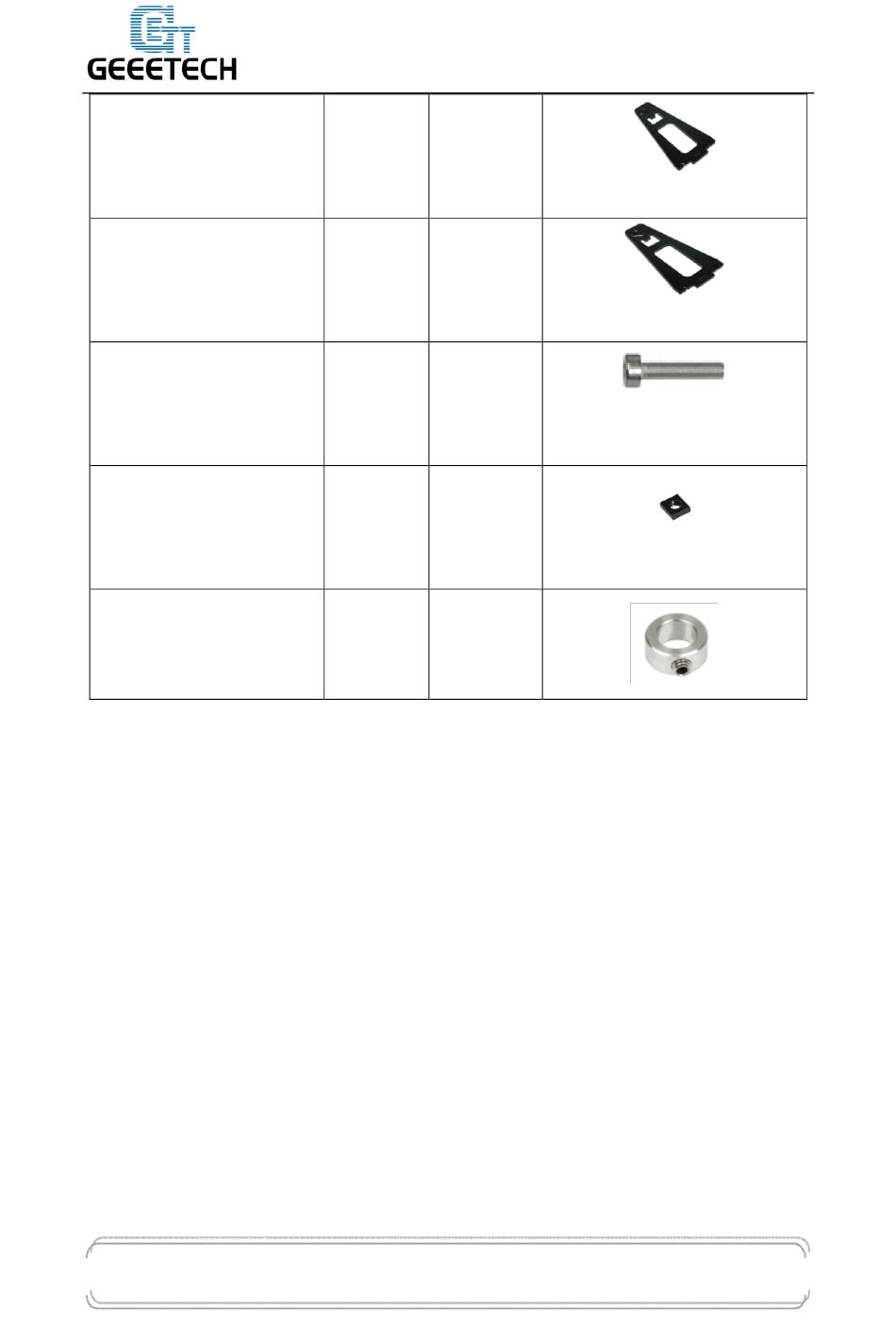

Spool holder
Side panel
Spool holder
Side panel
M3x16 screw
Square nut
locking ring
Step 1.
Fit the spool holder side panel (#A10) in to the locating holes on the top
plate (#A1) and fix in place with M3x16 screw (#20), M3 square nut (#13)
and washer (#5).
Step 2.
Repeat the previous step with the other spool holder side panel (#A10)
fixing in place with M3x16 screw (#20), M3 square nut (#13) and washer
(#5).
Step 3.
Slide the spool holder round rod (#2) through the holes provided in the
spool holder side panels (#A10 & #A11) and lock the spool holder rod (#2)
in place with the locking rings (#30). You can finish this step later when
you start printing.
EXAMPLE 1: G2
www.geeetech.com
ShenZhen GETECH CO.,LTD
GEEETECH
#A10
#A11
#20
#13
#30
Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 – 858
1
1
4
4
2
