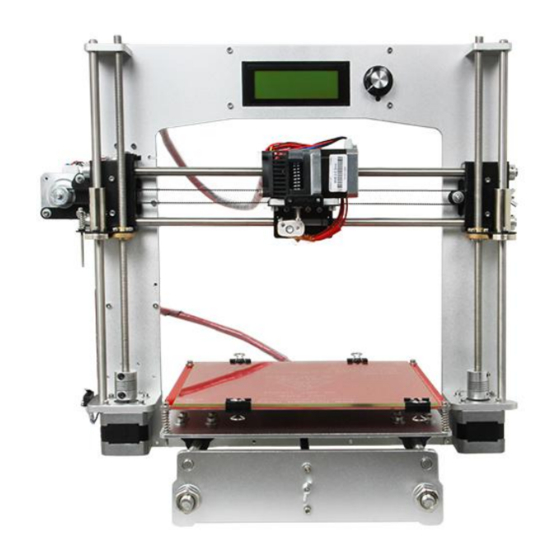

Geeetech Aluminum Prusa I3
3D Printer
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aluminum Prusa I3 and is the answer not in the manual?

Questions and answers

Related Manuals for Geeetech Aluminum Prusa I3

Summary of Contents for Geeetech Aluminum Prusa I3

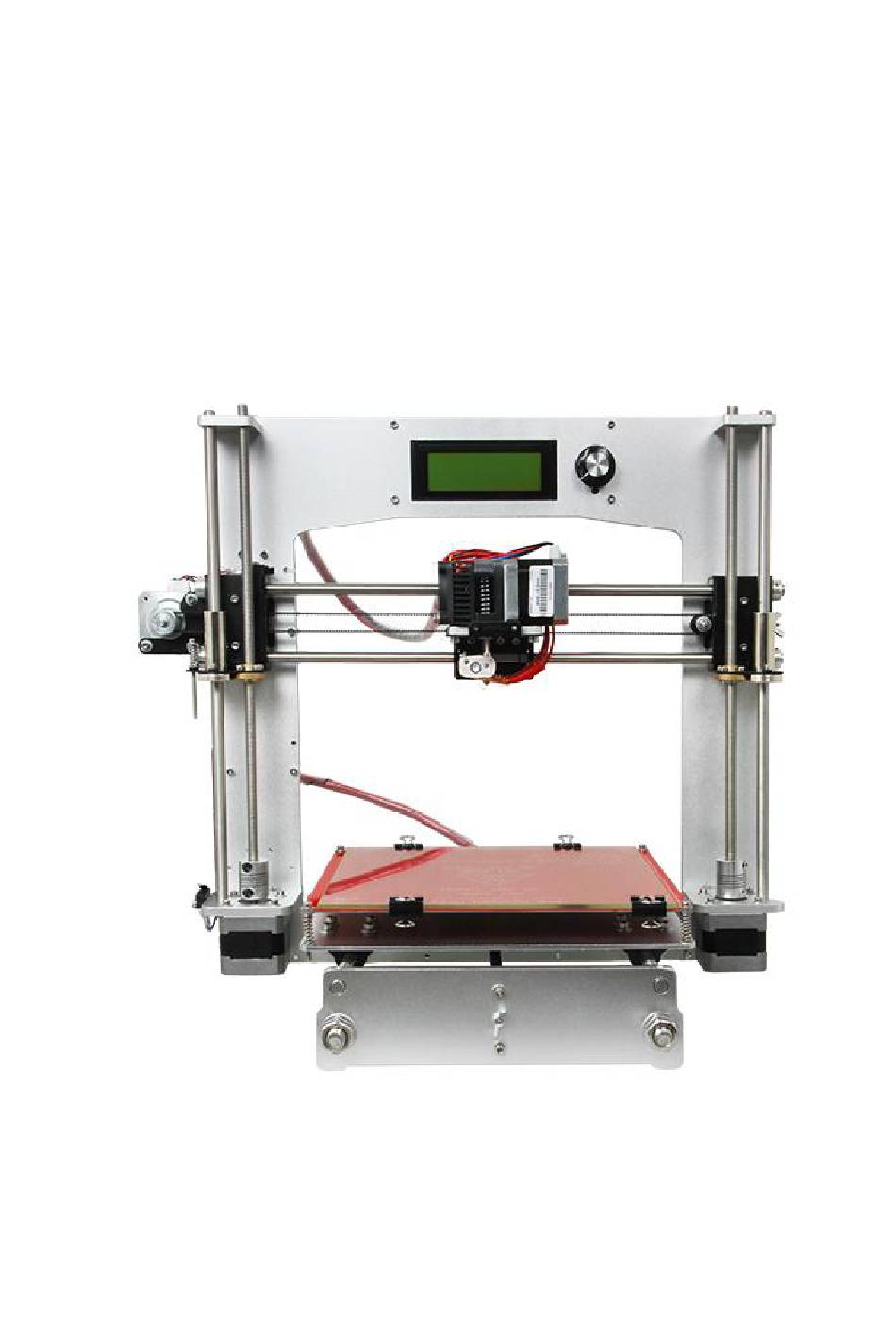

  • Page 1 GEEETECH Geeetech Aluminum Prusa I3 3D Printer...

  • Page 2: Copyright Declaration

    The copyright of this manual belongs to the Shenzhen GETECH CO., LTD. (hereinafter referred to as the "Geeetech"), and all rights reserved. No part of this specification should be reproduced or extracted in any forms or means without the prior written consent of...

  • Page 3: Technical Support

    If you are interested in the technology of 3D printing, flight control and U-home, welcome to Geeetech, we have series of made-up products, main boards, modules and a variety of peripherals for you. Or if you are looking for relevant information or technical support, please log in our Forum where you can find anything you want about open source.

  • Page 4: Safety Instruction

    We have provided detailed instructions to help you assemble it easily, please download at geeetech.com. However ultimately we cannot be responsible for your health and safety whilst building or operating the...
  • Page 5 GEEETECH anything over 12V but bear in mind there can still be high currents involved and even at 12V they shouldn’t be taken lightly. High temperatures are involved with 3D Printing, the Extrusion nozzle of the hot end can run about 230°C, the heated bed runs 110°C and the molten plastic extruded...
  • Page 6 In sum, this Aluminum Prusa I3 3D Printer DIY kit offers a significant experience for you to learn 3D printing from scratch, this kit that includes all the parts you need to build your first 3D printer will be the best valued purchase for you.

  • Page 7: Package List

    PACKAGE LIST: This list includes all the parts required to assemble your Aluminum Prusa I3 3D Printer. After you received your package, please check if all the parts listed are included. Also make sure all the components are in good condition and not damaged during shipping.
  • Page 8 GEEETECH D8*L410mm Smooth Rod Y-axis Threaded M8*L300mm Z-axis Threaded M10*L450mm Y-axis M2.5 M2.5 Washers M3 Washers M4 Washers M10 Washers Spring washer Hex Nut Hex Nut Hex Nut Lock nut Wing nut...
  • Page 9 GEEETECH Z-axis nut M8（tin-bronze） screw M2.5x8mm screw M2.5x12mm Screw M3x6mm Screw M3x8mm screw M3x10 mm screw M3x16 mm screw M3x20 mm screw M3x25mm screw M3x30 mm screw M3x40 mm screw M3x50 mm...
  • Page 10 GEEETECH Screw M4x6 mm screw M4x 12 mm screw M4x25 mm Lock screw M3x4 mm Lock ring With M4x4 mm jimmy bolt length 20mm Spring Linear Bearing PCS8UU...
  • Page 11 GEEETECH Linear Bearing LM8LUU Linear LMH8LUU Bearing Ball Bearing MR84zz Driven wheel Sheet metal part holder Driving wheel...
  • Page 12 GEEETECH Belt mount Sheet metal part Coupling 5-8mm 20tooth Inner Pulley diameter=5mm Timing Belts L=900mm Belt bracket...
  • Page 13 GEEETECH Spacer M3x8 Dovetail 19mm clamp 2-pin End stop Blue,red and black 40x40x10mm For the fan Extention Of control board wire 30cm Extention For the fan wire On extruder 120cm...
  • Page 14 GEEETECH 4Pin DuPont cable for Z motor Knob For LCD control Spiral Coil 3 meters Nylon ties Heatbed set 1set Borosilicate 210mmx200mm glass x3mm...
  • Page 15 GEEETECH AC Input: 115V/1.5A Power supply 230V/0.75A Unit DC Output： 12V/15A Connect board to Power Cable 3D Power With plug Cable Extruder extruder...
  • Page 16 GEEETECH Control board Sanguinololu 1 set +4A4988 Stepper 42SHD0217-24 motor B 1.5A(U) LCD 2004 LCD2004+ cable USB cord A-BA Aluminum Plates...
  • Page 17 GEEETECH XZ Frame I3-01 Y Front Side I3-02 Support Y Rear Side I3-03 Support Fan Fix Block I3-08 Z Motor Fixed I3-04 Plate Z Top Support I3-05 plate...
  • Page 18 GEEETECH Y Building I3-20 platform Y Motor Fixed I3-09 Plate Guide BlockA I3-11 Guide BlockB I3-10 Connecting I3-07 fender Sheet metalpart...
  • Page 19 GEEETECH X-axis left left right X-axis right PI3F-S07 X Carriage Bearing PI3F-08 Bracket Extruder PI3B-S01 Holder...
  • Page 20 GEEETECH Free Add-on Ejector pin Grater Screw- driver Starter 3 meters filament...
  • Page 21 GEEETECH Spool holder Acrylic Download the building instruction here (pd f) here: http://www.geeetech.com/geeetech-aluminum-prusa-i3-3 d-printer-kit-p-944.html For detailed build instruction video, please subscribe our YouTube. https://www.youtube.com/user/geeetech/playlist...

  • Page 22: General Care And Maintenance

     Don’t leave your printer in shady and moist places, which may exacerbate the problems associated with erosion.  The three axes of the Geeetech Prusa I3 Aluminum printer are lubricated with grease for smooth operation and can last for a long time.
  • Page 23 SUPPROT Thanks for choosing Geeetech, we strive to provide a satisfied and pleasant shopping experience for you, but we do understand there may be some questions you may encounter in using our product. If so, you can contact us directly or post on our forum, our technique staff will help you resolve it.
  • Page 24 GEEETECH GEEETECH www.geeetech.com...
