Functional Description

4.1

Block Diagram

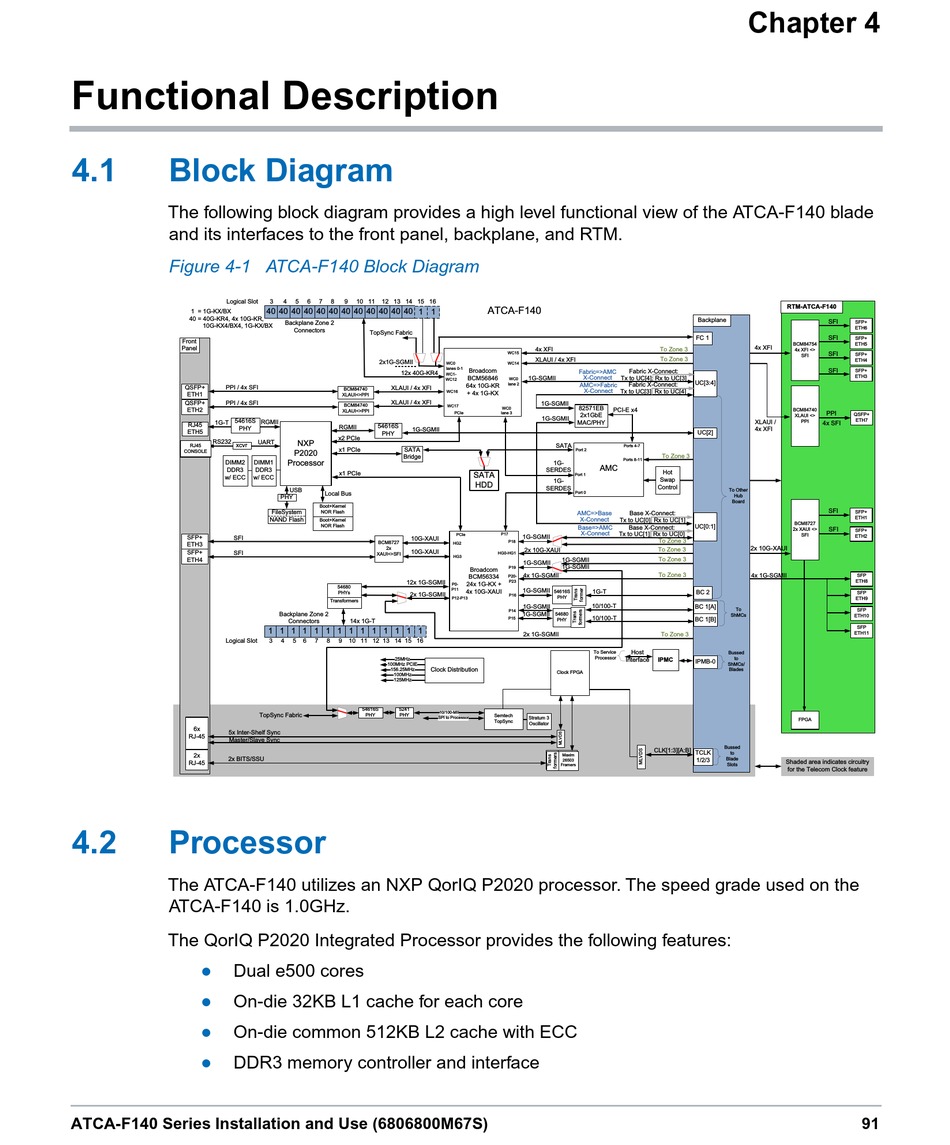

The following block diagram provides a high level functional view of the ATCA-F140 blade
and its interfaces to the front panel, backplane, and RTM.

Figure 4-1 ATCA-F140 Block Diagram

Logical Slot
1 = 1G-KX/BX
40 = 40G-KR4, 4x 10G-KR,
10G-KX4/BX4, 1G-KX/BX
Front
Panel
QSFP+ PPI / 4x SFI
ETH1
QSFP+
PPI / 4x SFI
ETH2
54616S
1G-T
RJ45
PHY
ETH5
RS232
xcvr
RJ45
CONSOLE
DIMM2
DDR3
w/ ECC
SFP+
SFI
ETH3
SFP+
SFI
ETH4
Logical Slot
6x
5x Inter-Shelf Sync
RJ-45
Master/Slave Sync
2x
2x BITS/SSU
RJ-45
4.2

Processor

The ATCA-F140 utilizes an NXP QorIQ P2020 processor. The speed grade used on the
ATCA-F140 is 1.0GHz.
The QorIQ P2020 Integrated Processor provides the following features:
 Dual e500 cores

On-die 32KB L1 cache for each core
 On-die common 512KB L2 cache with ECC

DDR3 memory controller and interface
ATCA-F140 Series Installation and Use (6806800M67S)
