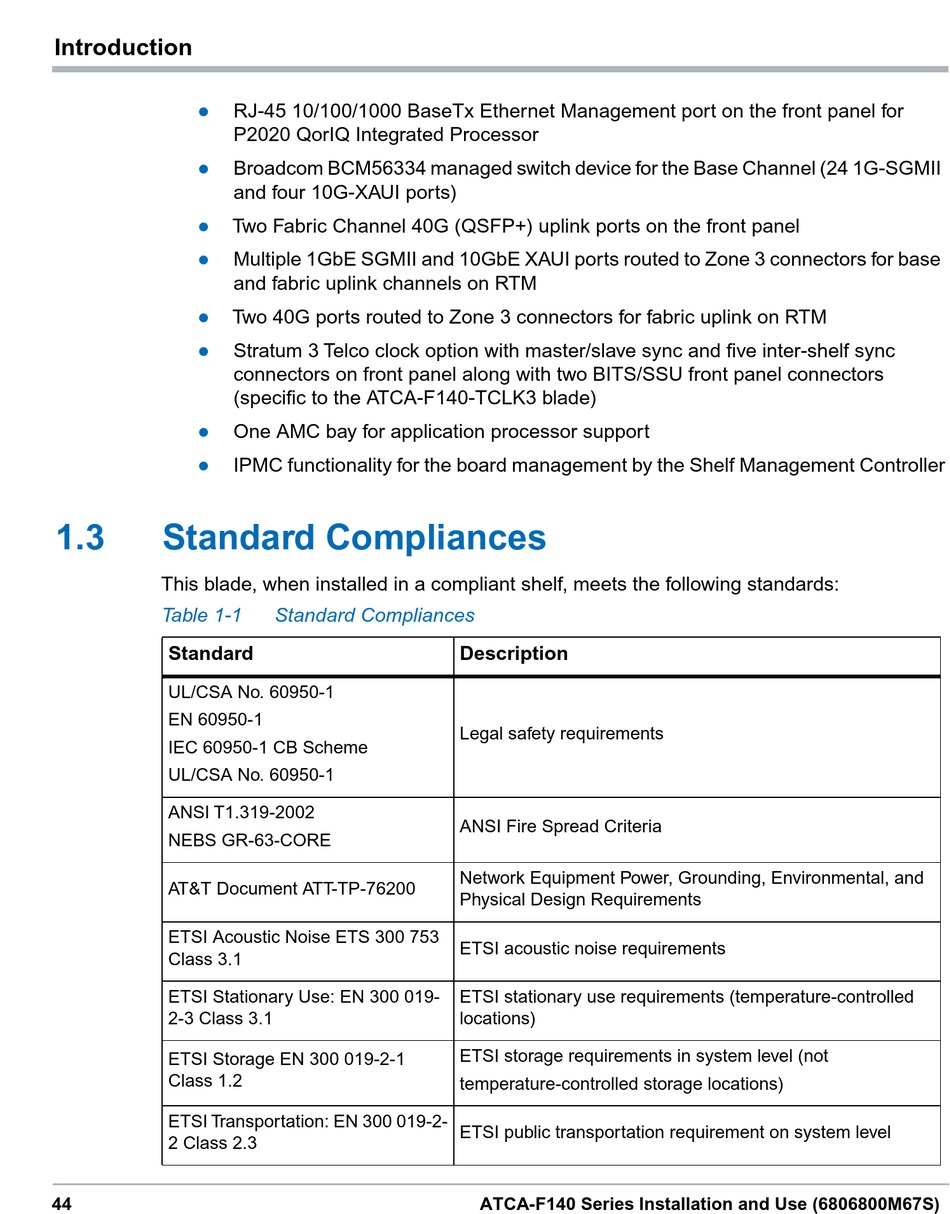

Introduction
 RJ-45 10/100/1000 BaseTx Ethernet Management port on the front panel for
P2020 QorIQ Integrated Processor
 Broadcom BCM56334 managed switch device for the Base Channel (24 1G-SGMII
and four 10G-XAUI ports)
 Two Fabric Channel 40G (QSFP+) uplink ports on the front panel
 Multiple 1GbE SGMII and 10GbE XAUI ports routed to Zone 3 connectors for base
and fabric uplink channels on RTM
 Two 40G ports routed to Zone 3 connectors for fabric uplink on RTM
 Stratum 3 Telco clock option with master/slave sync and five inter-shelf sync
connectors on front panel along with two BITS/SSU front panel connectors
(specific to the ATCA-F140-TCLK3 blade)
 One AMC bay for application processor support
 IPMC functionality for the board management by the Shelf Management Controller
1.3

Standard Compliances

This blade, when installed in a compliant shelf, meets the following standards:
Table 1-1
Standard
UL/CSA No. 60950-1
EN 60950-1
IEC 60950-1 CB Scheme
UL/CSA No. 60950-1
ANSI T1.319-2002
NEBS GR-63-CORE
AT&T Document ATT-TP-76200
ETSI Acoustic Noise ETS 300 753
Class 3.1
ETSI Stationary Use: EN 300 019-
2-3 Class 3.1
ETSI Storage EN 300 019-2-1
Class 1.2
ETSI Transportation: EN 300 019-2-
2 Class 2.3
44
Standard Compliances
Description
Legal safety requirements
ANSI Fire Spread Criteria
Network Equipment Power, Grounding, Environmental, and
Physical Design Requirements
ETSI acoustic noise requirements
ETSI stationary use requirements (temperature-controlled
locations)
ETSI storage requirements in system level (not
temperature-controlled storage locations)
ETSI public transportation requirement on system level
ATCA-F140 Series Installation and Use (6806800M67S)
Introduction
