3.4

Module Connectors

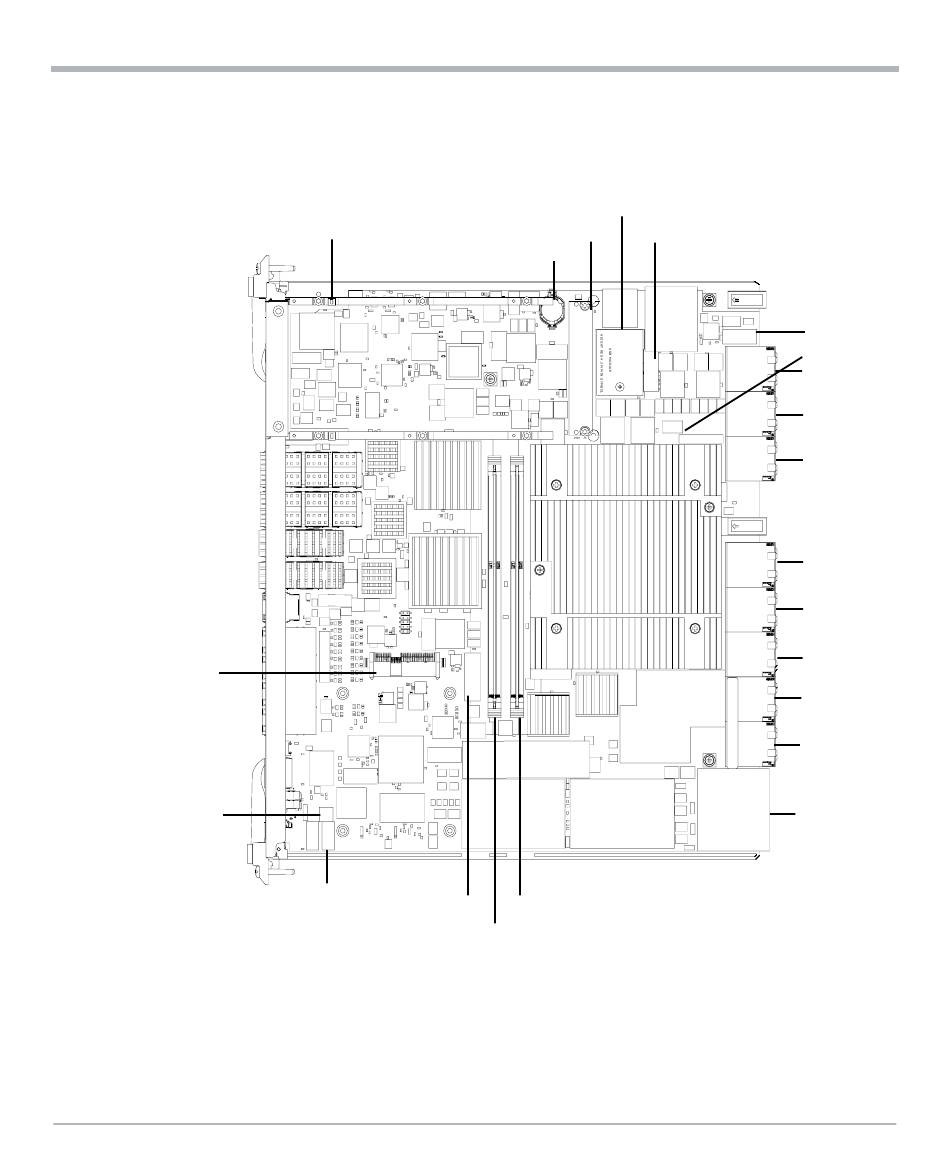

Figure 3-2 Module Connector Locations

J11 SATA
Connector
SW2
DIP Switch
ATCA-F140 Series Installation and Use (6806800M67S)
SW1 DIP Switch
ASSY#
PIN1 PIN1
P17 SPI Flash Prog
P12 JTAG Header
J2 DIMM Socket
Controls, LEDs, and Connectors
P8 eUSB Connector
J8 AMC Connector
P50 COP Header
Battery
120 240
120 240
J3 DIMM Socket
P15 H8S debug
P9 H8S console
J30
J31
COO LABEL
J32
J20
J21
J22
J23
J24
P10
