Functional Description
The 82571EB uses an external SPI flash device to store configuration data, MAC
addresses, etc. An Atmel AT25128B device is used for this purpose.
4.10.2
Channel Cross-Connect

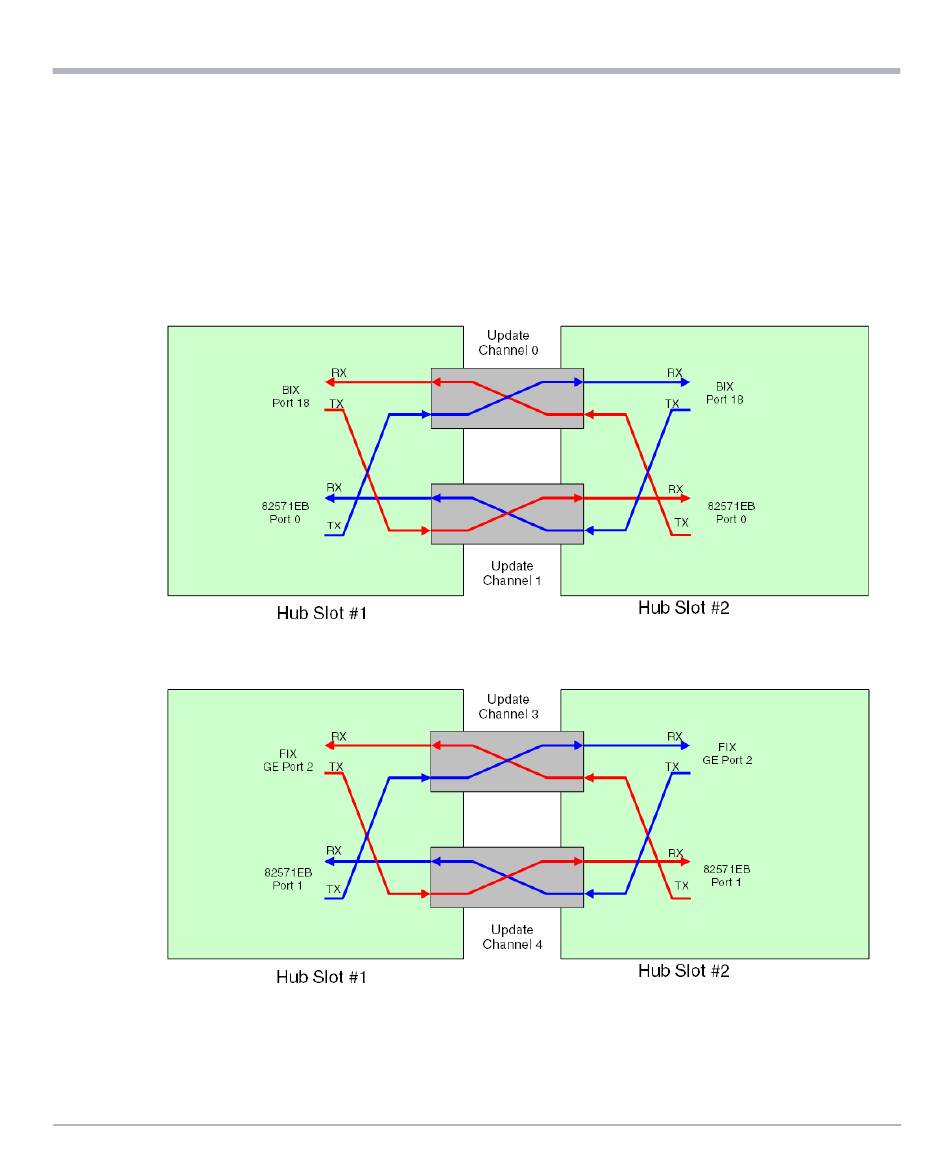

The base and fabric channel cross-connect scheme using the 82571EB is shown in the
figures below
Figure 4-4 Base Channel Cross-Connect
Figure 4-5 Fabric Channel Cross-Connect
106
ATCA-F140 Series Installation and Use (6806800M67S)
Functional Description
