Removing Qsfp+ Transceiver Modules - SMART Embedded Computing ATCA-F140 Series Installation And Use Manual

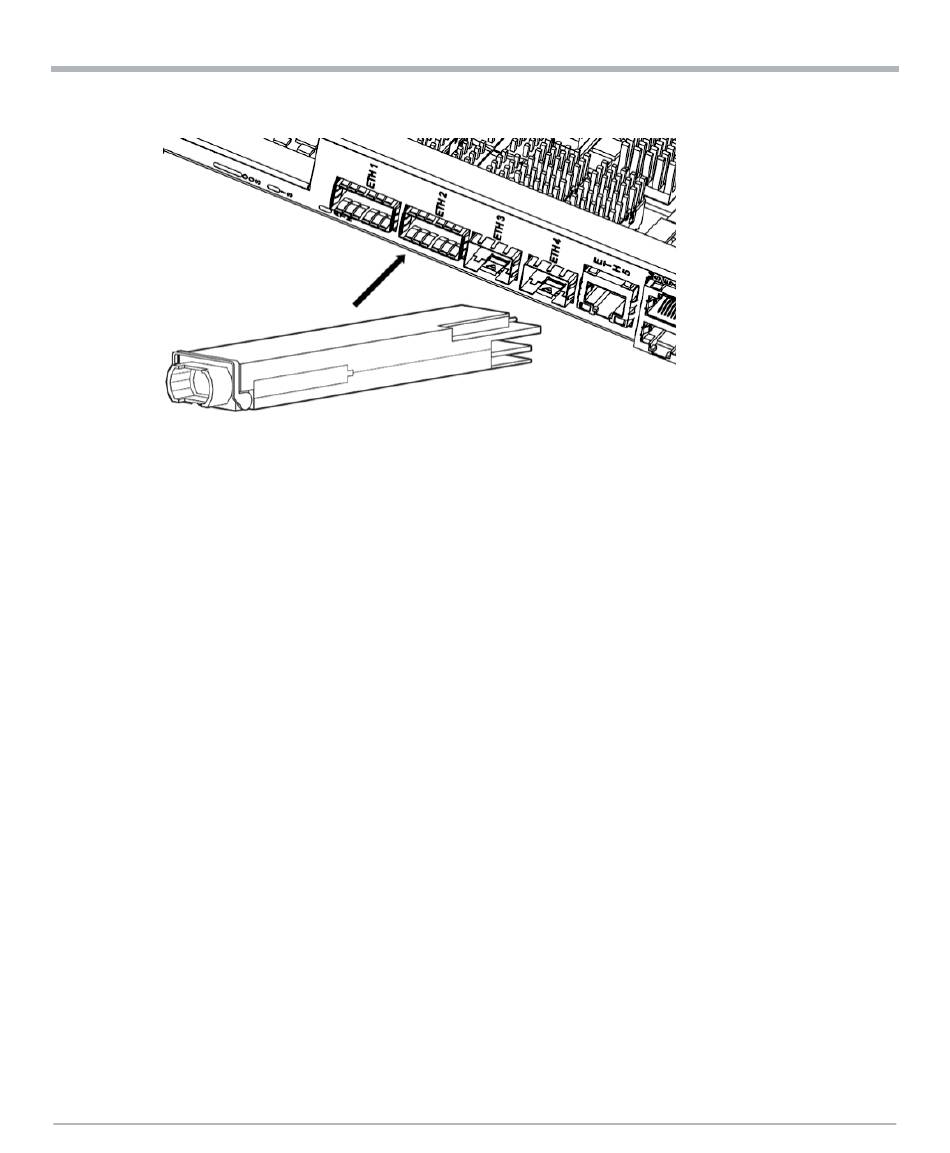

– For QSFP+ transceivers with a pull-tab, make sure that the identifier label is on top.
– Firmly press the front of the QSFP+ transceiver to push fully the transceiver in the
module's transceiver socket. Make sure that it is fully engaged to prevent it from
being accidentally disconnected.
– For optical QSFP+ modules, reinstall the dust plug into the portal. Do not remove
it until the network interface cable will be attached.
2.9.2

Removing QSFP+ Transceiver Modules

Removal Procedure
1. For optical QSFP+ transceivers, disconnect the network interface cable from the
QSFP+ transceiver connector.
2. Perform the following steps to remove QSFP+ transceivers with a bail-clasp latch:
– Turn the bail-clasp down to the horizontal position.
– Install the dust plug into the transceivers optical bore.
– Hold the sides of the QSFP+ transceiver and slide it out of the module socket.
3. Perform the following steps to remove QSFP+ transceivers with a pull tab latch:
– Install the dust plug into the transceiver' optical bore.
– Hold the tab and pull the receiver gently to release the transceiver from the socket.
– Slide the transceiver from the socket.
4. Place the QSFP+ transceiver into an anti-static bag.
