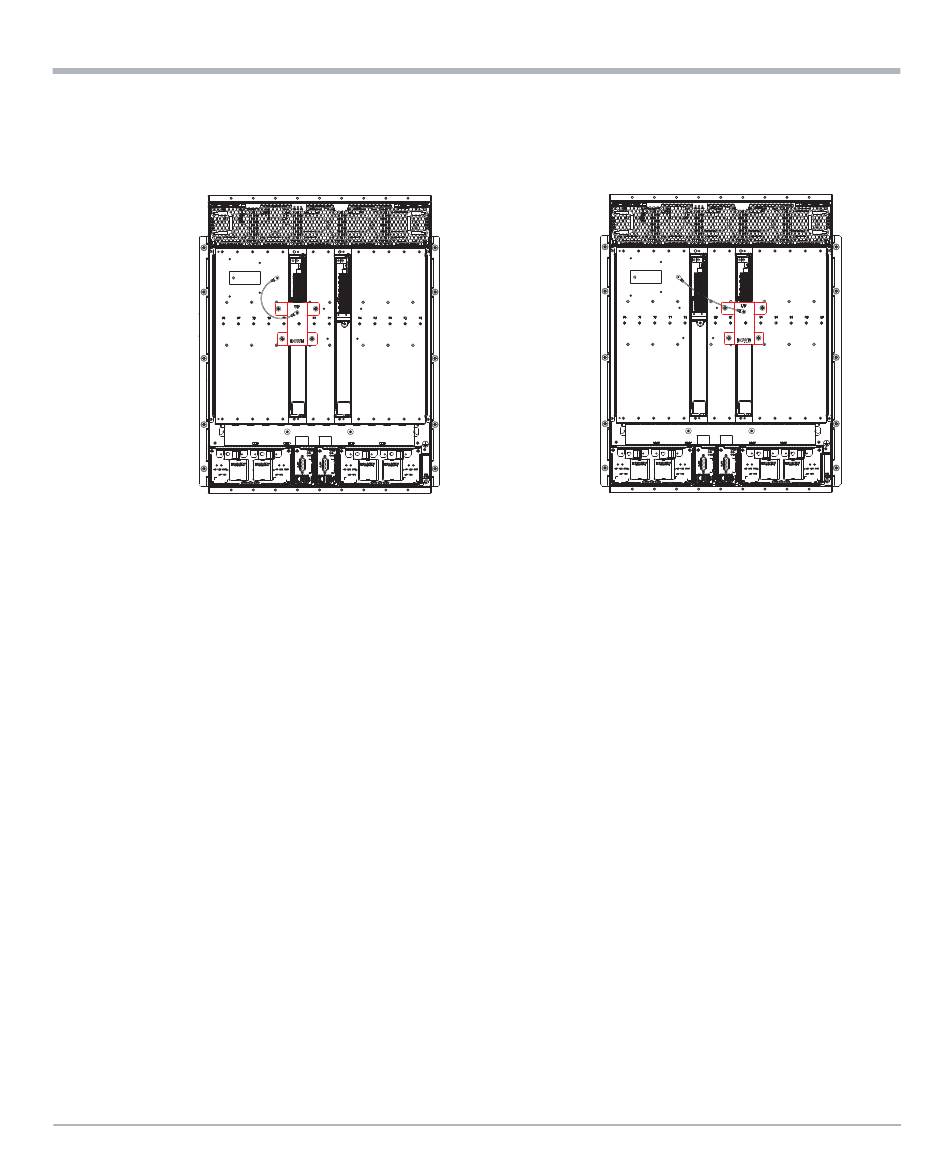

Figure B-5 Alignment Tool Location on Rear of Chassis (Slot 9 and Slot 6)

Alignment Tool in Slot 9 Position
3. Using a screw driver, insert the tip into the locator hole on the alignment tool and loosen
the screw to the Zone 2 attachment block.
4. Refer to
removal instructions.
5. When installing the RTM screws, torque should be 1.325 in-lbs (0.15 N-m).
B.3

Ordering and Support Information

The data sheet for the ATCA-F140-D contains a complete list of available blade variants
and blade accessories. Refer to
SMART Embedded Computing sales representative for the availability of other variants.
For technical assistance, documentation, or to report product damage or shortages,
contact your local SMART EC sales representative or visit
https://www.smartembedded.com/ec/support/
134
Blade Installation and Removal on page 53
Appendix C Related Documentation
Alignment Tool in Slot 6 Position
for additional blade installation and
.
ATCA-F140 Series Installation and Use (6806800M67S)
ATCA-F140-D Information
or consult your local
