ATCA-F140-TCLK3 Information
A.3.1

Telecom Clocking Subsystem

This section shows an overall block diagram of the telecom clocking subsystem. Later
sections elaborate on the functionality of each block.

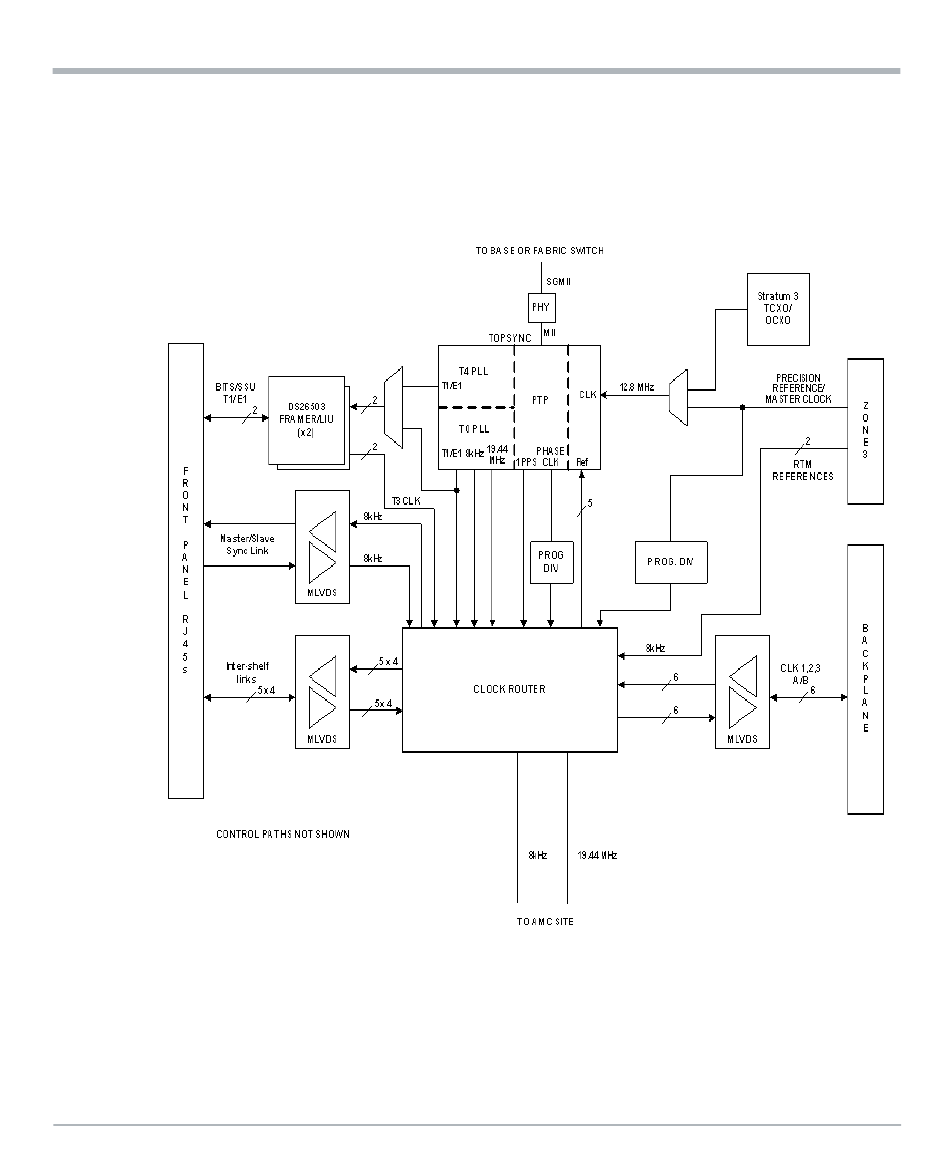

Figure A-2 Telecom Clocking Subsystem

A.3.2

BIT/SSU Support

Many offices where the ATCA-F140-TCLK3 is likely to be deployed includes a central
Building Integrated Timing Supply (BITS) or Source Synchronization Unit (SSU).
128
ATCA-F140 Series Installation and Use (6806800M67S)
ATCA-F140-TCLK3 Information
