Geberit Chicago Faucets Commander Manual page 7

Section 1: Introduction, Device, Updates
1.4 Updating Your Device
UPDATE STEPS
2. Flash programming update (Continued)

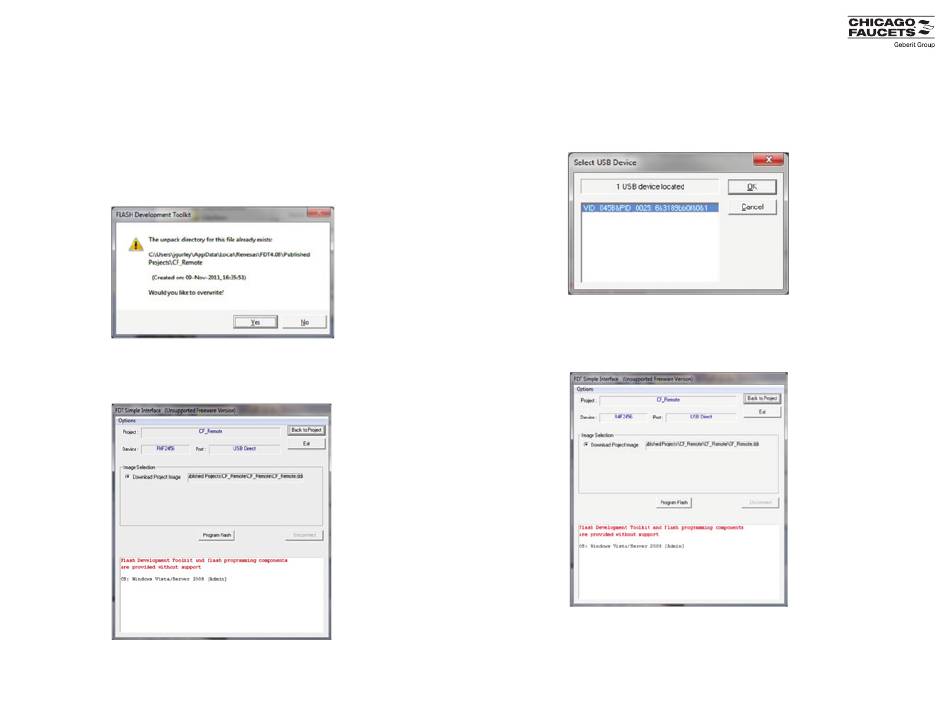

2.4 Run the flash utility - Find and double-click the Verxx.xx.xx.fpf4 file
or launch the utility.
Note: If you have already performed a prior
update you might get the following warning:
Simply click "Yes" and continue on.
2.5 This window should pop up. Tap the "Program Flash" button.
Chicago Faucets Commander Handheld Programming Unit User Guide
® ™
(Continued)
2.6 You will be promoted to Select USB Device.
There should only be one VID in the list box as shown.
Simply tap the "OK" button to continue. The device will program.
2.7 Click on the "Disconnect" button to finish.
2.8 Click on the "Exit" button to exit the Flash Development Toolkit.
2.9 Tap "Reset" on Commander Unit. On power up, Commander Unit lands at
Calibrate Screen. It's recommended to Calibrate the touch
screen after every RESET. See Section 1.3 for more details.
To escape without a Calibration sequence, tap "Cancel".
Page 7 CF2026 / 07/19
