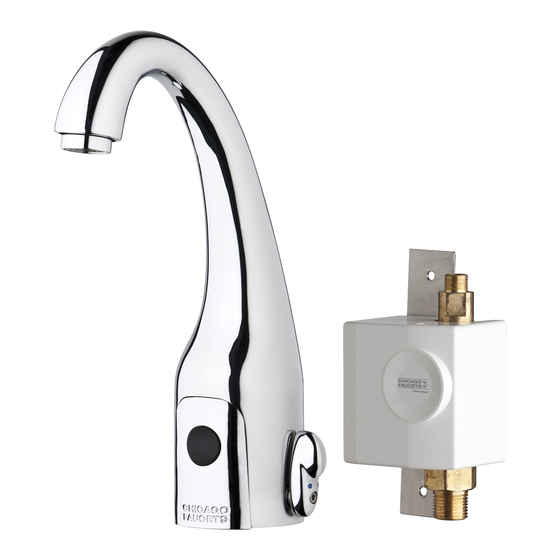

HyTronic with SSPS User Guide Installation Instructions
®
For single supply and dual supply HyTronic faucets
Overview
Chicago Faucets deck mounted faucets feature cast brass bodies and precision cartridges for years of reliable operation. Metering models with adjustable
cycle time offer true water savings.
Notice to the Installer
• Read this entire instruction sheet before installing to ensure proper installation.
• Installation must comply with local codes and ordinances.
Pressurized plumbing fixtures shall be installed in accordance with manufacturer's recommendations. The supply piping to these devices shall be securely
anchored to the building structure to prevent installed device from unnecessary movement when operated by the user. Care shall be exercised when installing
the device to prevent marring the exposed surface.
NOTE: The information in this manual is subject to change without notice.
Please leave this manual with the facility manager after completing the faucet installation. This document contains information necessary for routine maintenance
and servicing.
NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if replacing. Clean faucet basin and clear away debris. Flush all supply
lines before connecting to faucet. Failure to do so can result in debris clogging the inlets and/or cartridges.
NoTe: Before installing a new ceramic cartridge flush lines completely.

Safety Information

Read this entire user guide to ensure proper installation. Compliance and conformity to local codes and ordinances is the responsibility of the installer.
The following safety notes must always be complied with during handling of this product:
• Make sure there is enough space and lighting available during installation and service.
• Do not modify or convert this Chicago Faucets product yourself. All warranties will be voided.

Important

• Installation may be performed at different times of construction by different individuals. For this reason, these instructions should be left on-site with the
facility or maintenance manager.
• Pressurized plumbing fixtures shall be installed in accordance with manufacturer's recommendations. The supply piping to these devices shall be securely
anchored to the building structure to prevent installed device from unnecessary movement when operated by the user. Care shall be exercised when installing
the device to prevent marring the exposed significant surface.
• Do not use pipe dope.
• Flush all the water supply lines before making connections.

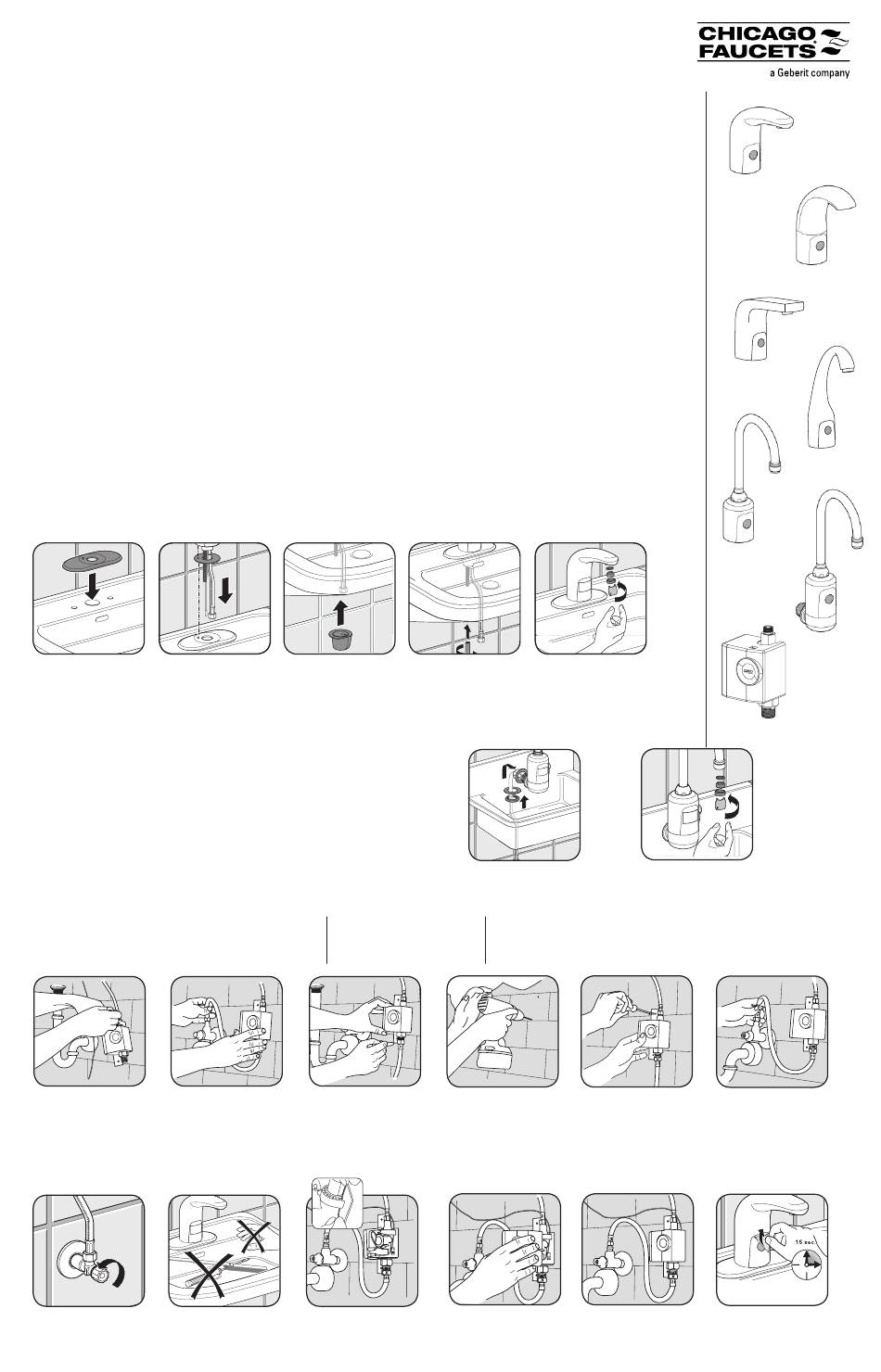

Mounting of Deck Mount Faucet (Single Supply Unit Shown)
Prerequisites
• Supply valve is installed
• Water supply lines are flushed properly
NoTe: If faucet was installed with cover plate, secure with basin washer, flat washer and locknut.
1. Mount cover plate if 2. Mount gasket and put
required. Plumber's faucet into sink.
putty is recommended
to seal cover plate to
the sink. Security pin
must be located on
the left side.
Mounting of Wall Mount Faucet (Single Supply Unit Shown)
Prerequisites
• Supply valve is installed
• Water supply lines are flushed properly
Important
• It is not necessary to unscrew the connection between braided hose and housing to
install the product.
• Do not remove protective covering from sensor until starting up faucet operation.

Mounting of SSPS Generator

The SSPS Generator comes with all the components needed for
installation, however, some tools and supplies are not included.
• Basin Wrench • Hand Drill
• Adjustable Wrench • Adjustable Locking Pliers
1. Connect SSPS unit. 2. Position SSPS under
Attach to faucet and sink. Carefully position
install water supply line. to allow connection of
water lines and wiring.
7. Fully open supply 8. Remove all items from
valve. sink.
For additional technical assistance, call 800/TEC-TRUE (800-832-8783) or visit our website at chicagofaucets.com.
1
Important
• It is not necessary to unscrew the connection between braided hose and housing to install the product.
• Do not remove protective covering from sensor until starting up faucet operation.
• Do not tighten locknut before step 4 is completed.
3. Mount bracket from
underneath. Place
hoses through large
opening and mounting
rod through small
opening. Make sure
flange sits securely
against surface.
Includes
• SSPS Generator Unit
• Electronics Module and Holder
• Green Power Adapter
• Hose
3. Mark holes. Position
mounting bracket and
mark mounting holes.
9. Remove cover and
connect faucet wire to
SSPS and secure into
wire harness.
4. Place nut onto 5. Install aerator and
mounting rod and
tighten with aerator key
tighten with wrench.
(supplied). Aerator: 1.0
If faucet was installed
gpm (standard) and
with cover plate, secure
optional 0.5 gpm insert.
with basin washer, flat
(Use 1.5 gpm for dual
washer and locknut.
supply).
1.
Mount gasket, put faucet into
opening and tighten. Install aerator
and tighten with aerator key
(supplied).
IMPORTANT: Do not use pipe dope on faucet and supply connections.
Possible solenoid contamination could occur and will void any warranty.
4. Drill holes. Drill holes
for screw anchors.
10. Attach the cover. Faucet is ready to run through
programming sequence.
Traditional Lavatory
Edge
Gooseneck
SSPS Generator
2.
For gooseneck faucets, tighten
spout with wrench. Aerator: 1.0 gpm
(standard) and optional 0.5 gpm insert
5. Secure SSPS to wall. 6. Attach inlet hose to supply
Insert anchors into holes and turn on water. With
and mount SSPS unit to water on, check system
wall with supplied screws. for leaks.*
*For dual-supply SSPS
models, connect the hot
water supply line to the
SSPS unit and the cold
water supply line directly
to the faucet.
11. Remove protective
covering from sensor.
Wait for 15 seconds
for faucet to calibrate
to its environment.
Contemporary Lavatory
Curve
Wallmount
