Section 1: Introduction, Device, Updates
1.4 Updating Your Device
UPDATE STEPS
3. Update the Resource.bin file
3.1. Connect device to PC via USB cable if not already connected (supplied)
3.2. Power on Commander Unit

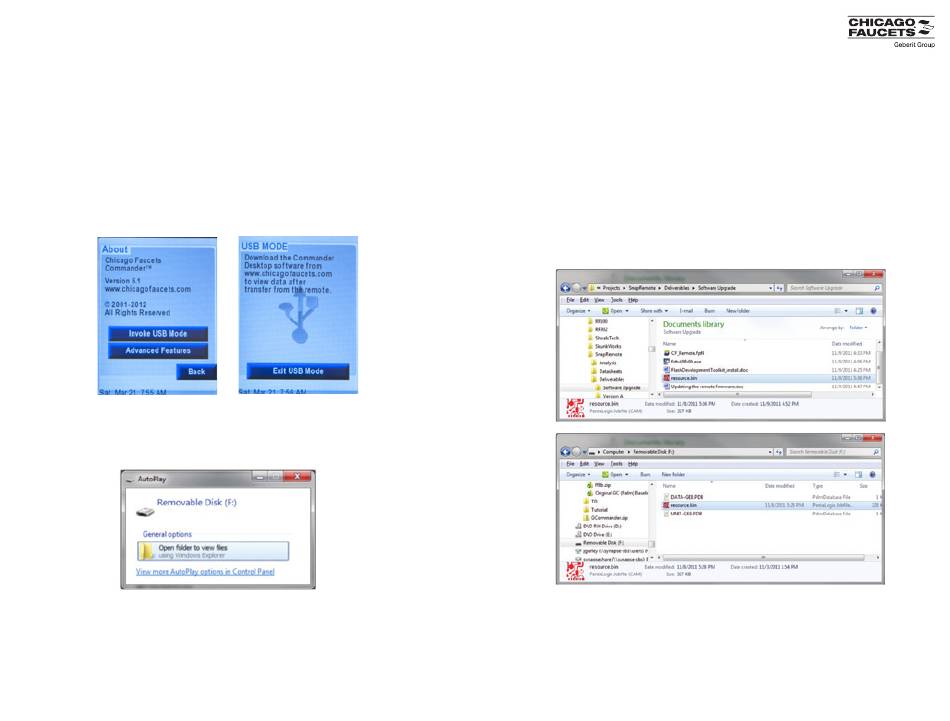

3.3. Tap "About" and then tap "Invoke USB Mode"
Note: Auto-Sleep does not function when
Commander HPU is in "USB Mode".
3.4. Commander should be recognized
as drive in Windows Explorer.
Select "Open folder to view files". Something like this
Special Notice: If this is the first time the device is connected to a particular
PC, you may see a note from Windows saying that it has found new hardware
or new USB device is being installed.
If PC fails to recognize device, unplug and reconnect device, begin step 3 again
OR tap Reset, and begin step 2 again.
Chicago Faucets Commander Handheld Programming Unit User Guide
® ™
(Continued)
3.5 Find the resource.bin file on your PC.
Copy/Paste or drag/drop from the PC to the Commander "Drive"
WARNING:
Copy and paste or drag and drop from your PC only!
Cutting or deleting the existing resource.bin file during the update removes all
graphical data (text, buttons) from the device. Screen will be completely white,
but unit is placed in USB mode. Paste the resource.bin file back to device.
Power down and then power up the device. Graphics are restored.
Note: Do not be alarmed if you do not see an existing resource.bin file
on your Commander device, since the file is normally a Hidden File.
To view the file on your Commander Device, select Folder Options
and select "view hidden files".
3.6 Disconnect Device from PC. Update complete.
Page 8 CF2026 / 07/19
