CHT - Ceiling Hinge Telescopic
Fixing the box (Not needed for option 1)

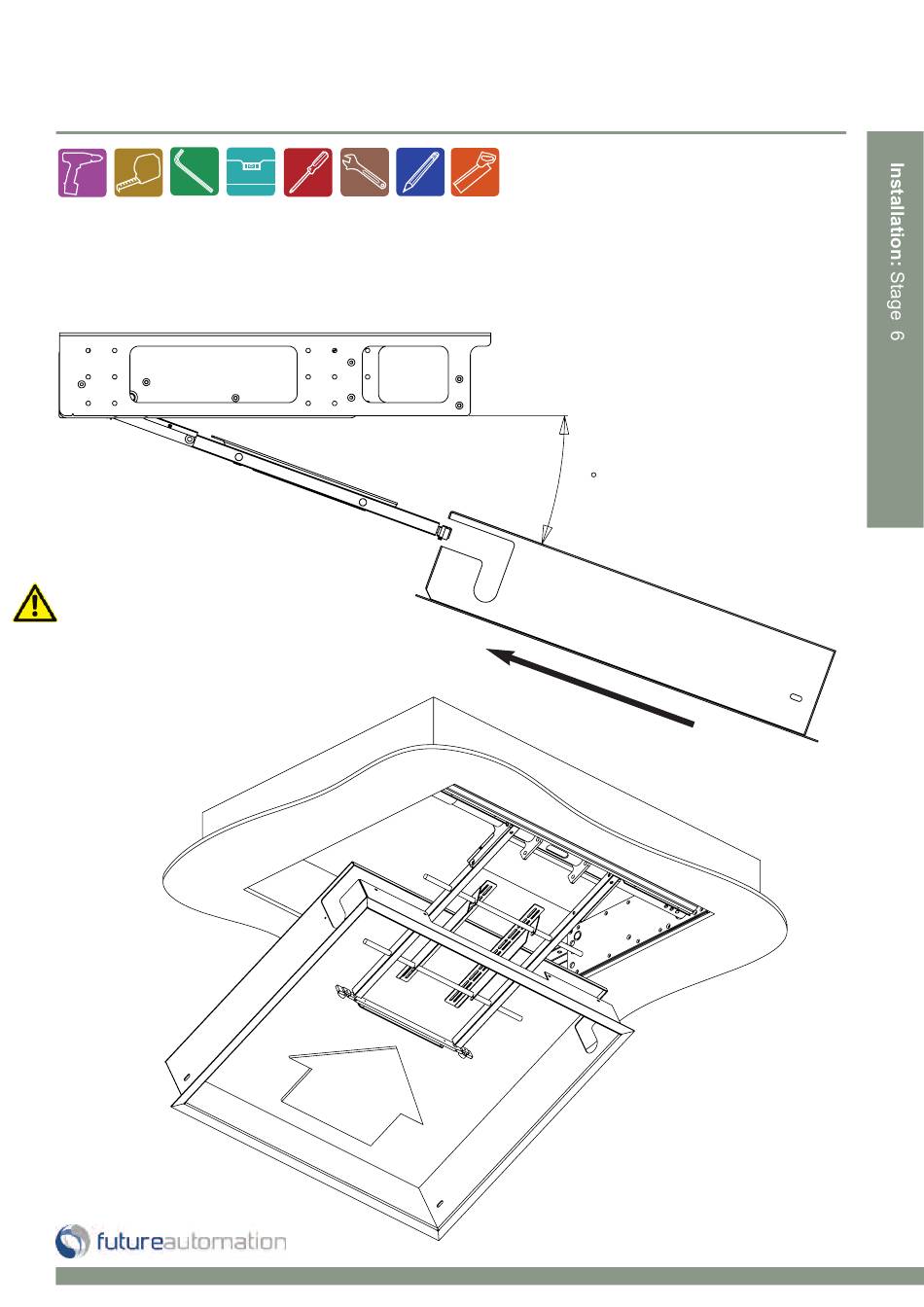

Set the screen frame at about 20 degrees from the up position.
The box can then be lifted into place.
You wont be able to slide the
box on or off with the Main
Tray still on.
Slide box up over screen
mount and hook into place
Page 10 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
20 Approx
When in place secure with the
row of 4 bolts along the back
(M5x25mm) and 2 M8 bolts on
each side as removed previously
