10.3.5.2. Using the Metal Template (Optional Extra)
Using the Metal Template available and the Gate Bracket Pin:
•
Mount the template to the Wall Bracket using the Bracket Pin
•
Rest the spirit level on the template and level the template
•

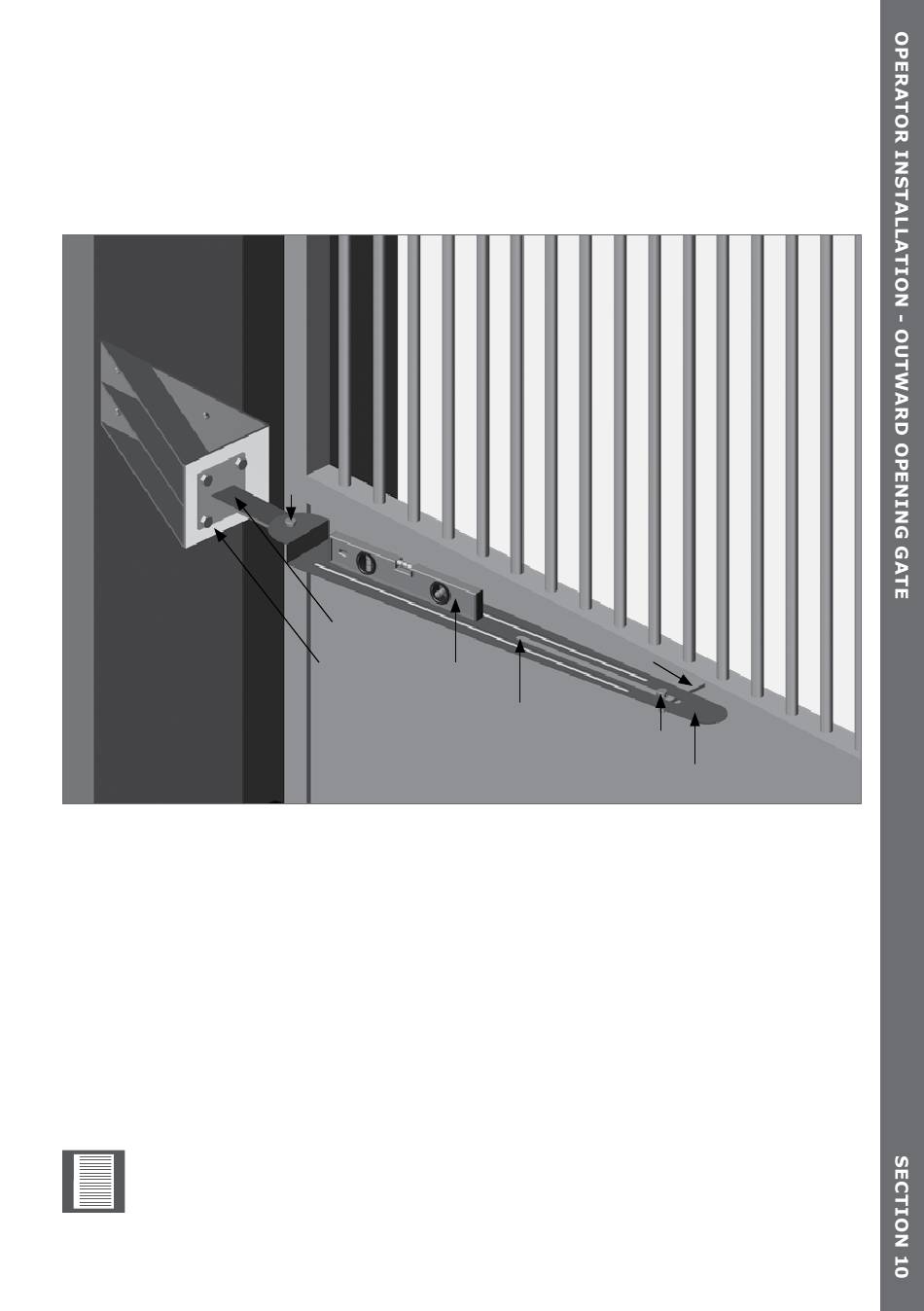

Holding the Gate Bracket underneath the template (as shown in Figure 50), insert the Pin
through the slot in the template and into the Gate Bracket
•
With the gate in the closed position, move the Gate Bracket to the near end of the slot
•
Spot weld the Gate Bracket in place OR make the necessary markings if a bracket has
been made up to fit a non-steel gate
•
To avoid damage it is recommended that the Metal Template be removed before the Gate
Bracket
•
Fix the Gate Bracket onto the gate using the preferred mounting method.
It is advisable to first check that the installation works before permanently fixing
the brackets in place. See Section 10.7.
www.CentSys.com
Pin
Wall
Bracket
Custom
Spirit
Bracket
level
page 49
Gate
Bracket
Near end of
slot
Metal template
FIGURE 50. MOUNT THE GATE BRACKET
Pin
